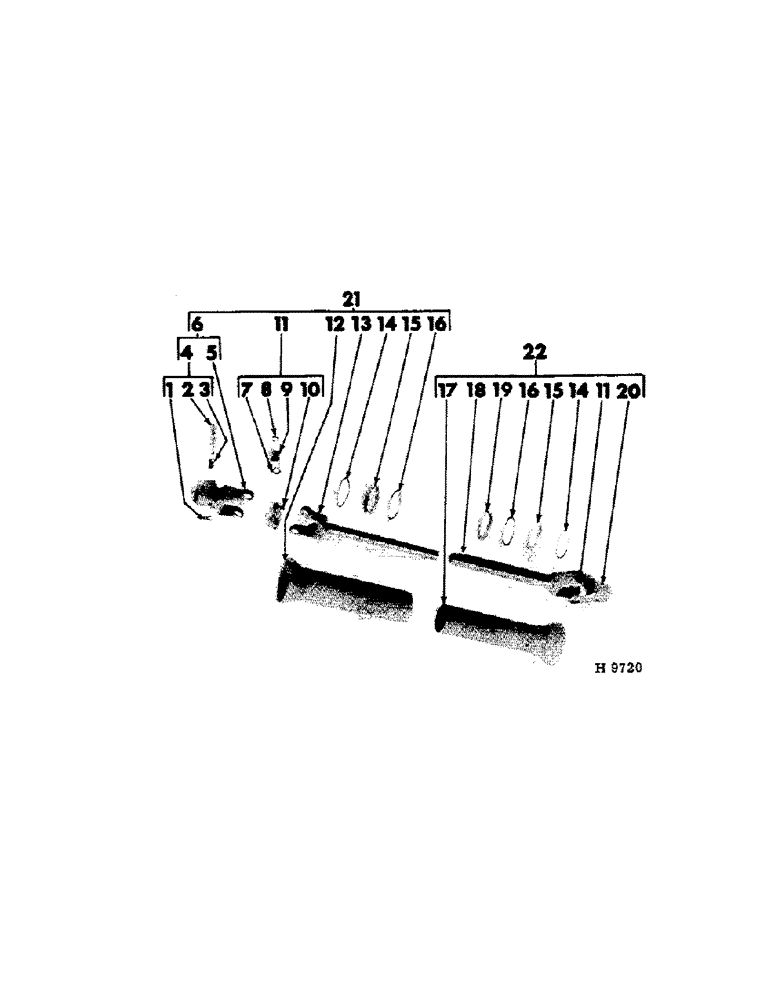

Запчасти Case IH 102 (C-10[A]) - FRONT UNIVERSAL JOINT, 1000 RPM, ROCKWELL, STANDARD

1

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

lock pin

1шт.

2

PIN, yoke lock (order 1-630391R11, pin) (NSS)

1шт.

3

455347R1

VALVE SPRING

SPRING, yoke lock pin

1шт.

4

630391R11

PIN, lock (includes spring, 455347R1 & washer, 661406R1)

1шт.

5

YOKE, front (order 1-613431R91, yoke) (NSS)

1шт.

6

613431R91

YOKE, quick-detachable (includes pin, 630391R11)

1шт.

7

661656R1

OIL SEAL, centre cross cork

8шт.

8

661657R1

RING

centre cross snap

8шт.

9

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

centre cross needle

8шт.

10

CROSS, centre (order 1-659262R91) (NSS)

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

1шт.

11

659262R91

U-JOINT SPIDER

CROSS, centre (parts in bracket)

2шт.

12

613435R1

SHIELD, front outer

1шт.

13

613433R91

YOKE & SHAFT, front

1шт.

14

613436R1

CLAMP

RING, universal snap

2шт.

15

461346R1

BEARING

nylon

2шт.

16

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

universal thrust

2шт.

17

613434R1

SHIELD, rear inner

1шт.

18

613438R91

YOKE & TUBE, rear

1шт.

19

613439R1

BRACKET

BUSHING, tube support

1шт.

20

580036R1

YOKE, threaded rear

1шт.

21

613429R91

JOINT, front (parts in bracket)

1шт.

22

613430R91

JOINT, rear (parts in bracket)

1шт.

B12219

WASHER

rear knuckle

1шт.
