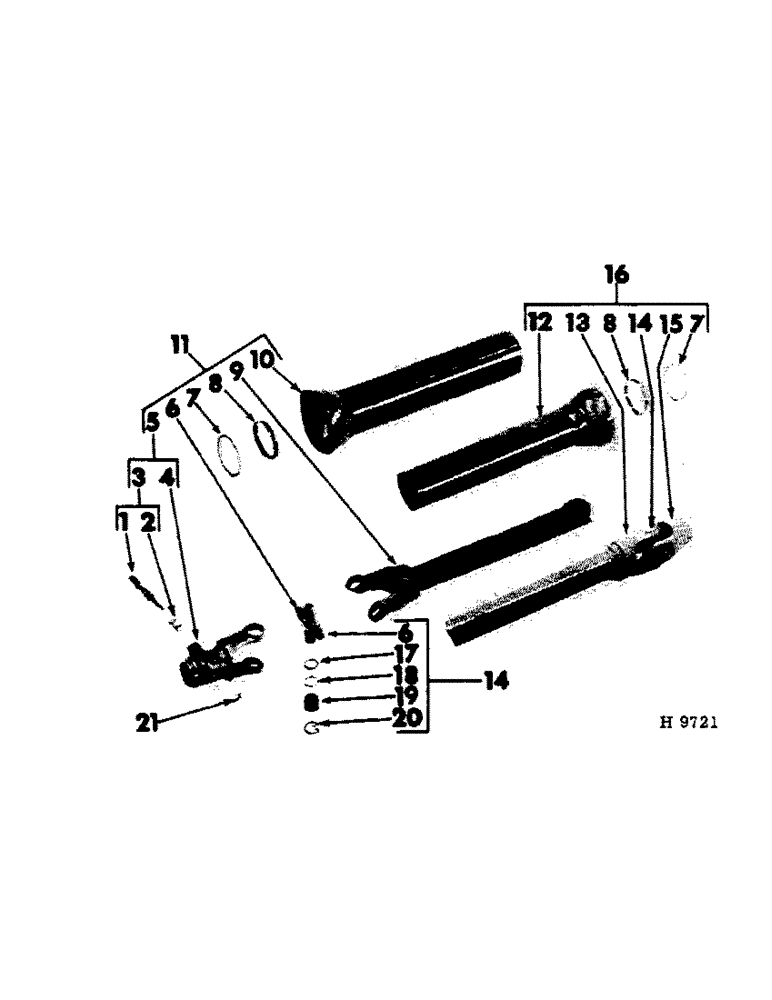

Запчасти Case IH 102 (C-09) - FRONT UNIVERSAL JOINT, 540 RPM, ROCKWELL,STANDARD

1

PIN, lock (order 1-455346R21, pin) (NSS)

1шт.

2

455347R1

VALVE SPRING

SPRING, yoke lock pin

1шт.

3

455346R21

PIN

lock (includes 455347R1 spg, & 661406R1, wash)

1шт.

4

YOKE, front, (order 1-455344R91, yoke) (NSS)

1шт.

5

455344R91

YOKE, quick-detachable (includes pin, 455346R21)

1шт.

6

CROSS, centre (order 1-454740R91)

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

1шт.

7

662589R1

THRUST WASHER

shield thrust

2шт.

8

662598R91

BEARING

shield ball

2шт.

9

613397R91

YOKE & TUBE, front

1шт.

10

619858R91

SHIELD

front outer

1шт.

11

619396R91

JOINT

front (parts w/reference no.'s 1 to 10 inclusive & 14.)

1шт.

12

619859R91

SHIELD

rear inner

1шт.

13

619398R91

SHAFT

YOKE & SHAFT, rear

1шт.

14

454740R91

CROSS

ASSEMBLY, centre composed of: (4) busing 450776R1, (1) cross (NSS), (1) fitting 109460, (4) retainer 450779R1, (4) ring 454741R1, (4) washer 450778R1

1шт.

15

617663R1

YOKE, threaded rear

1шт.

16

619325R91

JOINT

rear (parts in bracket)

1шт.

17

450779R1

RETAINER

cork washer

8шт.

18

450778R1

WASHER

centre cross cork

8шт.

19

450776R1

CAP

BUSHING, centre cross

8шт.

20

454741R1

RING, centre cross snap

8шт.

21

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

front yoke lock pin

1шт.

B12219

WASHER

knuckle rear

1шт.
