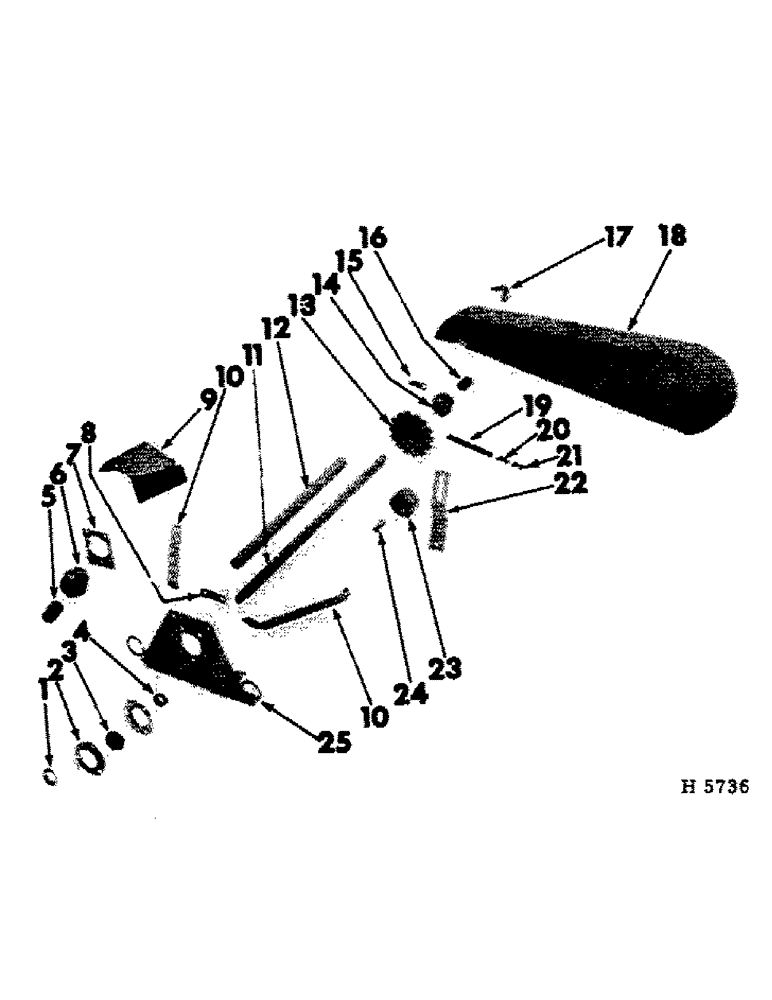

Запчасти Case IH 102 (C-08) - FRONT DRIVE SHAFT

1

B12219

WASHER

joint knuckle

1шт.

2

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, brg (1961 & since)

2шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

455960R91

BALL BEARING

BEARING, front (1961 & since) (use w/Fafnir & New Daparture 555115R11, collar)

1шт.

3

610536R91

BEARING

front (1961 & since) (use w/SKF 610537R11, collar)

1шт.

4

557115R11

COLLAR

COLLAR, brg locking (includes screw, 115321) (1961 & since) (Fafnir & New Departure, use w/455960R91, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

4

610537R11

COLLAR

brg locking (includes screw, 115321) (1961 & since) (SKF use w/610536R91, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

5

619669R91

BEARING ASSY,1.125" ID x 1.503" OD x 2"

front housing (1960)

1шт.

6

619541R91

HOUSING, front brg (1960)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

612801R1

PLATE, front brg (1960)

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

619603R1

PLATE

STRAP, housing stop (1960)

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

607993R1

SHIELD

COVER, PTO shield

1шт.

623066R1

BOLT W/NUT, 3/8 x 1" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

612789R1

BRACE, brg support LH

1шт.

10

612790R1

BRACE, brg support RH

1шт.

623066R1

BOLT W/NUT, 3/8 x 1" cd-pltd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

619552R1

SHAFT, front drive

1шт.

657196R1

PIN

1/4 x 2' coiled-spg

1шт.

Q162

WASHER

WASH, 1-5/32 x 1-3/4 x 16 ga

1шт.

12

619664R1

SHIELD, drive shaft

1шт.

13

617416R1

SPROCKET, 14T drive shaft (540 RPM)

1шт.

13

613315R1

SPROCKET, 18T drive shaft (1000 RPM)

1шт.

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1/4 x 1-1/2" straight

1шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

14

619541R1

CASE

HOUSING, drive shaft rear brg

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 45 degree elbow

1шт.

15

619603R1

PLATE

rear bearing housing stop

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

619699R91

BEARING, shaft rear (opt w/609046R91)

1шт.

16

609046R91

BEARING

shaft rear (opt w/619699R91)

1шт.

17

619581R1

SUPPORT, chain shield lower

1шт.

19572R1

BOLT W/NUT, 3/8 x 1-3/8" cd-pltd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

613801R92

SHIELD

drive chain

1шт.

619885R1

WASH., 11/32 x 3/4 x 16 ga cd-pltd

2шт.

19429R1

BOLT, 5/16 x 7/8" cd-pltd crg

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16" cd-pltd wing

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

CHAIN, drive (1-1/4" extended pitch agricultural) (order 1-569089R91, 10 ft chain, reduce to 69 links, add 1-456929R91, offset link & 1-456980R91, connecting link)

1шт.

20

456929R91

CHAIN LINK

LINK, drive chain offset

1шт.

1360D

PIN, offset link

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb pkg

1шт.

21

456980R91

CHAIN LINK

LINK, drive chain connecting

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb pkg

1шт.

22

612779R1

ARM, chain tightener

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

612859R1

ROLLER

chain tightener

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

24

612794R1

SPACER

BUSHING, chain tightener roller

1шт.

25

612890R91

SUPPORT, shaft brg (1960 w/rope)

1шт.

25

613589R91

SUPPORT, shaft brg (1961 & since w/rope)

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8 cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

613259R91

SUPPORT, shaft brg (1960 w/ lever)

1шт.

25

613589R91

SUPPORT, shaft brg (1961 & since w/lever)

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
