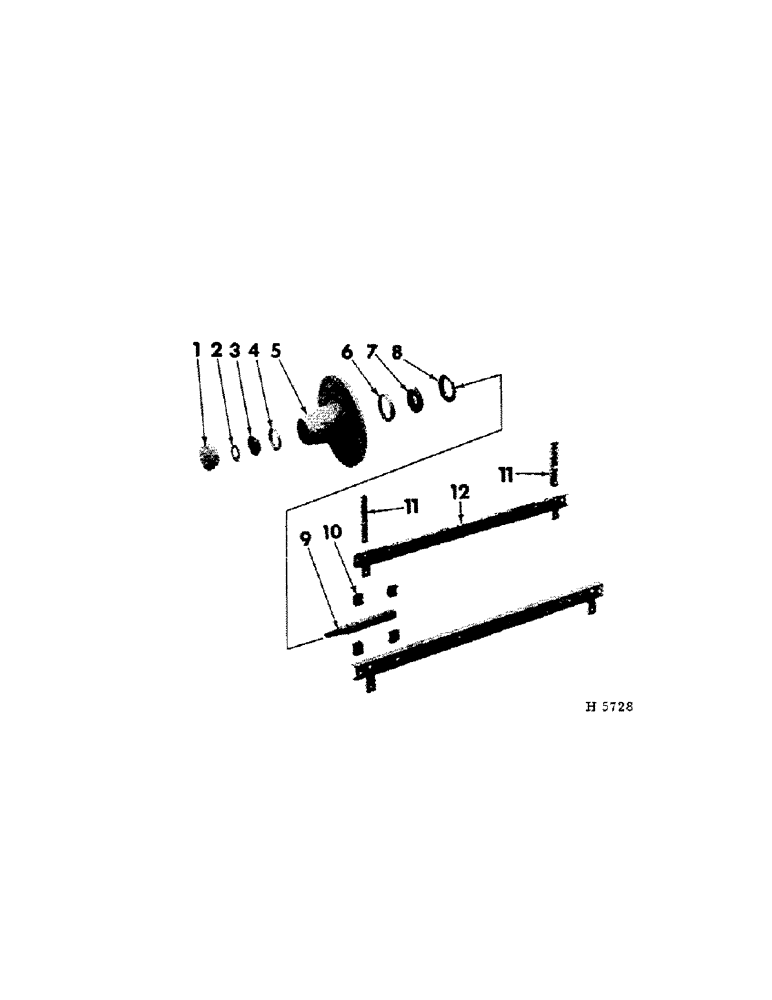

Запчасти Case IH 102 (C-06) - AXLE

1

612884R1

HUB CAP

CAP, hub

2шт.

2

612889R1

WASHER

axle spindle

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, spindled outer brg

2шт.

4

651817R1

BEARING CUP

CUP, spindle outer brg

2шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

5

612739R1

HUB, wheel

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel hub

16шт.

6

663558R1

BEARING CUP

CUP, spindle inner brg

2шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, spindle inner brg

2шт.

8

459919R91

SEAL

OIL SEAL, axle spindle

2шт.

9

612767R1

AXLE, wheel

2шт.

612634R1

NUT

7/8" sltd

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

10

612726R1

CLAMP, wheel axle

8шт.

17813R1

BOLT W/NUT, 1/2 x 5" mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

612853R1

ANGLE, axle channel support LH

1шт.

11

612854R1

ANGLE, axle channel support RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

612858R11

CHANNEL, axle

2шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

4шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

W/NUT, 1/2 x 1-1/8" mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.
