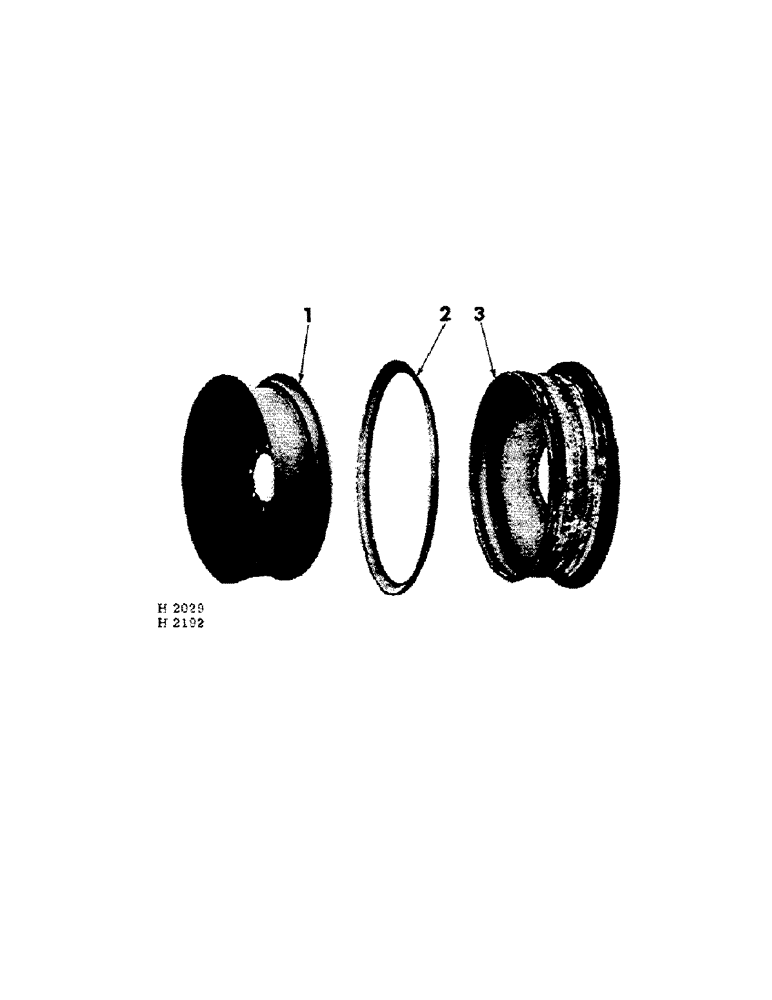

Запчасти Case IH 102 (C-06[A]) - PNEUMATIC TIRE AND WHEEL

1

618982R91

WHEEL

(W7 - 20 for up to & including 7.50 x 20" used truck tires)

1шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

16шт.

2

617659R1

RING, wheel rim side (Electric or Motor Wheel Co.)

2шт.

2

594156R1

FLANGE

RING, wheel rim side (Sankey & Sons Co.)

2шт.

3

617624R91

WHEEL, (includes 617659R1 or 594156R1 ring) (special) (for 20" truck tires up to and including 9.00 x 20")

1шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

16шт.

TIRE & TUBE, (7.50 x 20" 4 ply implement type)

1шт.
