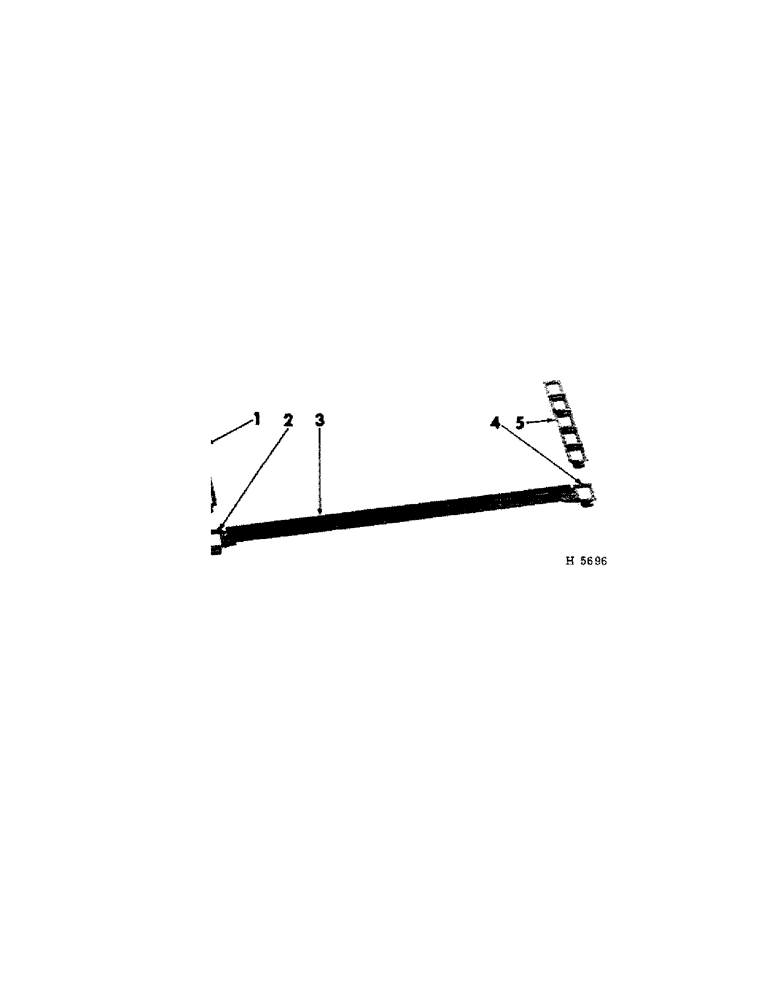

Запчасти Case IH 101 (B-04[A]) - APRON CHAIN

1

CHAIN, apron RH (order 2-CS 67 10 ft. chains reduce the chains to a total of 76 links & add 11-618921R1 attaching links)

1шт.

2

618921R1

LINK

chain attaching RH

11шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

11шт.

3

619634R11

BAR

CROSSMEMBER, apron (includes links, 618920R1 & 618921R1 & 106915, rivets)

11шт.

4

618920R1

LINK

chain attaching LH

11шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

11шт.

5

CHAIN, apron LH (order 2-CS 67 10 ft chains, reduce the chains to a total of 76 links & add 11-618920R1 attaching links)

1шт.
