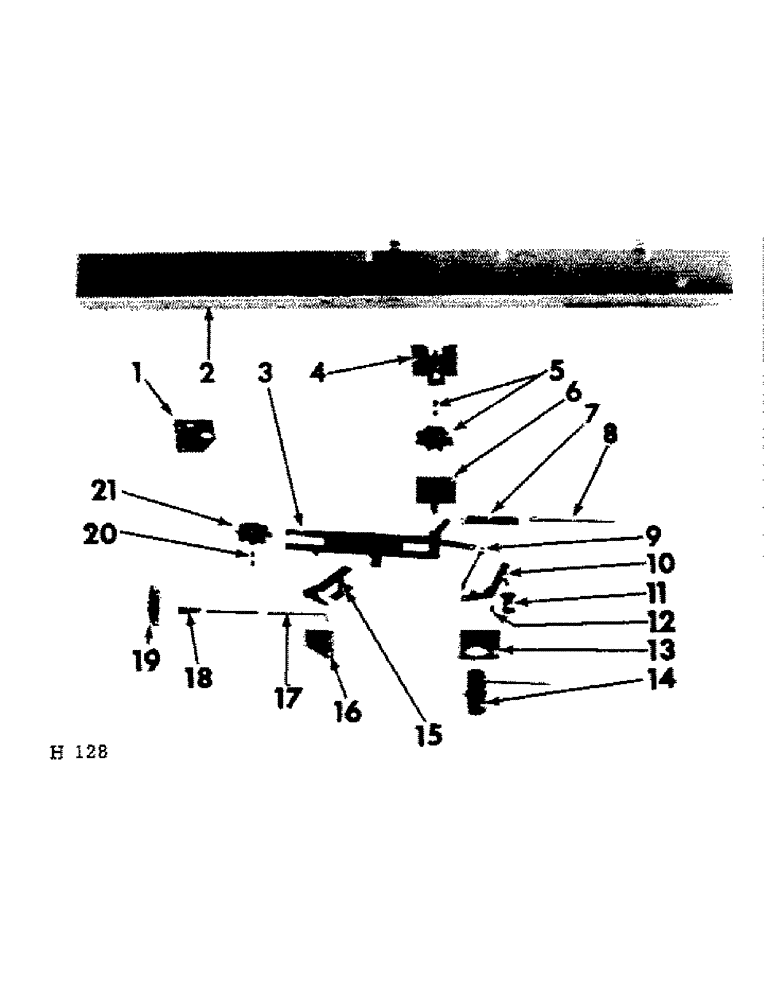

Запчасти Case IH 101 (B-17) - DECLUTCH CHAIN MECHANISM, REGULAR 1966 AND SINCE

1

591675R1

STRIP, adjusting rod guide

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

591706R11

SHIELD, main drive

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 5/16 x 3/4" cd-pltd crg

1шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

W/NUT, 5/16 x 7/8" cd-pltd crg

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4" cd-pltd crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

591690R91

ARM, chain lifting upper idler

1шт.

271293

PULLEY

LUB-FTG, 5/16"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT W/NUT, 3/8 x 3/4" cd-pltd mach

1шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

W/NUT, 1/2 x 3-1/4" cd-pltd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

591687R1

BRACKET, main chain tightener

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4" cd-pltd crg

2шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

W/NUT, 5/16 x 1-1/2" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

592405R11

SPROCKET, chain tightener (includes 608694R1, bushing)

1шт.

Not part of conversion pkg.

1шт.

608694R1

SPROCKET INNER BUSHING

1шт.

Not part of conversion pkg.

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

Not part of conversion pkg.

1шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT W/NUT, 1/2 x 3" cd-pltd crg

1шт.

Not part of conversion pkg.

1шт.

178374R1

WASHER

LK-WASH, 17/32 x 1-1/4 x 16 ga cd-pltd

1шт.

Not part of conversion pkg.

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

WASH, 17/32 sq-hole x 1-1/4 x 11 ga cd-pltd

1шт.

Not part of conversion pkg.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Not part of conversion pkg.

1шт.

6

591688R11

BRACKET, chain lift arm

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT W/NUT, 5/16 x 1-1/4" cd-pltd crg

2шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

W/NUT, 5/16 x 1-1/2" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

591715R1

WASHER

WASH, 1-1/32 x 1-1/2 x 16 ga cd-pltd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

7

23488S

SPRING

lifting arm adjuster

1шт.

8

591697R1

EYEBOLT, lifting arm adjuster

1шт.

120376

NUT,5/16"-18, G5

2шт.

9

591698R1

ROD, lifting arm

1шт.

608701

WASH, 21/32 x 1-1/4 x 16 ga cd-pltd

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

10

591699R91

ARM, chain lifting lower

1шт.

591705R1

BOLT, 3/8 x 2-1/8" type 2 cd-pltd crg

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

178372R1

WASHER

WASH, 13/32 x 1-1/4 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

3329S

ROLLER

lower lifting arm

1шт.

591714R1

WASHER

WASH, 23/32 x 1-1/4 x 16 ga cd-pltd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

591704R1

BUSHING, lower

1шт.

13

613014R1

BLOCK

BRACKET, main axle bearing

1шт.

Not part of conversion pkg.

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

14

612736R2

HOUSING, axle bearing

1шт.

187394

CONNECTOR, ELEC,1/8" NPT, Fem

UNION, lubricating pipe

1шт.

Not part of conversion pkg.

1шт.

431489

NIPPLE, 1/8" NF x 8-1/2" Nipple, 1/8" NPT x 8 1/2"

1шт.

Not part of conversion pkg.

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 45 degree elbow

1шт.

15

591678R91

ARM, upper arm pivot

1шт.

271293

PULLEY

LUB-FTG, 5/16"

1шт.

591715R1

WASHER

WASH, 1-1/32 x 1-1/2 x 16 ga cd-pltd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

16

591685R11

BRACKET, upper idler arm pivot

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" no. 3 cd-pltd plow

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT W/NUT, 3/8 x 1" cd-pltd crg

1шт.

619856R1

WASHER

WASH, 13/32 x 1 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

17

591676R1

ROD, lift arm

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

117825

CLEVIS, lift arm rod

1шт.

M780-1/2

PIN, 7/16 x 1-5/16" std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

19

591677R1

SUPPORT, rod guide

1шт.

19577R1

BOLT

W/NUT, 5/16 x 1-1/8" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

608695R1

BUSHING, sprocket bolt outer

2шт.

Not part of conversion pkg.

1шт.

21

592405R11

SPROCKET, chain tightener (includes 608694R1, bushing)

1шт.

Not part of conversion pkg.

1шт.

608694R1

SPROCKET, inner bushing

1шт.

Not part of conversion pkg.

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

Not part of conversion pkg.

1шт.

17650R1

BOLT W/NUT, 1/2 x 3-1/4" mach

1шт.

Not part of conversion pkg.

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

1шт.

Not part of conversion pkg.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Not part of conversion pkg.

1шт.

608694R1

BUSHING, chain tightener sprocket inner

2шт.

Not part of conversion pkg.

1шт.
