Запчасти Case IH 101 (B-14) - REAR ENDGATE DRIVE (LIQUID MANURE)

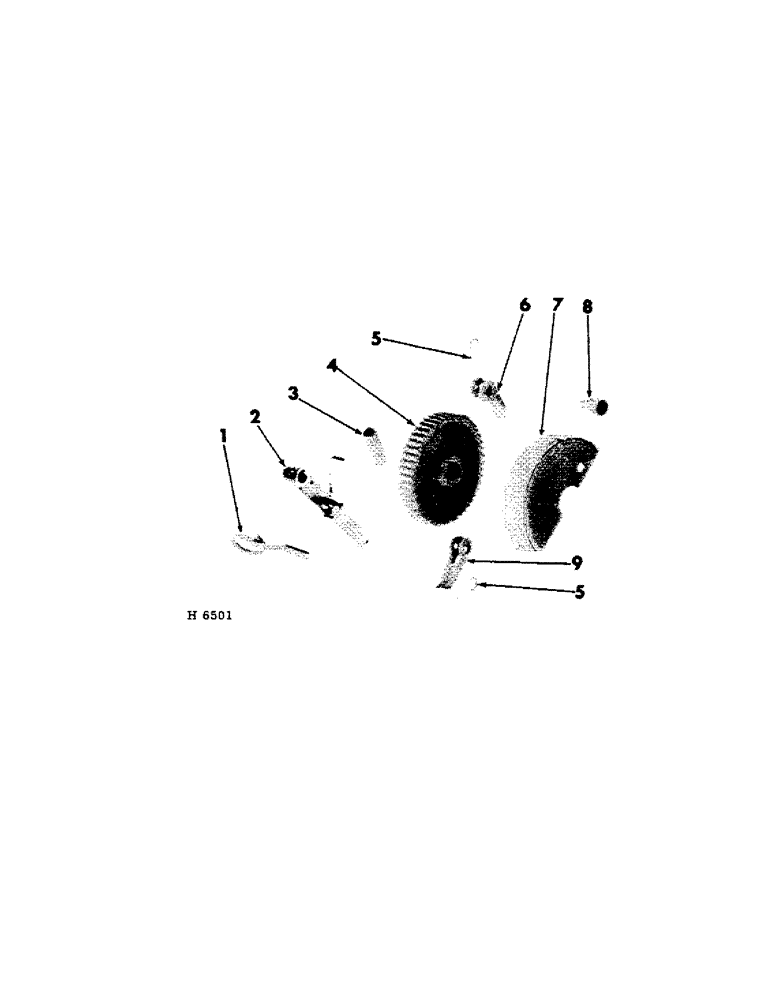

Схема запчастей Case IH 101 - (B-14) - REAR ENDGATE DRIVE (LIQUID MANURE)

Артикул

Название

Примечание

Количество

1

612934R11

GUIDE

trip lever rope

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

612936R11

LEVER, endgate trip, Serial Range: (prior-1964)

1шт.

2

608413R91

LEVER, endgate trip (1964 & since)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

350515R1

WASHER

WASH, 21/32 x 1 x 16 ga

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

3

519146R1

SPRING, trip lever

1шт.

4

612931R1

WHEEL, 50T ratchet

1шт.

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

5

612951R1

SPRING

ratchet pawl

2шт.

6

608412R91

PAWL

ratchet wheel upper

1шт.

7

613855R11

SHIELD, endgate ratchet wheel

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

612949R1

SPACER, ratchet pawl upper

1шт.

16785R1

BOLT, 7/16 x 3-1/4" dld crg

1шт.

350515R1

WASHER

WASH, 21/32 x 1 x 16 ga

2шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

1шт.

272070

TUBE

7/16" slt

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

616361R1

PAWL

ratchet wheel lower

1шт.

ROPE, 3/8" sisal x 17-1/2 ft (dealer to supply from bulk stock)

1шт.

Выбрано товаров: 25
