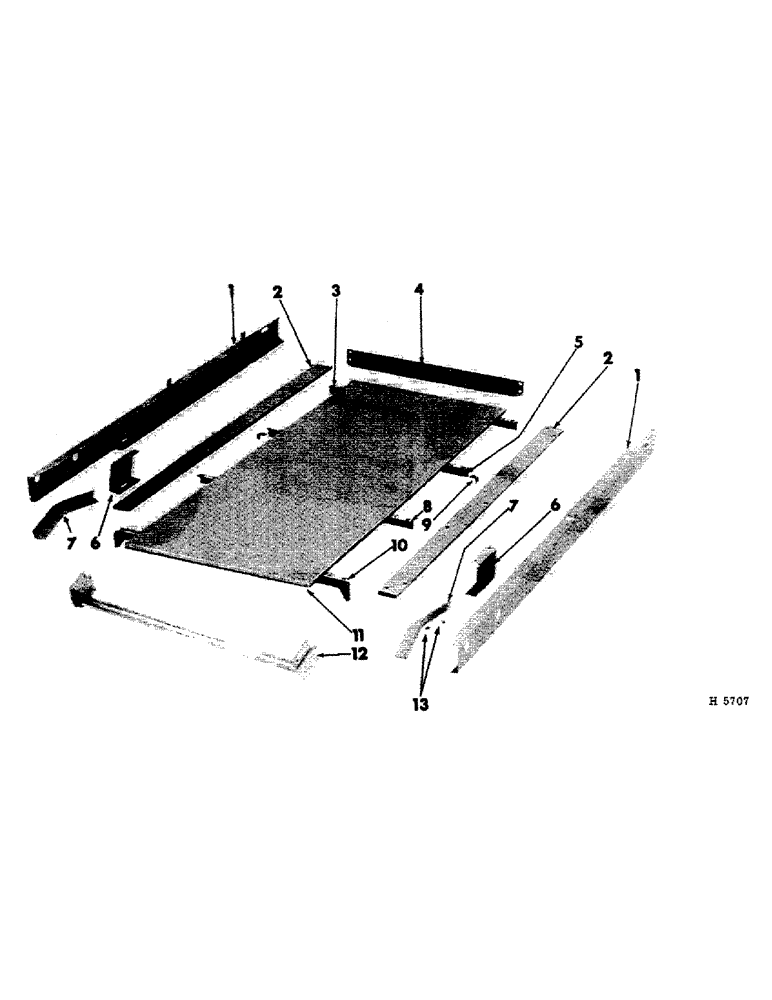

Запчасти Case IH 101 (B-02) - SPREADER BOX BOTTOM

1

612816R4

CHANNEL, bottom side LH

1шт.

1

612817R4

CHANNEL, bottom side RH

1шт.

2

612861R1

BOARD, bottom outer LH

1шт.

2

612862R1

BOARD, bottom outer RH

1шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd

6шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

W/NUT, 5/16 x 1-1/4" crg

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

3

612840R1

MEMBER, first cross

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

612839R2

MEMBER, front cross

1шт.

623072R1

BOLT W/NUT, 1/2 x 1" cd-pltd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

612841R1

MEMBER, second cross

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

612795R1

BRACKET, third cross member LH

1шт.

6

612796R1

BRACKET, third cross member RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

2шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

11002VA

WASHER

WASH, 17/32 x 7/8 x 16 ga

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

ANGLE, apron raising LH & RH (prior to 1964) (order 1-619675R1 or 1-619676R1, angle & 2-612714R1 spacers)

1шт.

7

619675R1

ANGLE, apron raising LH (1964 & since)

1шт.

7

619676R1

ANGLE, apron raising RH (1964 & since)

1шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

W/NUT, 3/8 x 1-1/2" no. 3 plow

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

612842R1

MEMBER, third cross

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

613105R1

BRACKET, cross member (4 - prior to 1964, 2-1964 and since)

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 7/16"-14 x 1", G2, Full Thd

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

10

612843R1

MEMBER, fourth cross, Serial Range: (prior-1964)

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

609360R11

MEMBER, fourth cross (1964 & since)

1шт.

15004R1

BOLT

W/NUT, 1/2 x 7/8" crg

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4" cd-pltd type 2

4шт.

231-1448

NUT,1/2"-13, GB

LK-NUT, 1/2" cd-pltd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

612860R1

BOARD, bottom

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

W/NUT, 5/16 x 1-1/4" crg

20шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

12

612865R21

BRACE, box rear, Serial Range: (prior-1964)

1шт.

17427R1

BOLT W/NUT, 7/16 x 1" mach

4шт.

19757R1

BOLT W/NUT, 7/16 x 1-1/8" cd-pltd mach

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

13

612714R1

SPACER

apron angle (1964 & since)

1шт.
