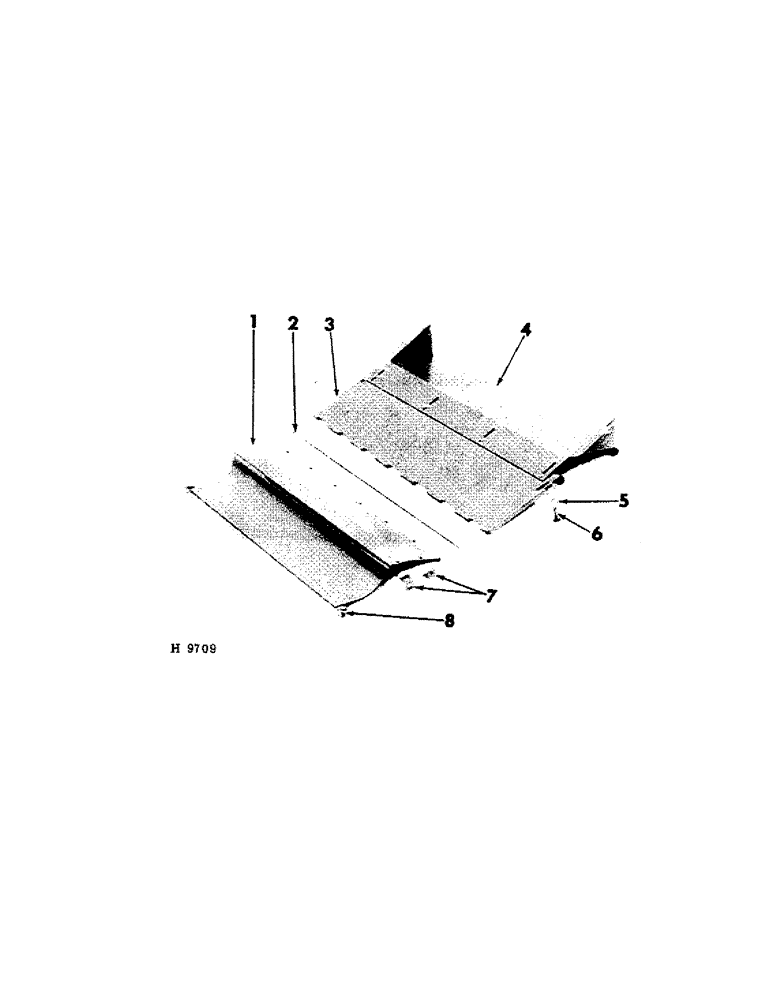

Запчасти Case IH 101 (B-14[B]) - REAR PAN

1

BOTTOM, pan fixed (prior to 1963 order 1 - 607478R21, bottom; 2 611570R1, brackets; 2 - PO11230, spacers plus attaching hardware w/no.'s 1 & 4)

1шт.

1

607478R21

BOTTOM, pan fixed (1963 & since)

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

W/NUT, 3/8 x 3/4" mach

4шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

2

611569R1

ROD, hinged pan

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

3

611572R3

BOTTOM, hinged pan

1шт.

4

607481R2

EXTENSION, hinged bottom

1шт.

19416R1

BOLT

W/NUT, 5/16 x 3/4" cd-pltd crg

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

454502R1

LATCH

hinged bottom

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q1504

WASHER

WASH, 13/32 x 7/8 x 16 ga

2шт.

6

M296

SPRING

hinged bottom latch

2шт.

7

611570R1

BRACKET, pan support

4шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

PO11230

SPACER,3/8" Pipe x .406"

fixed pan

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
