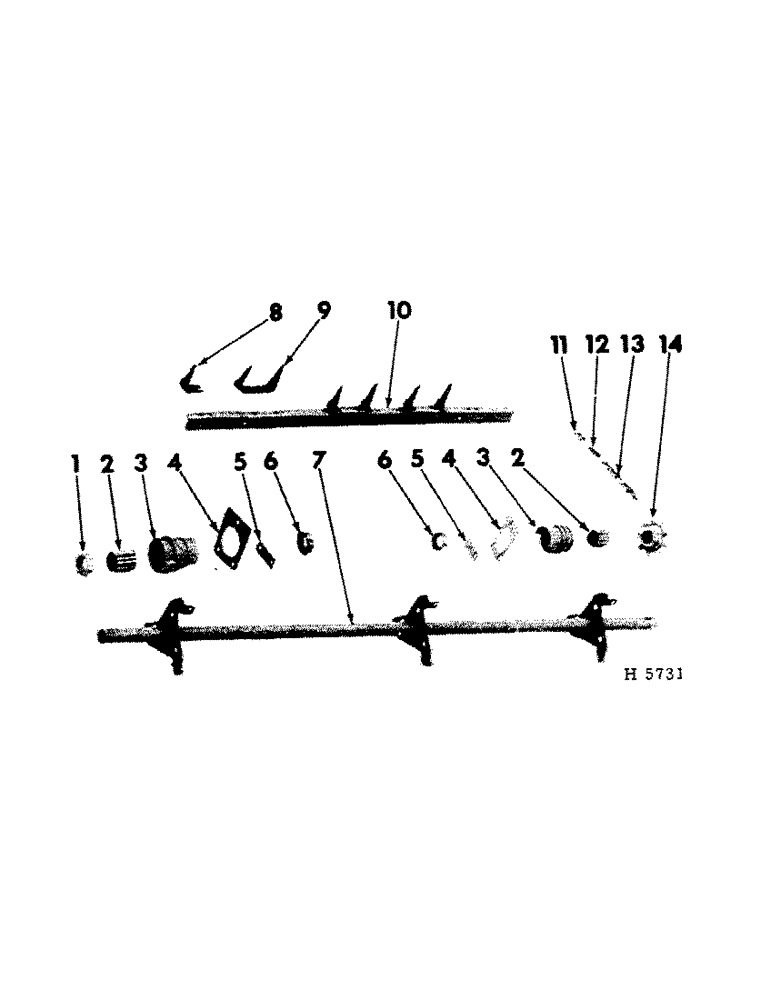

Запчасти Case IH 101 (B-13) - UPPER BEATER
№
Артикул
Название
Примечание
Количество
1
612866R1
BUSHING
COLLAR, shaft LH
1шт.
19479R1
PIN,1/4" x 2", Coiled
1шт.
2
612926R91
BEARING, shaft (opt w/612927R91, brg)
1шт.
2
612927R91
BEARING, shaft (opt w/612926R91, brg)
1шт.
3
612722R1
HOUSING, shaft brg
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
4
612798R1
PLATE, shaft inner support
2шт.
19417R1
BOLT
W/NUT, 3/8 x 1" cd-pltd crg
4шт.
19480R1
BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
5шт.
5
619603R1
PLATE
STRAP, bearing housing stop
2шт.
19417R1
BOLT
W/NUT, cd-pltd crg
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
6
612867R1
COLLAR
beater shaft inner
2шт.
613971R1
SCREW, 3/8 x 5/16" hdls knurled cup-pt set
4шт.
7
612754R11
SHAFT, upper beater
1шт.
Q121
WASHER
WASH, 1-9/32 x 2 x 16 ga
1шт.
8
617507R1
TOOTH, single LH
2шт.
9
617506R1
TOOTH
double
19шт.
106915
RIVET,Tr Hd, 5/16" x 7/8"
5/16 x 7/8" truss-hd
42шт.
10
612891R91
CROSSMEMBER, no. 1 (includes rivets, 106915 & teeth, 617506R1 & 617507R1)
1шт.
10
612892R91
CROSSMEMBER, no. 2 (includes rivets, 106915 & teeth, 617506R1 & 617507R1)
1шт.
10
612893R91
CROSSMEMBER, no. 3 (includes rivets 106915 & teeth, 617506R1)
1шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
W/NUT, 3/8 x 7/8" cd-pltd type 2
9шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
9шт.
11
456980R91
CHAIN LINK
LINK, chain connecting
1шт.
1751D
PACKAGE
C-PIN, 1/4 lb. pkg
1шт.
12
456929R91
CHAIN LINK
LINK, chain offset
2шт.
1360D
PIN, offset link
2шт.
1751D
PACKAGE
C-PIN, 1/4 lb. pkg
1шт.
13
CHAIN, upper beater drive (1-1/4" extended pitch agricultural) (order 1-569089R91, 10 ft chain, reduct to 43 links, add 2 - 456929R91 offset links & 1 - 456980R91, connecting link)
1шт.
14
612724R1
SPROCKET, 9T beater drive
1шт.
19479R1
PIN,1/4" x 2", Coiled
1шт.
117977
WOODRUFF KEY
KEY, 5/16 x 1" Woodruff
1шт.
Выбрано товаров: 34
