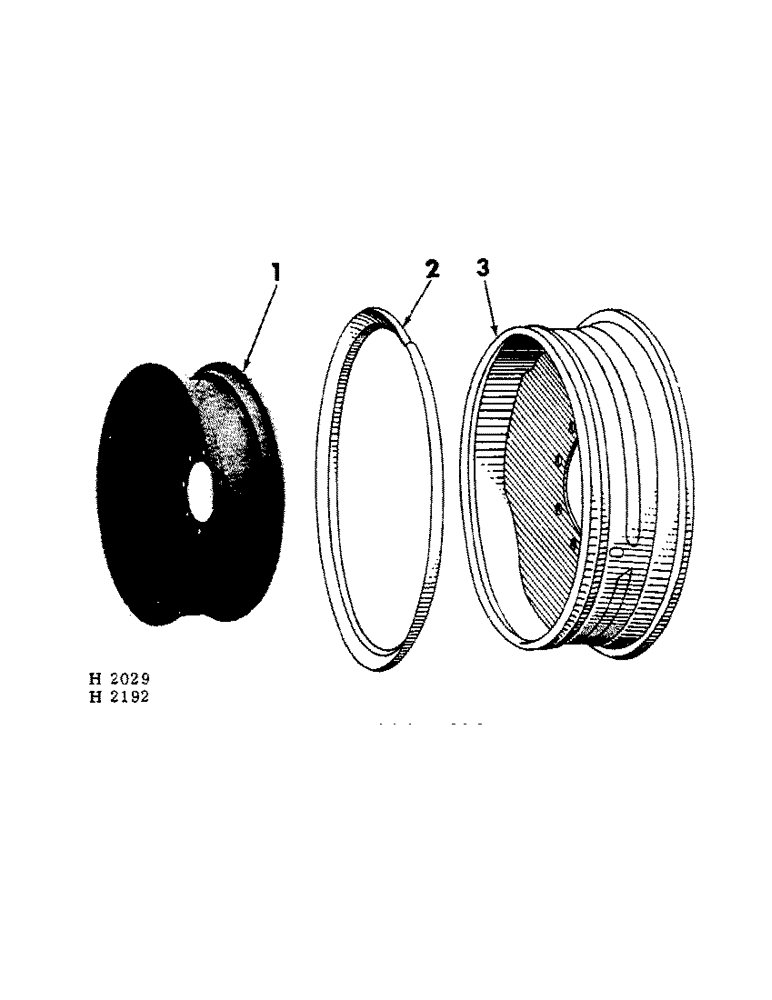

Запчасти Case IH 101 (B-12[A]) - PNEUMATIC TIRE AND WHEEL

1

618982R91

WHEEL

(W7-20 for up to & including 7.50 x 20" tires)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

WHEEL BOLT

16шт.

1

617623R91

WHEEL, (W24 for 7.50 x 24" or 9.00 x 24" tires) (for special)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

WHEEL BOLT

16шт.

2

617659R1

RING, wheel rim side (electric or Wheel Motor Co.)

2шт.

2

594156R1

FLANGE

RING, wheel rim side (Sankey & Sons Co.)

1шт.

3

617624R91

WHEEL, (includes 617659R1 or 594156R1 ring) (for 20" truck tires up to and including 9.00 x 20")

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

WHEEL BOLT

16шт.

TIRE & TUBE, (7.50 x 24" 4 ply traction type)

2шт.

TIRE & TUBE, (7.50 x 20" 4 ply traction type)

2шт.
