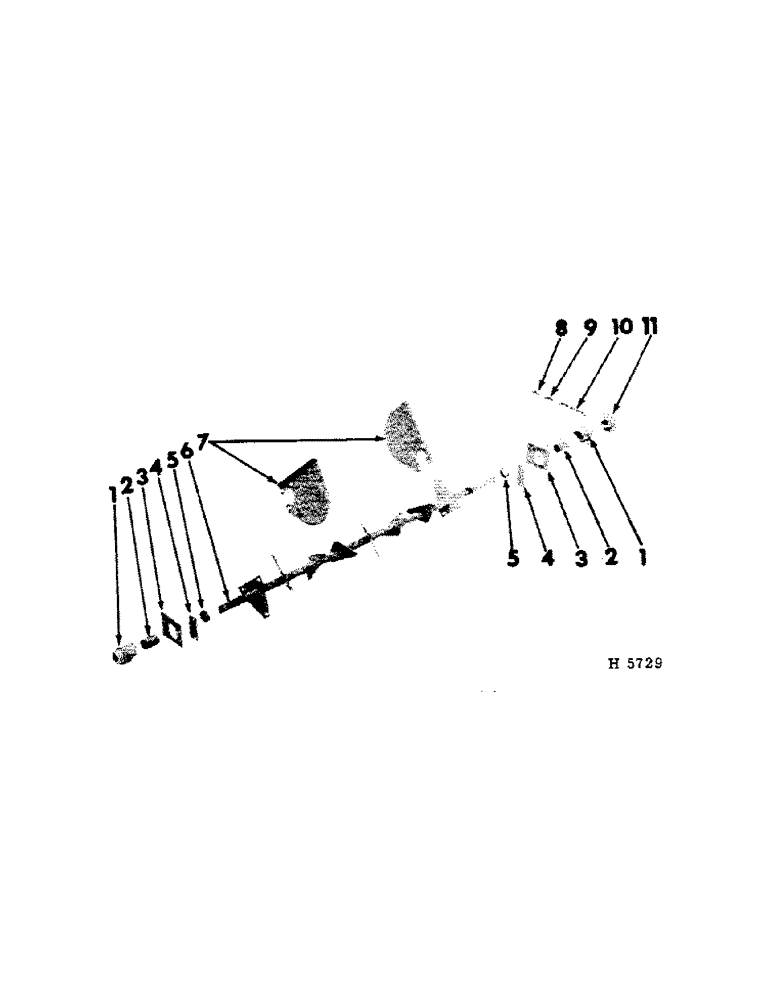

Запчасти Case IH 101 (B-11) - WIDESPREAD, PADDLE TYPE, REGULAR

1

612916R1

HOUSING

shaft brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

2

612922R1

BUSHING

BEARING, widespread shaft

2шт.

3

612791R1

BLOCK

SUPPORT, brg housing

2шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

612797R1

STRIP

PLATE, brg housing stop

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

612567R1

COLLAR, widespread shaft

2шт.

613971R1

SCREW, 3/8 x 5/16" hdls knurled-cup-pt. set

4шт.

9

612923R91

SHAFT, widespread paddle

1шт.

Q3484

WASHER

WASH, 1-9/32 x 1-7/8 x 16 ga

2шт.

Q121

WASHER

WASH, 1-9/32 x 2 x 16 ga

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

7

612920R1

PADDLE, widespread LH

5шт.

7

612921R1

PADDLE, widespread RH

5шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

26шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg (center)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

30шт.

8

456929R91

CHAIN LINK

LINK, drive chain offset

2шт.

1360D

PIN, offset link

2шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg

1шт.

9

456980R91

CHAIN LINK

LINK, drive chain connecting

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg

1шт.

10

CHAIN, widespread drive (1-1/4" extended pitch agricultural) (order 1-569089R91 10 ft chain, reduce to 49 links, add 2 - 456929R91, offset links & 1-456980R91 connecting link)

1шт.

11

612915R1

SPROCKET ASSY.

SPROCKET, 9T widespread driven

1шт.

619720R1

KEY,5/16" Sq x 1 1/8", Par

5/16 x 5/16 x 1-1/8" straight

1шт.
