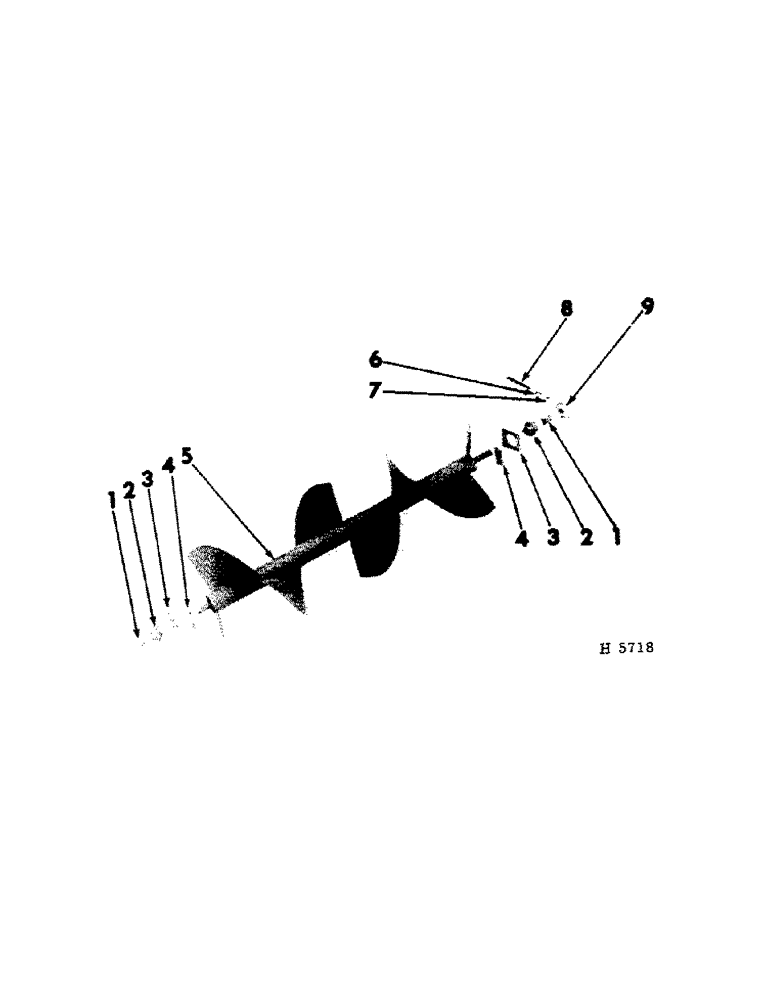

Запчасти Case IH 101 (B-11[A]) - WIDESPREAD, SPIRAL TYPE, SPECIAL

1

619669R91

BEARING ASSY,1.125" ID x 1.503" OD x 2"

shaft (opt w/609046R91)

1шт.

1

609046R91

BEARING

shaft (opt w/619669R91)

1шт.

2

619541R1

CASE

HOUSING, shaft brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

612791R1

BLOCK

SUPPORT, bearing housing

2шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

612797R1

STRIP

PLATE, bearing housing stop

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

612912R91

WIDESPREAD, spiral

1шт.

Q162

WASHER

WASH, 1-5/32 x 1-3/4 x 16 ga

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

456929R91

CHAIN LINK

LINK, drive chain offset

2шт.

1360D

PIN, offset link

2шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg

1шт.

7

456980R91

CHAIN LINK

LINK, drive chain connecting

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg

1шт.

8

CHAIN, widespread drive (1-1/4" extended pitch agricultural) (order 1-569089R91 10 ft chain, reduce to 49 links, add 2-456929R91, offset links & 1-456980R91, connecting link)

1шт.

9

619535R1

SPROCKET ASSY.

SPROCKET, 9T widespread driven

1шт.

619720R1

KEY,5/16" Sq x 1 1/8", Par

5/16 x 5/16 x 1-1/8" straight

1шт.
