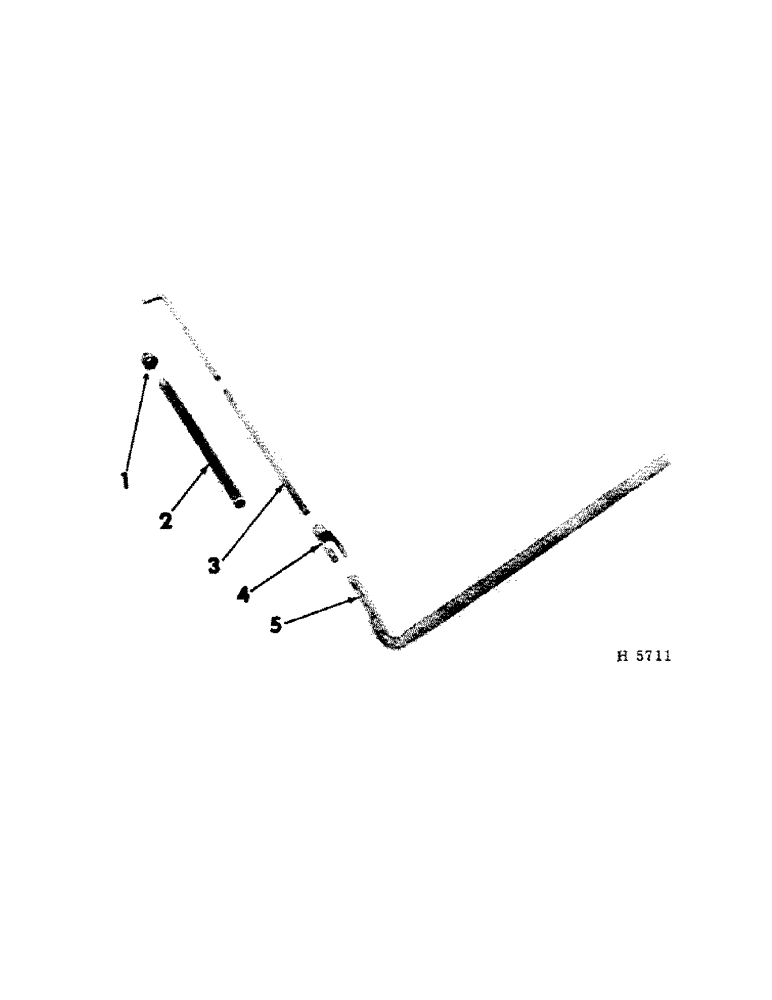

Запчасти Case IH 101 (B-10[A]) - FEED CONTROL ROD

1

612868R1

COLLAR, feed control rod

1шт.

83-1255

SET SCREW,Hex Soc, 1/4"-20 x 5/16"

SCREW, 1/4 x 5/16" hdls-cup-pt set

1шт.

2

612871R1

SPRING

feed control rod

1шт.

3

612765R1

ROD, feed control

1шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

2шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

2шт.

4

117825

CLEVIS, feed control rod

1шт.

M780-1/2

PIN, 7/16 x 1-5/16" std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

612752R1

ROD, rope adjusting RH

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

Q3501

WASHER

WASH, 25/32 x 1-1/4 x 16 ga

1шт.

Q3501

WASHER

WASH, 25/32 x 1-1/4 x 16 ga

1шт.

5

613268R1

ROD, lever adjusting RH

1шт.

Q3501

WASHER

WASH, 25/32 x 1-1/4 x 16 ga

1шт.
