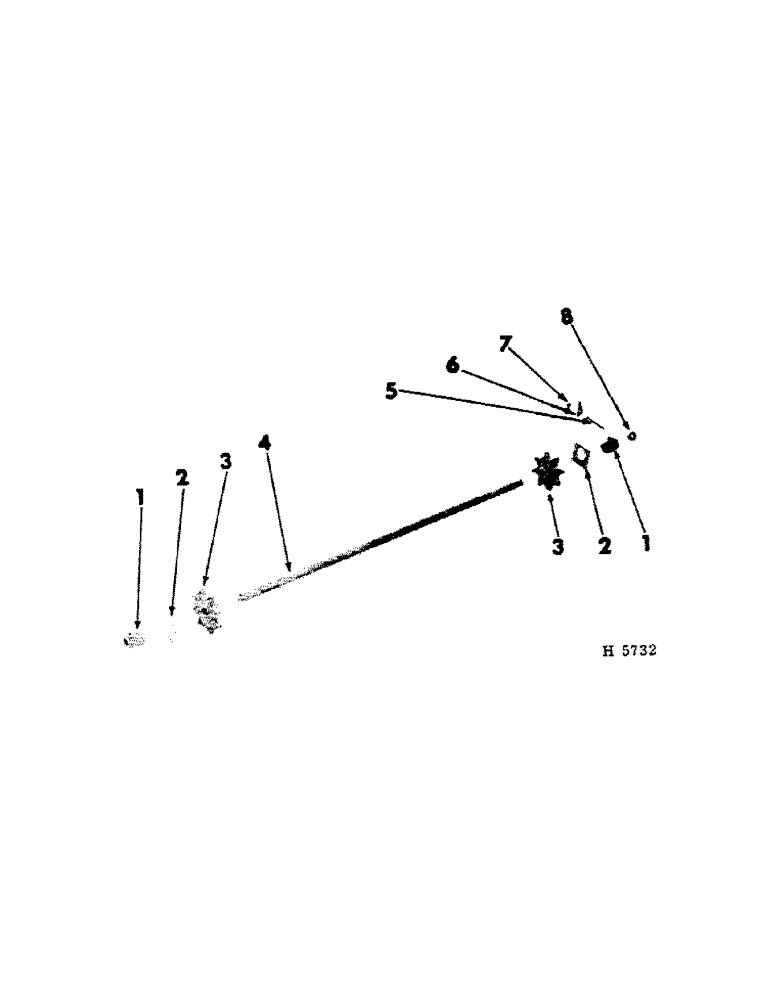

Запчасти Case IH 101 (B-09[A]) - REAR APRON SHAFT

1

613158R1

BEARING

apron shaft

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

LUB-FTG, 1/8" - 30 degree elbow (LH)

1шт.

2

612768R1

SUPPORT, shaft brg

2шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

611487R2

SPROCKET ASSY.

SPROCKET, 8T rear apron shaft

2шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

2шт.

Q98

KEY, 1/4 x 1/4 x 1-7/8" straight 1/4" Sq x 1 7/8", Par

2шт.

4

612757R1

SHAFT, rear apron

1шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

2шт.

Q121

WASHER

WASH, 1-9/32 x 2 x 16 ga

1шт.

5

187394

CONNECTOR, ELEC,1/8" NPT, Fem

NIPPLE, 1/8 x 13/16" brg RH

1шт.

6

613234R1

BRACKET, apron shaft lubricator

1шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

W/NUT, 7/16 x 3/4" mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

7

105412

ELBOW,90 Degree, 1/8" NPT

1/8" - 90 degree nipple brg RH

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

8

611095R1

SPACER, apron shaft

1шт.
