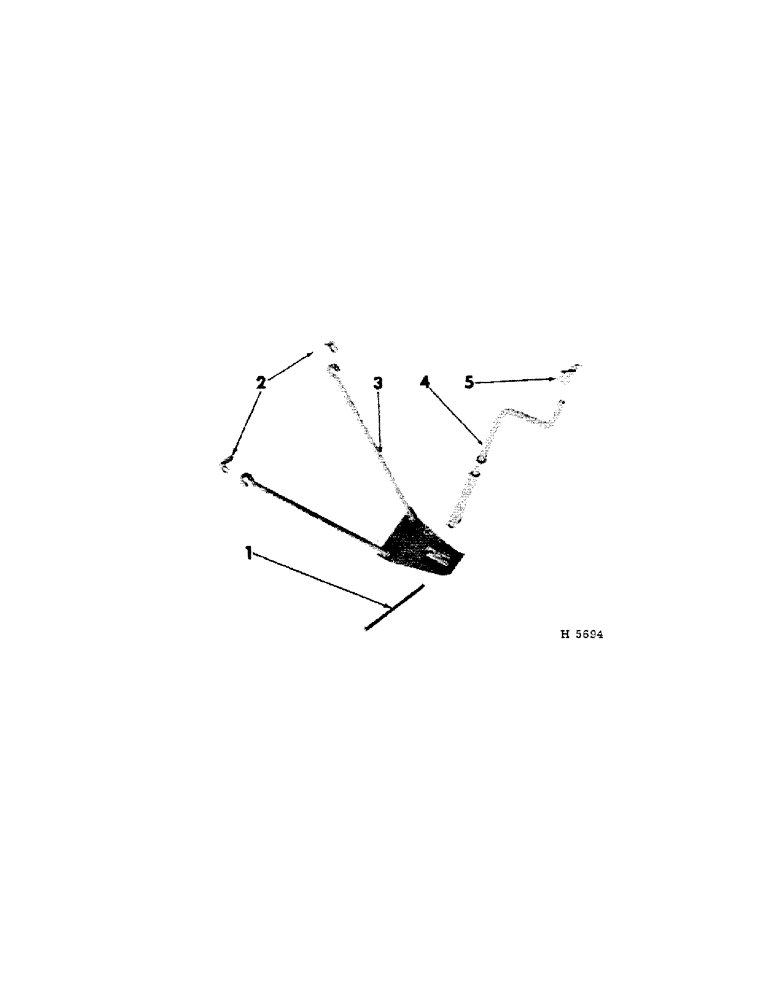

Запчасти Case IH 101 (B-08[A]) - HIGH STAND

1

613093R1

PIN, hitch stand hold-up

1шт.

591107R1

COTTER PIN

C-PIN, quick attachable

1шт.

2

619705R1

ANGLE, hitch pivot

2шт.

123066

BOLT W/NUT, 3/8 x 1" cd-pltd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

619707R91

STAND, lifting jack

1шт.

4

619713R92

SCREW, hitch lifting

1шт.

126098

FITTING

LUB-FTG, 5/16" drive

1шт.

PO20130

AXLE PIN,3/4" x 2 1/8"

PIN, 3/4 x 2-1/8" std-hd dld

1шт.

Q3501

WASHER

WASH, 25/32 x 1-1/4 x 16 ga

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

5

613130R1

CLIP, stand lifting screw

1шт.

591107R1

COTTER PIN

C-PIN, quick-attachable

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
