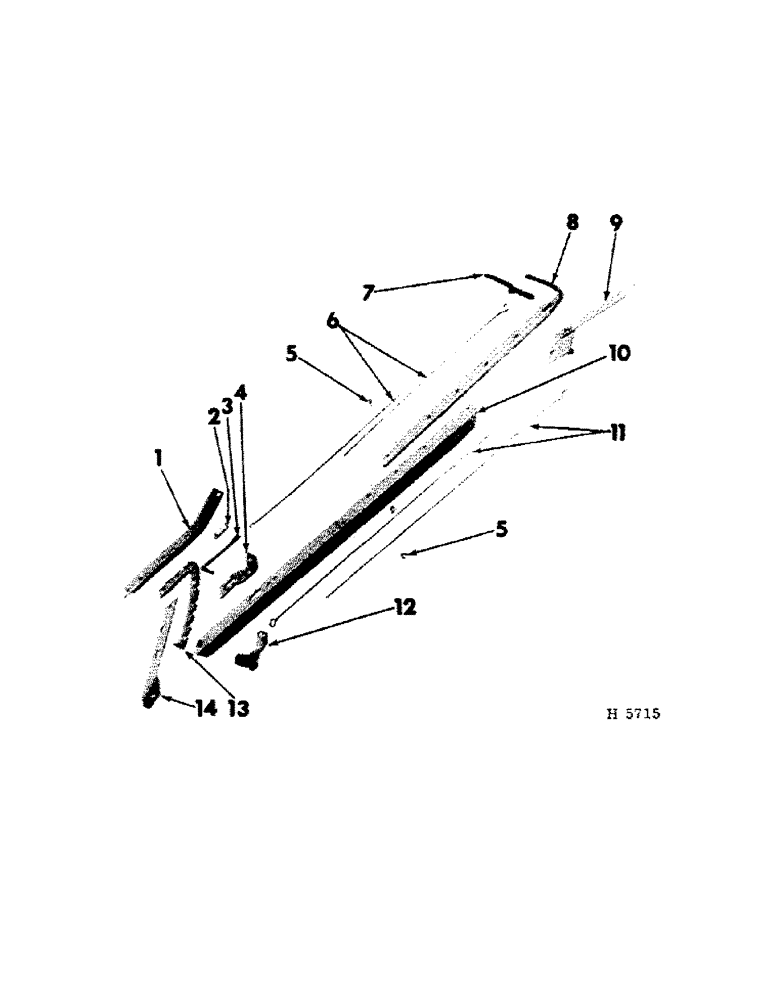

Запчасти Case IH 101 (B-07) - CONTROL AND DECLUTCH LEVER, REGULAR 1966 AND SINCE
№
Артикул
Название
Примечание
Количество
1
613263R1
ANGLE, sector support
2шт.
14995R1
BOLT
W/NUT, 3/8 x 3/4" crg
10шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
10шт.
2
RP5232
SPRING, adjusting lever plunger
2шт.
3
617426R1
PLUNGER, lever control
2шт.
W6652
WASHER
WASH, 15/32 x 1 x 16 ga
6шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
4шт.
4
617475R1
GUIDE, sector plunger
2шт.
106916
RIVET,Tr Hd, 5/16" x 1"
5/16 x 1" truss-hd
4шт.
5
PO2193
CLAMP
lever adjusting rod
12шт.
15000R1
BOLT,1/4" x 7/8"
W/NUT, 1/4 x 7/8" crg
6шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
6
619558R1
ROD, lever
4шт.
7
PO15296
HANDLE
LATCH, control & declutch lever
2шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
2шт.
8
617476R1
LEVER, adjusting upper
2шт.
15001R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2
BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd
4шт.
9
613289R11
LEVER, beater control
1шт.
15019R1
BOLT, 3/8 x 1-1/8" dld crg
1шт.
109886
NUT
3/8" slt
1шт.
Q1505
WASHER
WASH, 13/32 x 1 x 16 ga
1шт.
Q5035
WASHER
WASH, 17/32 x 1 x 16 ga
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
10
613260R21
LEVER, adjusting lower
2шт.
617939R1
PIN,5/16" x 1 1/2", Coiled
1шт.
11
619559R1
ROD, beater lever
2шт.
Q3547
HEADED PIN,1/2" x 1"
PIN, 1/2 x 1" std-hd dld
1шт.
11002VA
WASHER
WASH, 17/32 x 7/8 x 16 ga
1шт.
12
613269R1
ARM, lever adjusting
1шт.
617939R1
PIN,5/16" x 1 1/2", Coiled
1шт.
13
591671R1
SECTOR
lever LH (1966 & since)
1шт.
13
619560R1
SECTOR, lever RH
1шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
W/NUT, 3/8 x 1" mach
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
14
613265R1
SUPPORT, adjusting rod
2шт.
17420R1
BOLT,Hex, 3/8"-16 x 7/8", G2
W/NUT, 3/8 x 7/8" mach
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
Выбрано товаров: 40
