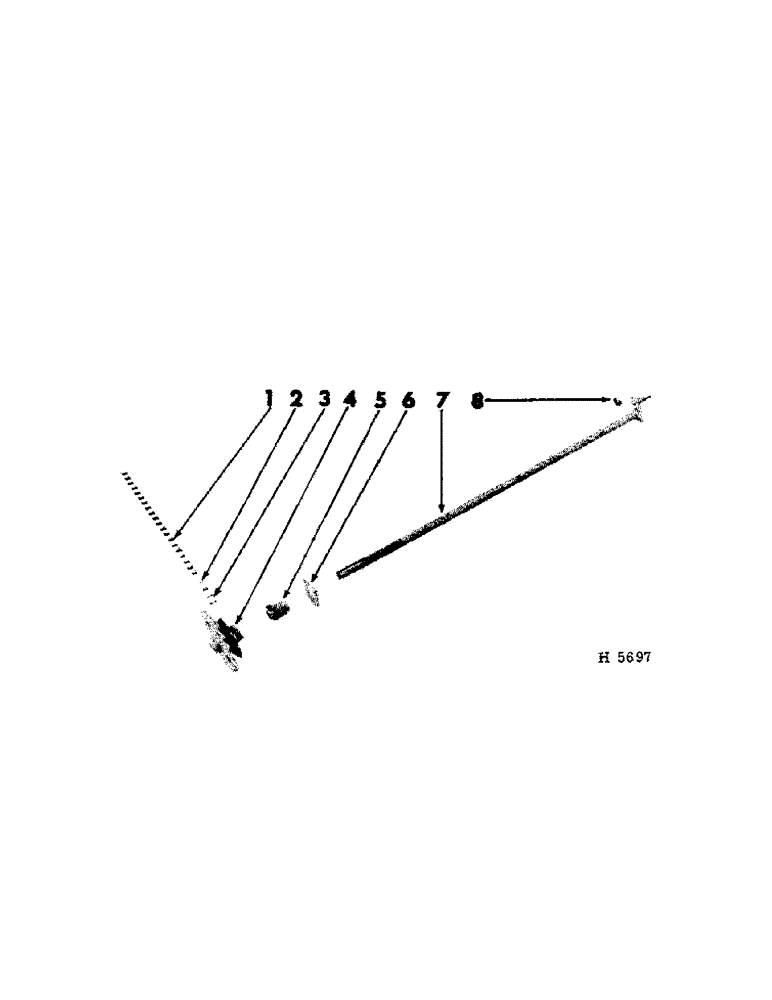

Запчасти Case IH 101 (B-07[A]) - ECCENTRIC SHAFT

1

CHAIN, main drive (1-5/8" extended pitch agricultural) (order 1-606039R91 10 ft chain reduce to 57 links, add 1-588562R91, offset link & 1-588564R11, connecting link)

1шт.

2

588562R91

CHAIN LINK

LINK, chain offset

1шт.

588563R1

PIN, offset link

1шт.

614046R91

PACKAGE

C-PIN, 1/4 lb. pkg

1шт.

3

588564R11

LINK

chain connecting

1шт.

614046R91

PACKAGE

C-PIN, 1/4 lb. pkg

1шт.

4

613977R1

SPROCKET, 11T & 19T transmission

1шт.

617034R1

KEY,5/16" Sq x 3", Par

5/16 x 5/16 x 3" straight

1шт.

5

613158R1

BEARING

eccentric shaft

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

LUB-FTG, 1/8" - 30 degree elbow

2шт.

6

612768R1

SUPPORT, pitman arm eccentric

2шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

7

612756R11

SHAFT, pitman arm eccentric

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

Q121

WASHER

WASH, 1-9/32 x 2 x 16 ga

1шт.

8

605599R1

SPACER, eccectric shaft brg

1шт.
