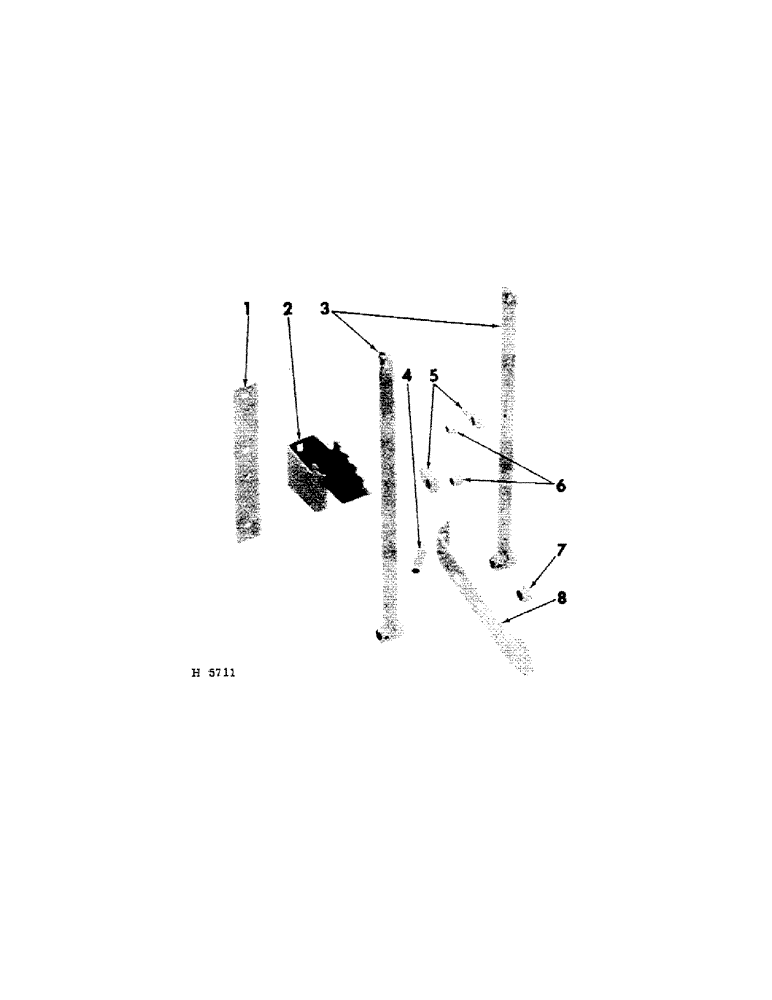

Запчасти Case IH 101 (B-06) - ROPE CONTROL, REGULAR PRIOR TO 1966

1

612825R1

PLATE, sector support

1шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

612808R1

SECTOR, trip rope

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

2шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

612785R21

LEVER, rope control trip

2шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

4

4A

SPRING

trip lever

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

612721R2

PAWL, trip lever

2шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

W/NUT, 1/2 x 1-3/4" mach

2шт.

Q5035

WASHER

WASH, 17/32 x 1 x 16 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Q169

WASH, 25/32 x 1-1/4 x 18 ga

1шт.

6

519628R1

SPACER

BUSHING, trip lever pawl

2шт.

7

PO17652

SPACER, adjusting rod

2шт.

8

612803R1

SUPPORT, adjusting rods

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

ROPE, trip lever (3/8" sisal x 21 ft.) (dealer to supply from bulk stock)

1шт.
