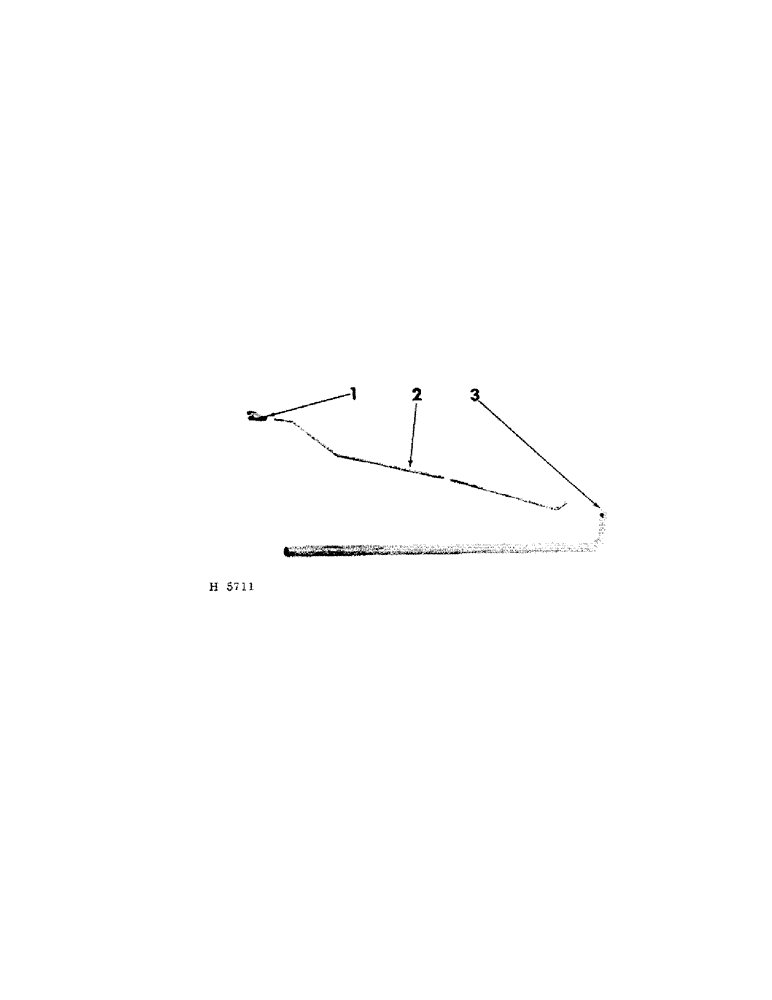

Запчасти Case IH 101 (B-06[A]) - CLUTCH THROW-OUT ROD

1

104037

CLEVIS

clutch throw-out rod

1шт.

Q876

AXLE PIN

PIN, 5/16 x 1-1/8" std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

613091R1

ROD, clutch throw-out

1шт.

Q398

WASHER

WASH, 11/32 x 7/8 x 16 ga

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

612751R1

ROD, rope control adjusting LH, Serial Range: (prior-1966)

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

Q3501

WASHER

WASH, 25/32 x 1-1/4 x 16 ga

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

3

613266R1

ROD, lever control adjusting LH, Serial Range: (prior-1966)

1шт.

3

591672R1

ROD, lever control adjusting LH (1966 & since)

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

Q3501

WASHER

WASH, 25/32 x 1-1/4 x 16 ga

1шт.
