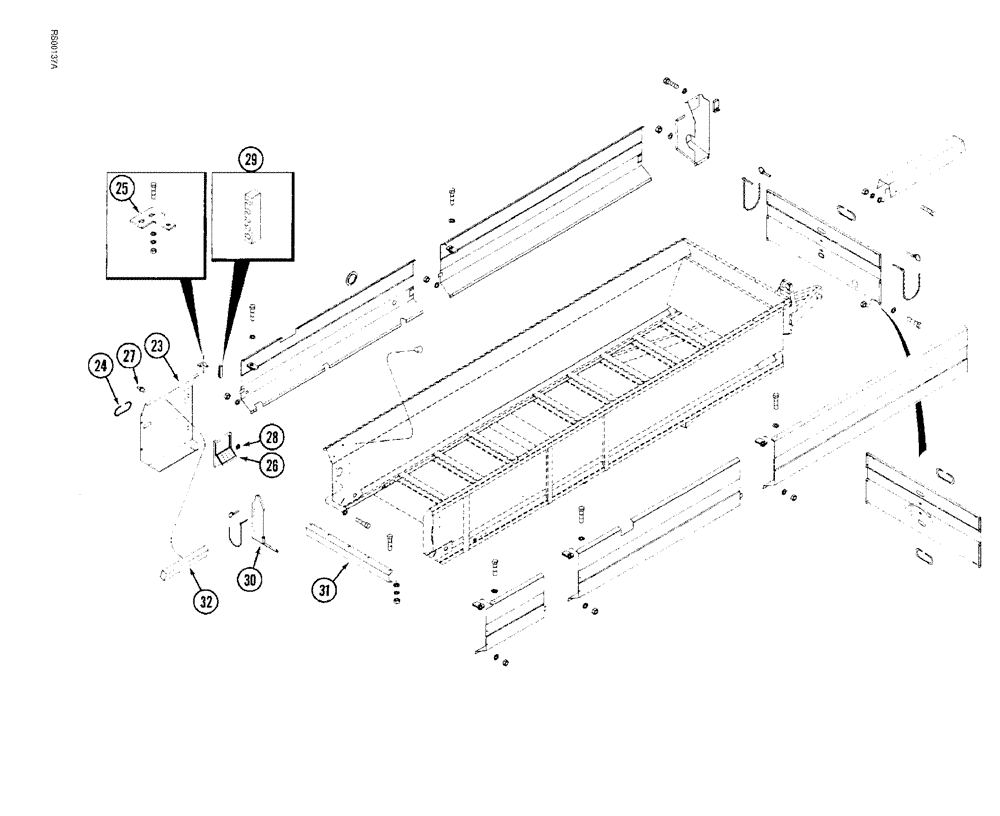

Запчасти Case IH 1500-SERIES (09-04) - GUARD PANELS

23

1544833C1

GUARD

SHIELD side, left rear (1530 and 1540 Spreader prior to P.I.N CHC0001780)

1шт.

23

1545290C1

SHIELD

side guard, left rear (1530 and 1540 Spreader P.I.N CHC0001780 and after)

1шт.

23

1544620C1

GUARD

SHIELD side, left rear, 1550, 1560 and 1570 Spreader

1шт.

23

1544688C1

GUARD

SHIELD side, left rear, 1580 Spreader

1шт.

24

1544937C1

GROMMET

TRIM guard

1шт.

25

1544603C1

BRACKET

hinge, left rear shield

2шт.

26

T104294

BOX

storage, operator's manual

1шт.

27

151-558

RIVET,Pop, 3/16" x .450"

break mandrel, 3/16" x 1/2"

2шт.

28

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

flat, 13/64" x 1/2" x 3/64"

2шт.

29

3102155R1

HOLDER

shear bolt

1шт.

30

1544825C1

GUARD

left rear end, 1530 and 1540 Spreader

1шт.

30

1544619C1

GUARD

left rear end, 1550, 1560 and 1570 Spreader

1шт.

30

1544686C1

GUARD

left rear end, 1580 Spreader

1шт.

31

1544872C1

COVER

GUARD rear, 1530 and 1540 Spreader

1шт.

31

1544689C2

COVER

GUARD rear, 1550, 1560, 1570 and 1580 Spreader

1шт.

32

1545276C1

GASKET

side guard shield, order P/N 198096C1 and cut to length, not used on P/N 1545290C1 shield, Ref. 23 (1530 and 1540 Speader, P.I.N. CHC0001780 and after)

1шт.
