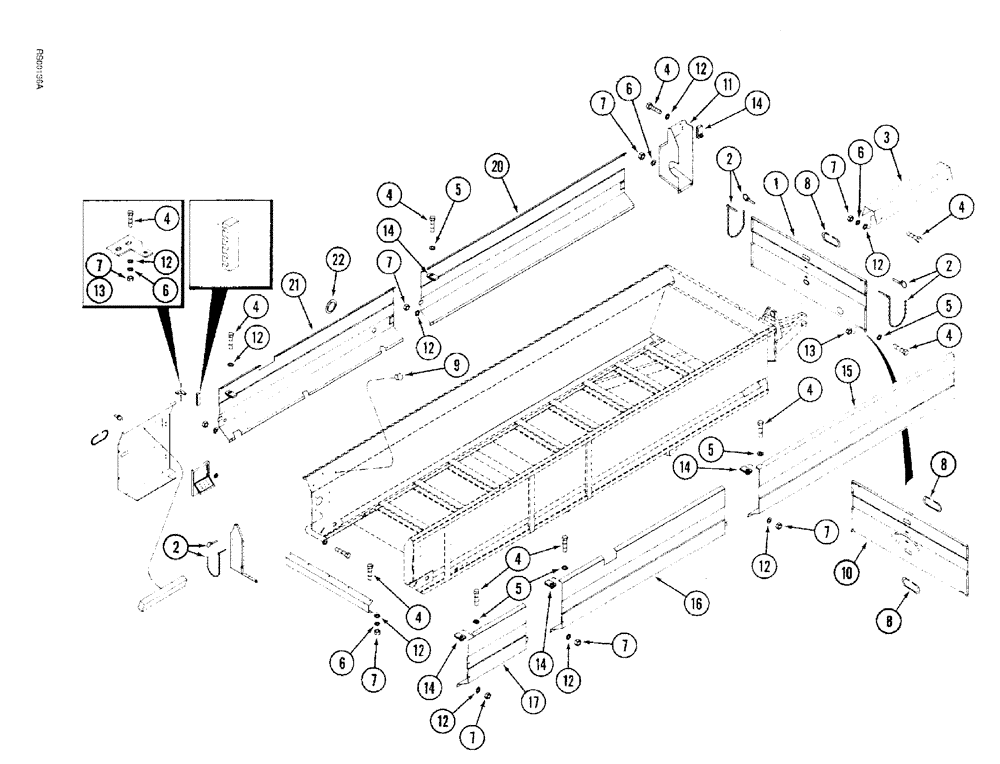

Запчасти Case IH 1500-SERIES (09-02) - GUARD PANELS
№
Артикул
Название
Примечание
Количество
1
1544828C1
GUARD
PANEL front, front guard, 1530 and 1540 Spreader
1шт.
1
1544615C1
GUARD
PANEL front, front guard, 1550, 1560 and 1570 Spreader
1шт.
1
1544681C1
GUARD
PANEL front, front guard, 1580 Spreader
1шт.
2
1544583C1
KEY
PIN clinch, with chain
3шт.
3
1544767C1
SUPPORT
SHIELD, PTO top
1шт.
4
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
1шт.
4
611-8025
CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6
BOLT carriage, 8 - 1.25 x 25 mm
1шт.
4
611-8040
CARRIAGE BOLT,M8 x 40mm, Class 4.6
carriage, 8 - 1.25 x 40 mm
1шт.
5
495-21038
WASHER,5/16"
(flat, 3/8" x 7/8" x 3/32")
1шт.
6
892-11008
LOCK WASHER,8mm ID
1шт.
7
825-1408
NUT,M8, Cl 8
1шт.
8
1544937C1
GROMMET
TRIM guard
1-2шт.
9
1545277C1
PLUG
rubber
10шт.
10
110016A2
GUARD
PANEL front, front guard, used when spreader has hydraulic apron drive, 1560 and 1570 Spreader
1шт.
10
110012A2
GUARD
PANEL front, front guard, used when spreader has hydraulic apron drive, 1580 Spreader
1шт.
11
1544829C1
GUARD
pulley, 1530 and 1540 Spreader
1шт.
11
1544616C1
GUARD
pulley, 1550, 1560 and 1570 Spreader
1шт.
11
1544777C1
GUARD
pulley, 1580 Spreader
1шт.
12
495-21038
WASHER,5/16"
(flat, 3/8" x 7/8" x 3/32")
1шт.
13
832-10408
NUT,M8 x 1.25, Cl 8.8
1шт.
14
1545090C1
LOCK NUT
locking, special, 8 mm - 1.25
1шт.
15
1544917C1
SHIELD
side guard, right front, 1530 Spreader
1шт.
15
1544819C1
SHIELD
side guard, right front, 1540 Spreader
1шт.
15
1544623C1
SHIELD
side guard, right front, 1550, 1560 and 1570 Spreader
1шт.
15
1544687C1
SHIELD
side guard, right front, 1580 Spreader
1шт.
16
1544821C1
SHIELD
side guard, right center, 1540 Spreader
1шт.
16
1544739C1
SHIELD
side guard, right center, 1550 Spreader
1шт.
16
1544655C1
SHIELD
side guard, right center, 1560 Spreader
1шт.
16
1544624C1
SHIELD
side guard, right center, 1570 Spreader
1шт.
16
1544683C1
SHIELD
side guard, right center, 1580 Spreader
1шт.
17
1544841C1
SHIELD
side guard, right rear, 1530 and 1540 Spreader
1шт.
17
1544985C1
SHIELD
side guard, right rear, 1550, 1560 and 1570 Spreader
1шт.
17
1544536C1
SHIELD
side guard, right rear, 1580 Spreader
1шт.
20
1544915C1
SHIELD
side guard, left front, 1530 Spreader
1шт.
20
1544818C1
SHIELD
side guard, left front, 1540 Spreader
1шт.
20
1544617C1
SHIELD
side guard, left front, 1550, 1560 and 1570 Spreader
1шт.
20
1544682C1
SHIELD
side guard, left front, 1580 Spreader
1шт.
21
1544820C1
SHIELD
side guard, left center, 1540 Spreader
1шт.
21
1544738C1
SHIELD
side guard, left center, 1550 Spreader
1шт.
21
1544656C1
SHIELD
side guard, left center, 1560 Spreader
1шт.
21
1544618C1
SHIELD
side guard, left center, 1570 Spreader
1шт.
21
1544684C1
SHIELD
side guard, left center, 1580 Spreader
1шт.
22
353-254
PUSH BUTTON,1 1/4"
PLUG, 1-7/32"
1шт.
Выбрано товаров: 43
