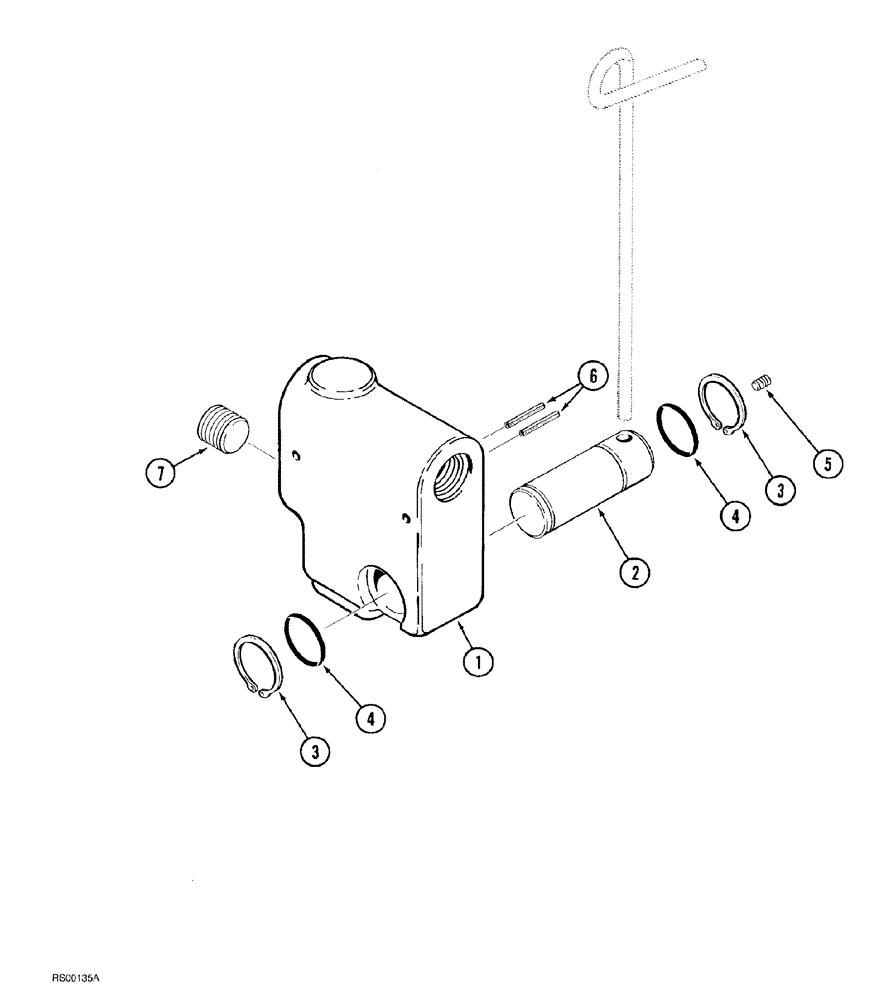

Запчасти Case IH 1500-SERIES (08-14) - FLOW CONTROL VALVE

110007A1

VALVE

ASSEMBLY flow control

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve, flow control

1шт.

3

100-1193

SNAP RING,#93, Ext

2шт.

4

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

5

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

set, hex socket, cup point, 1/4" NC x 1/4"

1шт.

6

38-21214

PIN,3/16" x 7/8", Coiled

3/16" x 7/8", Coiled

2шт.

7

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.
