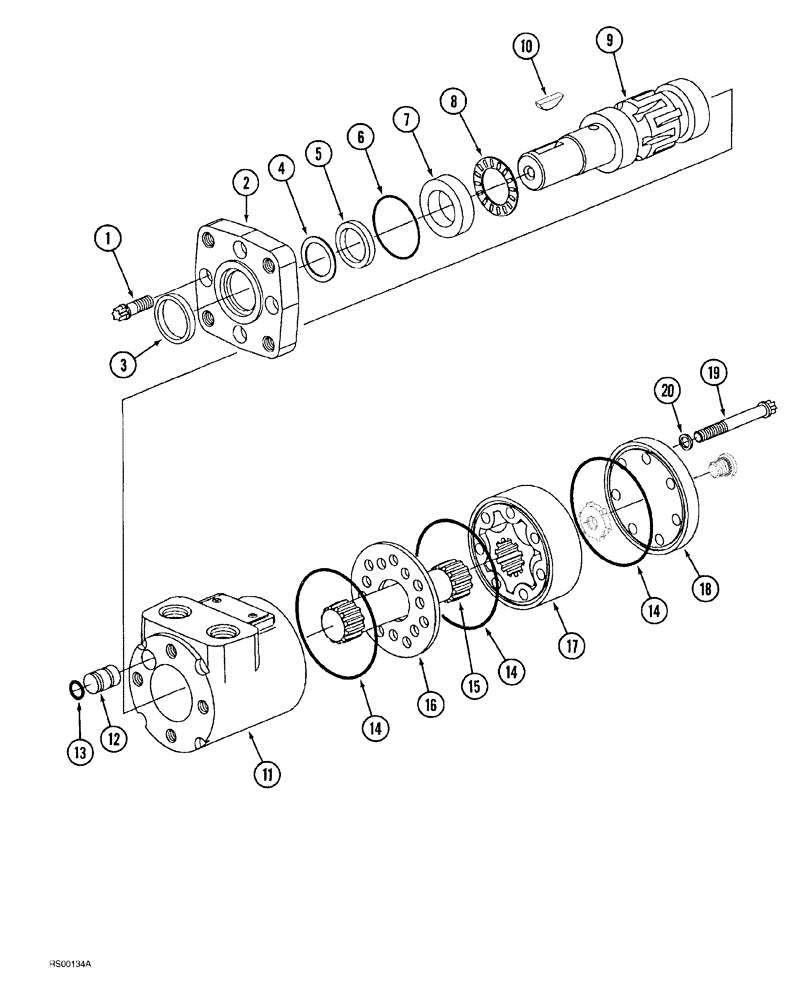

Запчасти Case IH 1500-SERIES (08-12) - HYDRAULIC MOTOR (USED WITH HYDRAULIC APRON DRIVE)

H616185

MOTOR HOUSING

ASSEMBLY hydraulic, apron drive

1шт.

1

79-1514

12 PT SCREW,Flg, 5/16" - 24 x 0.875", Gr 8

flanged, 12 point

4шт.

2

700710623

FLANGE

pump mounting

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL shaft, external, at flange

1шт.

Part of Motor Repair Seal Kit P/N 1542724C1

1шт.

4

700711626

RING

back up, seal

1шт.

Part of Motor Repair Seal Kit P/N 1542724C1

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL shaft, internal

1шт.

Part of Motor Repair Seal Kit P/N 1542724C1

1шт.

6

18-146

SEAL,Square, 2.3mm Thk x 44.4mm ID

O-ring, shaft

1шт.

Part of Motor Repair Seal Kit P/N 1542724C1

1шт.

7

63779C1

BEARING CUP,27.94mm ID x 42.16mm OD x 10.16mm L

RACE needle bearing

1шт.

8

63780C91

THRUST BEARING

needle thrust

1шт.

9

8732513

SHAFT

drive, pump

1шт.

10

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING pump

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG housing

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING plug

1шт.

Part of Motor Repair Seal Kit P/N 1542724C1

1шт.

14

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

at housing, gerotor and end cap

3шт.

Part of Motor Repair Seal Kit P/N 1542724C1

1шт.

15

N9790

DRIVE

SHAFT gerotor

1шт.

16

8732539

SPACER

PLATE

1шт.

17

700710630

ROTOR ASSY.

SET gerotor

1шт.

18

63792C1

CAP

end

1шт.

19

79-1528

12 PT SCREW,Flg, 5/16" - 18 x 1.75", Gr 8

BOLT, 12 point flange, 5/16" NC x 1-3/4"

7шт.

20

D143198

WASHER

special, 5/16"

7шт.

Part of Motor Repair Seal Kit P/N 1542724C1

1шт.

1542724C1

SEAL KIT

KIT motor repair, Includes: Ref. 3, 4, 5, 6, 13, 14 and 20

1шт.
