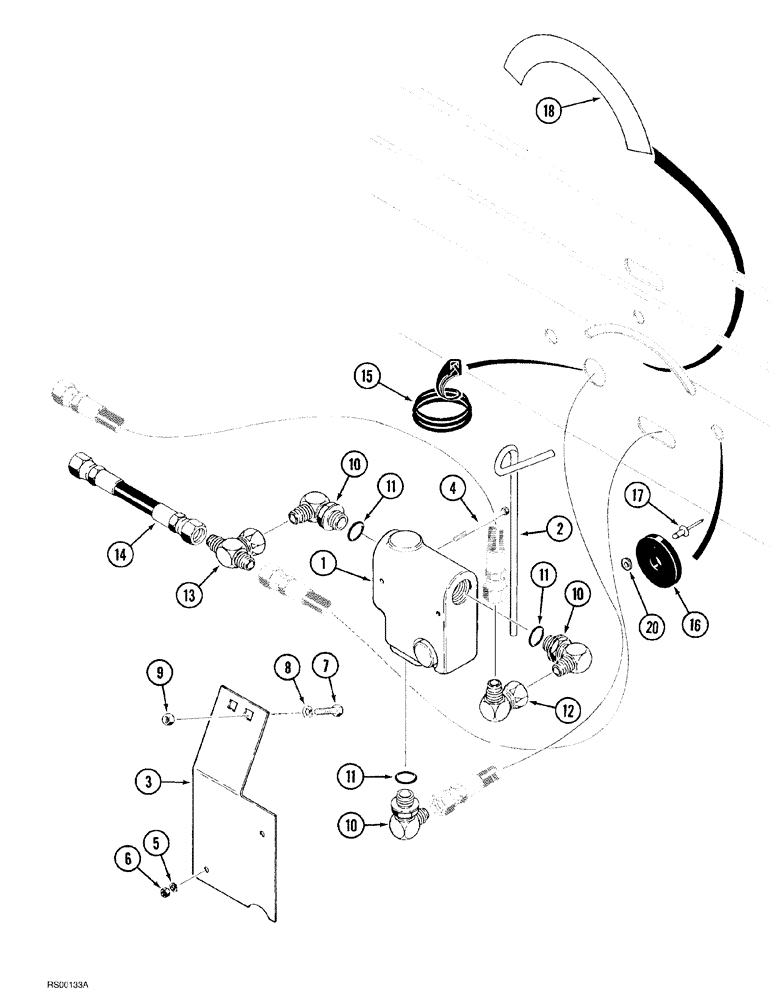

Запчасти Case IH 1500-SERIES (08-10) - FLOW CONTROL VALVE SYSTEM (USED WITH HYDRAULIC APRON DRIVE)

1

110007A1

VALVE

ASSEMBLY flow control, see Figure 08-14

1шт.

2

110010A1

HANDLE

valve, flow control

1шт.

3

110011A2

MOUNTING PARTS

BRACKET valve

1шт.

4

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

5

892-11006

LOCK WASHER,M6

2шт.

6

825-1406

NUT,M6, Cl 8

2шт.

7

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

892-11008

LOCK WASHER,8mm ID

2шт.

9

825-1408

NUT,M8, Cl 8

2шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

3шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

13

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

3/4"-16 swivel branch x flare x flare

1шт.

14

91198C1

HOSE,12.70 mm ID x 280.00 mm

Flow Control Valve to Check Valve

1шт.

15

1544937C1

GROMMET

TRIM, at front panel hole

1шт.

16

1544569C2

GROMMET

rope, at front panel

2шт.

17

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

Break mandrel

4шт.

18

110014A1

DECAL

variable speed indicator, flow control valve

1шт.

19

REF

INSTRUCTION

ROPE handle, flow control valve, purchase locally, not shown

1шт.

20

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

flat, 13/64" x 1/2" x 3/64"

4шт.
