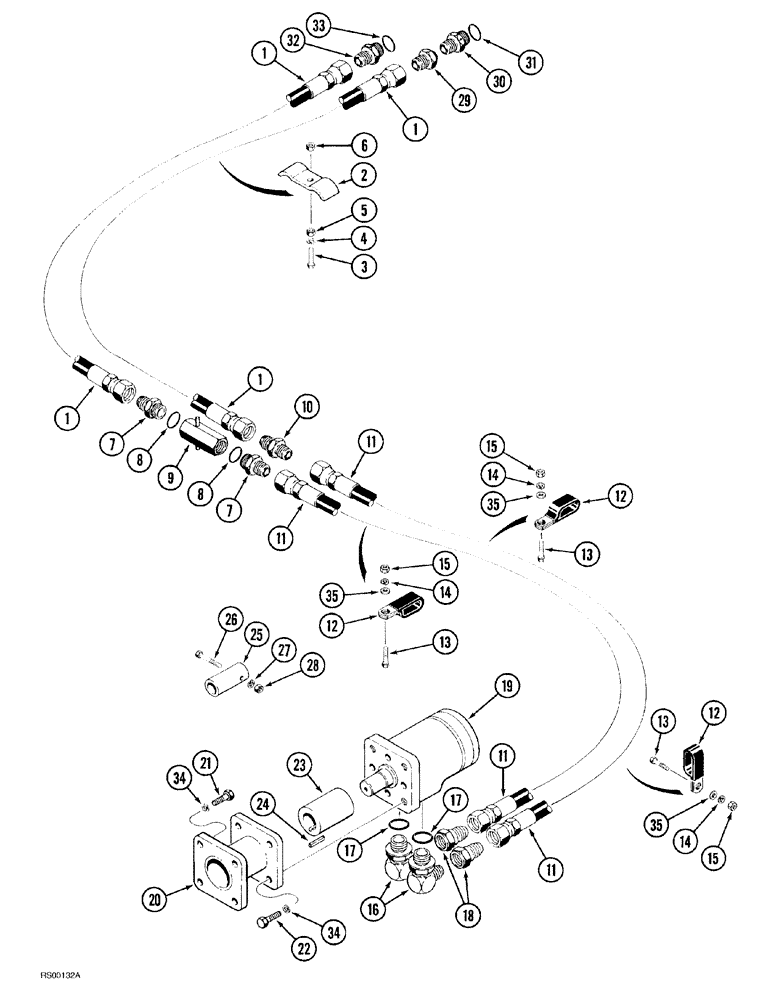

Запчасти Case IH 1500-SERIES (08-08) - HYDRAULIC APRON DRIVE SYSTEM (1560, 1570 AND 1580 SPREADER)

1

196584C2

HYDRAULIC HOSE

95"/2413 mm long, at tractor remote coupling

2шт.

2

451641

CLAMP

retaining, hose, hoses to PTO guard

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

4

892-11008

LOCK WASHER,8mm ID

1шт.

5

825-1408

NUT,M8, Cl 8

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

7

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

1279338C1

VALVE

check, return, Serial Range: hose-tractor

1шт.

10

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight, 3/4"-16 flare

1шт.

11

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

to Hydraulic Motor, 1560 Spreader

2шт.

Ref. 11 is service replacement for original equipment hose which has a nonremoveable 90° swivel fitting at motor end. Also order (1) each of Ref. 16 and 18 for each hose replaced.

1шт.

11

1978106C1

HOSE

240"/6096 mm long, to hydraulic motor, 1570 Spreader

2шт.

Ref. 11 is service replacement for original equipment hose which has a nonremoveable 90° swivel fitting at motor end. Also order (1) each of Ref. 16 and 18 for each hose replaced.

1шт.

11

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

HYDRAULIC HOSE, 12.70 mm ID X 6730.00 mm, 1580 Spreader

2шт.

Ref. 11 is service replacement for original equipment hose which has a nonremoveable 90° swivel fitting at motor end. Also order (1) each of Ref. 16 and 18 for each hose replaced.

1шт.

12

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

CLAMP plastic coated

3шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

14

892-11008

LOCK WASHER,8mm ID

3шт.

15

825-1408

NUT,M8, Cl 8

3шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

2шт.

19

H616185

MOTOR HOUSING

ASSEMBLY hydraulic, apron drive, see Figure 08-12

1шт.

20

110046A1

FLANGE

mounting, motor to gear box

1шт.

21

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

110047A1

COUPLING

to gearbox shaft

1шт.

24

Q53

KEY,1/4" Sq x 1", Par

1шт.

25

110048A1

STOP

gear box shift control

1шт.

26

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

27

892-11006

LOCK WASHER,M6

1шт.

28

825-1406

NUT,M6, Cl 8

1шт.

29

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

1шт.

30

532875R1

FITTING

RESTRICTOR flow, 7/8"-14 flare x 7/8"-14 O-ring boss

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

892-11010

LOCK WASHER,M10

8шт.

35

495-21038

WASHER,5/16"

(flat, 3/8" x 7/8" x 3/32")

3шт.
