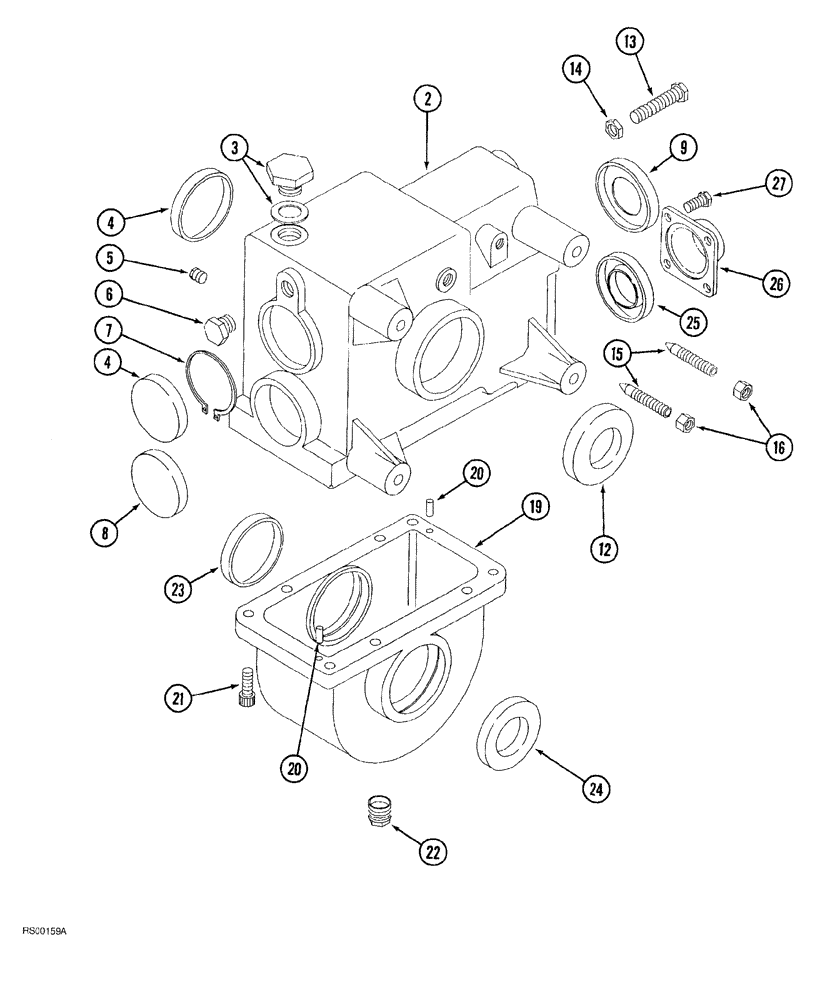

Запчасти Case IH 1500-SERIES (09-52) - GEARBOX (1560, 1570 AND 1580 SPREADER)

110003A2

GEARBOX ASSY

spreader, Replaces: 110003A1

1шт.

2

1545091C2

HOUSING

gearbox

1шт.

3

1545107C1

PLUG, DRAIN

fill, gearbox, includes gasket

1шт.

4

1545192C1

CAP

PLUG, 72 x 10 mm

2шт.

5

700712384

PLUG

housing

1шт.

6

1545122C1

PLUG

hex, housing

1шт.

7

800-2172

SNAP RING

1шт.

8

1545119C1

CAP

PLUG, 62 x 10 mm

1шт.

9

700712389

OIL SEAL

oil

1шт.

12

1545104C1

SEAL

oil

1шт.

13

1545093C1

BOLT

hex, special, 8 mm

1шт.

14

825-1408

NUT,M8, Cl 8

1шт.

15

1545193C1

ADJUSTMENT SCREW,M12 x 60mm

adjustment

2шт.

16

829-1412

NUT,M12, Cl 10.9

2шт.

19

1544554C1

HOUSING

lower, gearbox

1шт.

20

1545140C1

PIN

spring, locating

2шт.

21

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

22

1545115C1

PLUG

drain, housing

1шт.

23

1545113C1

CAP

PLUG

1шт.

24

1545116C1

SEAL

oil

1шт.

25

110053A1

SEAL

oil, pump shaft

1шт.

26

110120A1

COVER

housing, 2 speed mechanical drive only

1шт.

27

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT hex socket, 10 - 1.5 x 25 mm

4шт.
