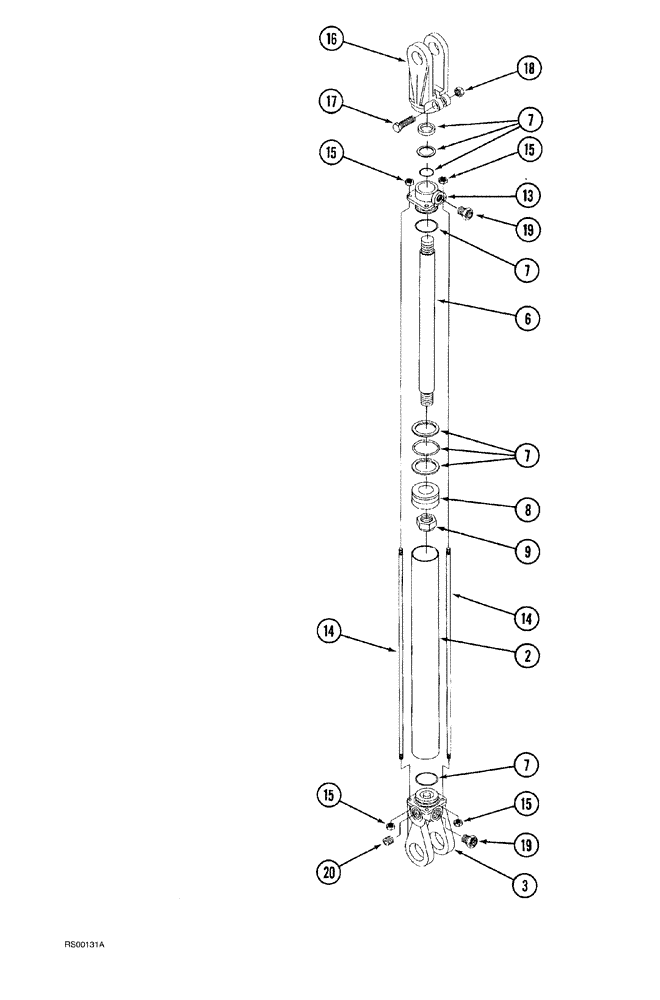

Запчасти Case IH 1500-SERIES (08-06) - HYDRAULIC CYLINDER, 2 X 16 INCH STROKE, CROSS

700709594

CYLINDER

ASSEMBLY hydraulic, P/N 700709594 stamped on tube

1шт.

Number stamped on cylinder tube must be known so that correct service components are ordered.

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

3

110106A1

BASE

CAP cylinder end

1шт.

6

700709953

ROD

cylinder

1шт.

7

700712175

SEAL KIT

KIT repair

1шт.

8

B17272

PISTON

cylinder

1шт.

9

231-47112

LOCK NUT,3/4"-16, GB

hex, self-locking, 3/4" NF

1шт.

13

700709933

HEAD

CAP cylinder

1шт.

14

700709952

ROD

tie

4шт.

15

425-106

NUT,3/8"-16, Cl 5

8шт.

16

700709935

CLEVIS

cylinder rod

1шт.

17

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

BOLT hex socket, 3/8" NC x 1-3/4"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

220279A1

ADAPTER

straight, 3/8" pipe x 9/16"-18 O-ring boss

2шт.

20

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

hex socket, 3/8" PT

1шт.
