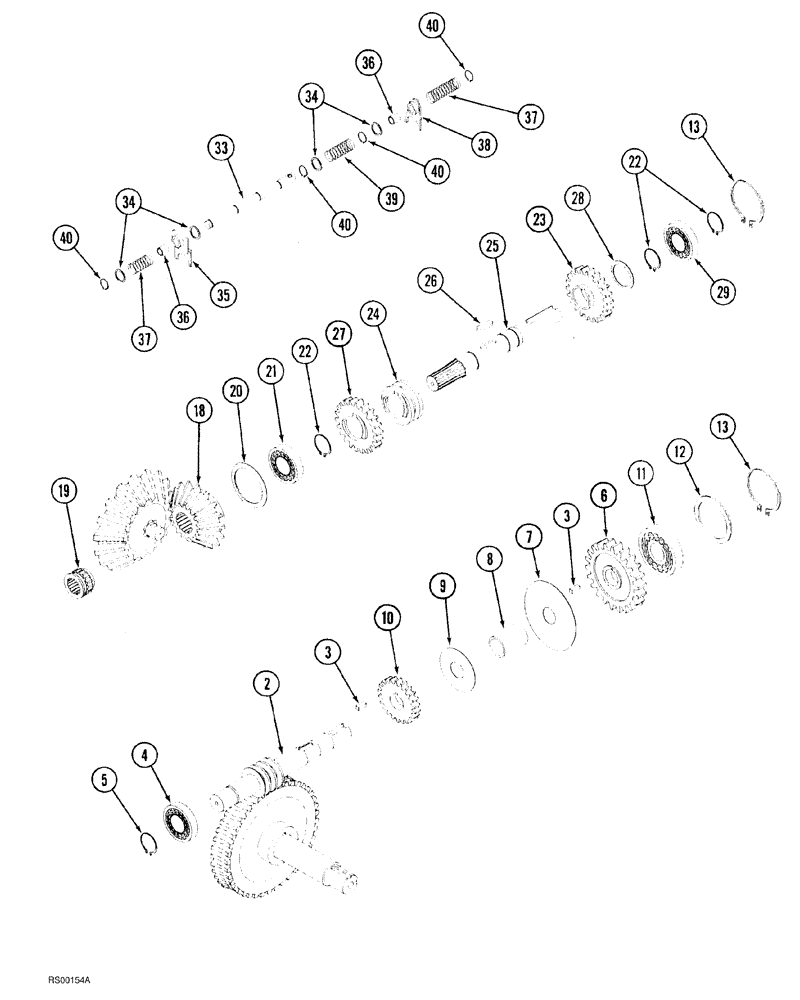

Запчасти Case IH 1500-SERIES (09-42) - GEARBOX (1530, 1540 AND 1550 SPREADER)

1544692C2

GEARBOX ASSY

spreader, Replaces: 1544692C1

1шт.

2

1545146C1

SHAFT

gear

1шт.

3

1545126C1

KEY

gear shaft

2шт.

4

1545121C1

BALL BEARING

gear shaft

1шт.

5

800-2162

SNAP RING,M62, Int

1шт.

6

1545124C1

GEAR

drive, 105 mm OD

1шт.

7

1545123C1

SPACER

drive gear, 106 mm OD

1шт.

8

1545240C1

SPACER

drive gear

1шт.

9

1545137C1

SPACER

drive gear, 78 mm OD

1шт.

10

1545138C1

GEAR

drive, 80 mm OD

1шт.

11

1545125C1

BALL BEARING

gear shaft

1шт.

12

1545105C1

SHIM

bearing

1шт.

13

800-2172

SNAP RING

2шт.

18

1545094C1

PINION

gearbox

1шт.

19

1545095C1

BUSHING

pinion

1шт.

20

1545118C1

SHIM

bearing

1шт.

21

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

ball

1шт.

22

1545131C1

RING

retaining

3шт.

23

1545129C1

GEAR

pinion shaft, 62 mm OD

1шт.

24

1545128C1

BUSHING

pinion shaft

1шт.

25

1545136C1

SHAFT

pinion, prior to P.I.N. CHC0002613

1шт.

25

1545136C2

GEARBOX ASSY

SHAFTpinion, includes key 110119A1, P.I.N. CHC0002613 and after

1шт.

26

110119A1

KEY

pinion shaft, 35 mm long

1шт.

Length of keyway in pinion shaft must be known so that the correct key is ordered.

1шт.

26

1545139C1

KEY

pinion shaft, 30 mm long

1шт.

Length of keyway in pinion shaft must be known so that the correct key is ordered.

1шт.

27

1545127C1

GEAR

pinion shaft, 89 mm OD

1шт.

28

1545135C1

SPACER

bearing

1шт.

29

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

33

1545132C1

LEVER

SHAFT fork

1шт.

34

1545097C1

SHIM

fork

4шт.

35

1545134C1

FORK

gearbox

1шт.

36

1545098C1

BUSHING

BEARING fork

2шт.

37

1545099C1

SPRING

fork

2шт.

38

1545092C1

FORK

apron

1шт.

39

1545096C1

SPRING

fork

1шт.

40

800-1116

SNAP RING,M16, Ext

Retaining

4шт.
