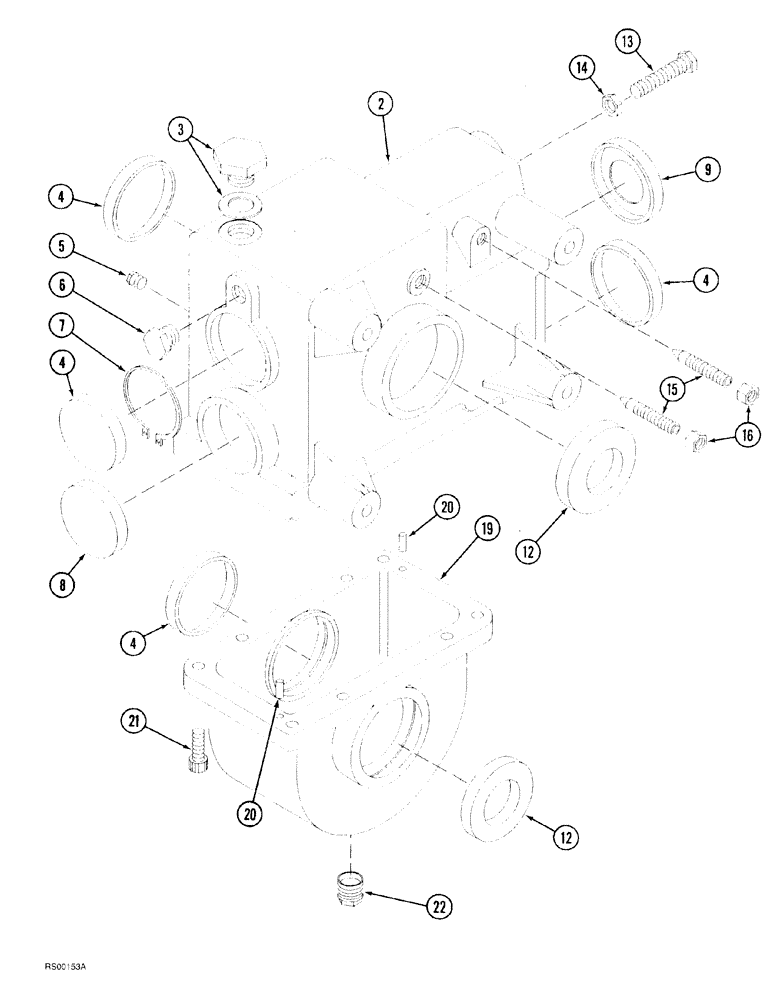

Запчасти Case IH 1500-SERIES (09-40) - GEARBOX (1530, 1540 AND 1550 SPREADER)

1544692C2

GEARBOX ASSY

spreader, Replaces: P/N 1544692C1

1шт.

2

1545091C2

HOUSING

gearbox

1шт.

3

1545107C1

PLUG, DRAIN

fill, gearbox

1шт.

4

1545192C1

CAP

PLUG, 72 x 10 mm

4шт.

5

700712384

PLUG

housing

1шт.

6

1545122C1

PLUG

hex, housing

1шт.

7

800-2172

SNAP RING

1шт.

8

1545119C1

CAP

PLUG, 62 x 10 mm

1шт.

9

700712389

OIL SEAL

oil

1шт.

12

1545104C1

SEAL

oil

2шт.

13

1545093C1

BOLT

hex, special, 8 mm

1шт.

14

825-1408

NUT,M8, Cl 8

1шт.

15

1545193C1

ADJUSTMENT SCREW,M12 x 60mm

adjustment

2шт.

16

829-1412

NUT,M12, Cl 10.9

2шт.

19

1545142C1

HOUSING

lower, gearbox

1шт.

20

1545140C1

PIN

spring, locating

2шт.

21

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

22

1545115C1

PLUG

drain, housing

1шт.
