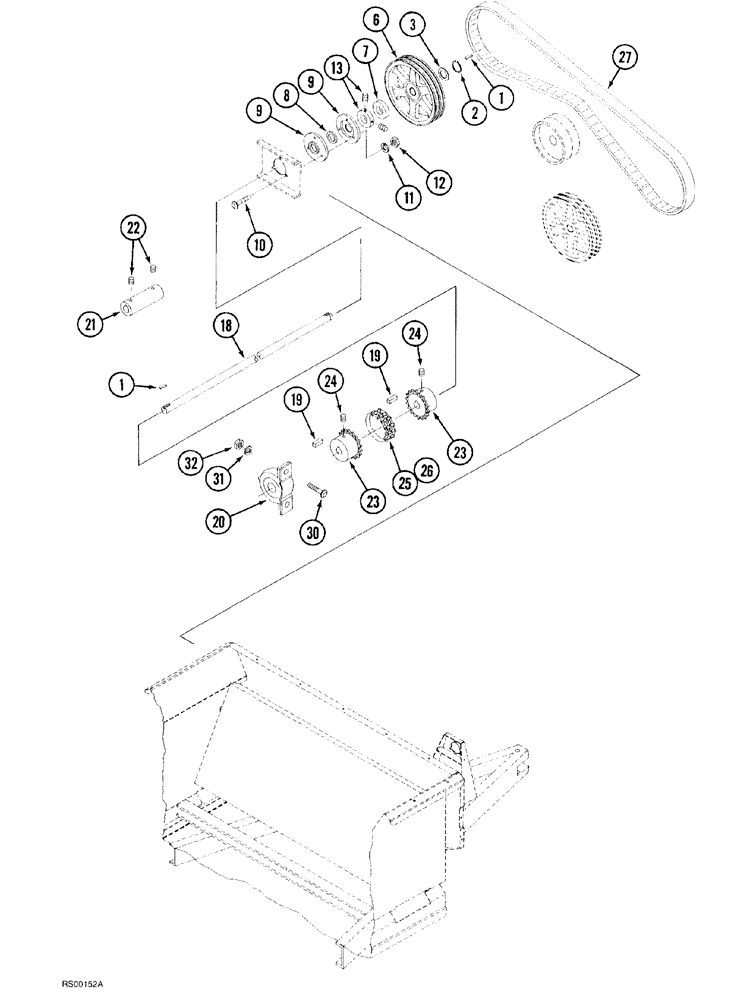

Запчасти Case IH 1500-SERIES (09-38) - BELT DRIVE

1

457400R1

KEY,5/16" Sq x 1 3/4", Par

square, 5/16" x 1-3/4"

2шт.

2

100-11125

SNAP RING,#125, Ext

1шт.

3

1545088C1

BUSHING

pulley, drive

1шт.

6

1544592C1

SHEAVE

PULLEY drive, 1530 and 1540 Spreader

1шт.

6

1544588C1

SHEAVE

PULLEY, PTO drive, 540 RPM, 1550, 1560, 1570 and 1580 Spreader

1шт.

6

1544991C1

SHEAVE

PULLEY ASSEMBLY, PTO drive, 1000 RPM, 1550, 1560, 1570 and 1580 Spreader

1шт.

1545244C1

BUSHING

split, includes (3) P/N 413-532 hex bolts, 5/16" NC x 2" and (3) P/N 492-11031 lock washers, 5/16", components of 1544991C1 pulley only, not shown

1шт.

7

1544506C1

SPACER

pulley, drive

1шт.

8

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

ball

1шт.

9

1544857C1

FLANGED BEARING

bearing

2шт.

10

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

3шт.

11

892-11008

LOCK WASHER,8mm ID

3шт.

12

825-1408

NUT,M8, Cl 8

3шт.

13

557995R11

COLLAR

bearing, with set screw

1шт.

18

1544909C1

SHAFT

drive side, 1530 Spreader

1шт.

18

1544860C1

SHAFT

drive side, 1540 Spreader

1шт.

18

1544736C1

SHAFT

drive side, 1550 Spreader

1шт.

18

1544651C1

SHAFT

drive side, 1560 Spreader

1шт.

18

1544586C1

SHAFT

drive side, 1570 Spreader

1шт.

18

1544679C1

SHAFT

drive side, 1580 Spreader

1шт.

19

Q87

KEY,3/8" Sq x 1 1/2", Par

square, 3/8" x 1-1/4"

2шт.

20

1544587C1

PILLOW BLOCK

BEARING pillow block, (1) used with 1530 and 1540 Spreader, (2) used with 1550, 1560, 1570 and 1580 Spreader

1шт.

21

1544861C1

COUPLING

side shaft, used with all 1530 and 1540 Spreaders and 1550, 1560, 1570 and 1580 Spreaders with P.I.N.CHC0002290 and after

1шт.

22

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

set, hex socket, cup point, 5/16" NC x 5/16"

2шт.

23

1544605C1

SPROCKET ASSY.

shaft, drive side, 12 tooth

2шт.

1550, 1560, 1570, and 1580 Spreader prior to P.I.N. CHC0002290

1шт.

24

83-13112

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

set, hex socket, cup point, 5/16" NC x 3/4"

2шт.

1550, 1560, 1570, and 1580 Spreader prior to P.I.N. CHC0002290

1шт.

25

REF

INSTRUCTION

CHAIN drive, order 11 links of No. 60 double coupler chain

1шт.

1550, 1560, 1570, and 1580 Spreader prior to P.I.N. CHC0002290

1шт.

26

241-1326

LINK,12.7mm Pitch

connecting, single pitch, No. 60-2, 3/4" pitch, not shown

1шт.

27

REF

INSTRUCTION

BELT drive, see Figure 09-30

1шт.

30

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

2шт.

31

892-11008

LOCK WASHER,8mm ID

2шт.

32

825-1408

NUT,M8, Cl 8

2шт.
