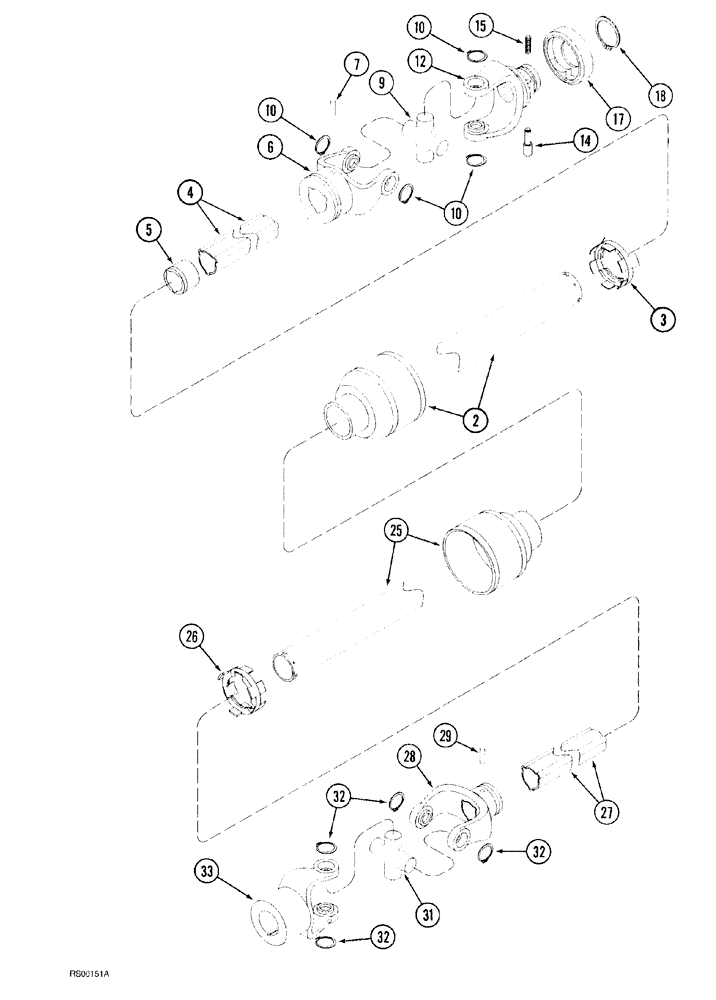

Запчасти Case IH 1500-SERIES (09-32) - TELESCOPING DRIVELINE (INPUT DRIVE, 1530 AND 1540 SPREADER, 540 RPM)

1545175C1

JOINT

SHAFT ASSEMBLY tractor half

1шт.

1545169C1

GUARD

SHIELD ASSEMBLY driveline

1шт.

2

NSS

NOT SOLD SEPARAT

SHIELD driveline, order P/N 1545169C1

1шт.

3

1544660C1

BEARING

driveline shield

1шт.

4

1545197C1

TUBE

yoke

1шт.

5

110040A1

BUSHING

NUT ring

1шт.

6

1545200C1

YOKE

UNIVERSAL JOINT YOKE tractor end

1шт.

7

763888

SPLIT PIN/SAFETY PIN

roll

1шт.

1325021C1

SPIDER

KIT cross and bearing

1шт.

9

NSS

NOT SOLD SEPARAT

CROSS driveline, order P/N 1325021C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING retaining, order P/N 1325021C1

4шт.

1544565C1

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY tractor end

1шт.

12

NSS

NOT SOLD SEPARAT

YOKE tractor, order P/N 1544565C1

1шт.

700708790

KIT

ASSEMBLY push, yoke

1шт.

14

NSS

NOT SOLD SEPARAT

PIN push, yoke, order P/N 700708790

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING push pin, yoke, order P/N 700708790

1шт.

700707181

COLLAR

ASSEMBLY yoke

1шт.

17

NSS

NOT SOLD SEPARAT

COLLAR yoke, order P/N 700707181

1шт.

18

NSS

NOT SOLD SEPARAT

RING retaining, collar, order P/N 700707181

1шт.

1545176C1

JOINT

SHAFT ASSEMBLY implement half

1шт.

1545167C1

GUARD

SHIELD ASSEMBLY driveline

1шт.

25

NSS

NOT SOLD SEPARAT

SHIELD driveline, order P/N 1545167C1

1шт.

26

1544650C1

BEARING

shield, driveline

1шт.

27

1545195C1

TUBE

yoke

1шт.

28

1545199C1

YOKE

UNIVERSAL JOINT YOKE implement end

1шт.

29

1545201C1

PIN

implement yoke

1шт.

1325021C1

SPIDER

KIT cross and bearing

1шт.

31

NSS

NOT SOLD SEPARAT

CROSS driveline, order P/N 1325021C1

1шт.

32

NSS

NOT SOLD SEPARAT

RING retaining, order P/N 1325021C1

4шт.

33

1545198C1

YOKE

UNIVERSAL JOINT YOKE implement end

1шт.
