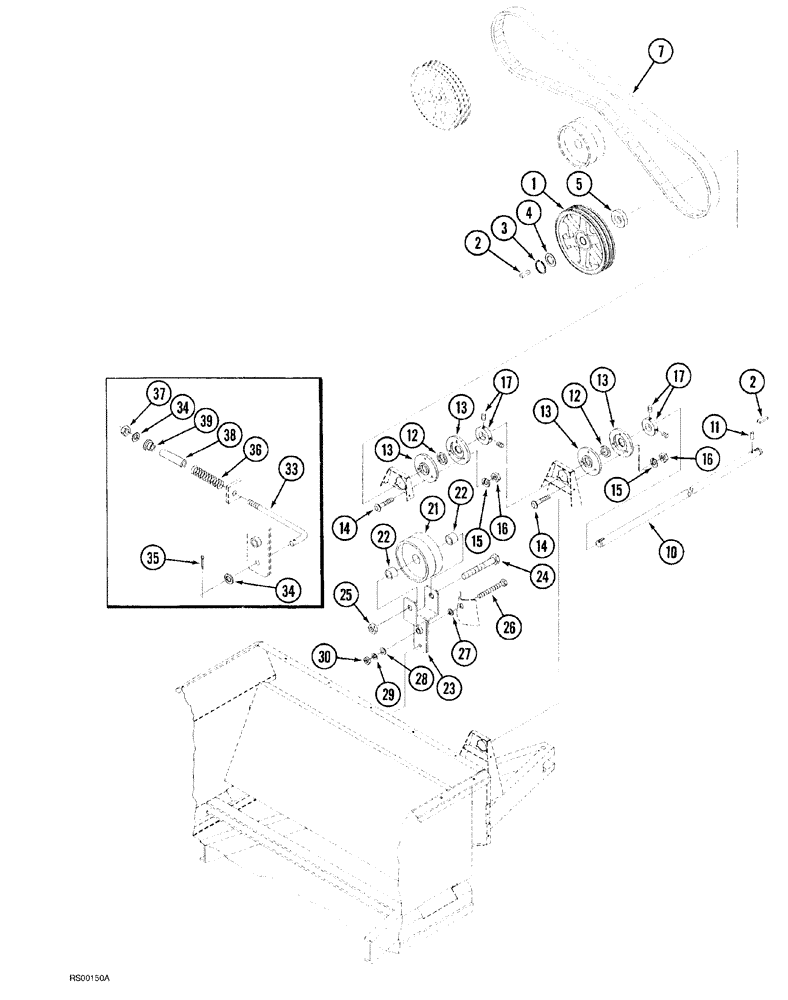

Запчасти Case IH 1500-SERIES (09-30) - INPUT DRIVE

1

1544862C1

SHEAVE

PULLEY drive, 1530 and 1540 Spreader

1шт.

1

1544592C1

SHEAVE

PULLEY drive, 540 RPM, 1550, 1560, 1570 and 1580 Spreader

1шт.

1

1544992C1

SHEAVE

PULLEY ASSEMBLY, PTO drive, 1000 RPM, 1550, 1560, 1570 and 1580 Spreader

1шт.

1545245C1

BUSHING

split, includes (3) P/N 413-430 hex bolts, 1/4" NC x 1-7/8" and (3) P/N 492-11025 lock washers, 1/4", components of P/N 1544992C1 pulley only, not shown

1шт.

2

457400R1

KEY,5/16" Sq x 1 3/4", Par

square, 5/16" x 1-3/4"

2шт.

3

100-11125

SNAP RING,#125, Ext

1шт.

4

1545088C1

BUSHING

drive pulley

1шт.

5

1544504C1

SPACER

drive pulley

1шт.

7

1544864C2

BELT,92.00" L

Drive, 1530 and 1540 Spreader

1шт.

7

1544594C2

BELT,104.00" L

Drive, 540 RPM, 1550, 1560, 1570 and 1580 Spreader

1шт.

7

1544999C1

BELT,96.00" L

Drive, 1000 RPM, 1550, 1560, 1570 and 1580 Spreader

1шт.

10

1544652C1

SHAFT

stub

1шт.

11

38-32032

PIN,7.92mm OD x 50.8mm L

5/16" x 2", Coiled

1шт.

12

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

ball

2шт.

13

1544857C1

FLANGED BEARING

bearing

4шт.

14

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

6шт.

15

892-11008

LOCK WASHER,8mm ID

6шт.

16

825-1408

NUT,M8, Cl 8

6шт.

17

557995R11

COLLAR

bearing, with set screw

2шт.

21

1545069C1

PULLEY

idler, 1530 and 1540 Spreader

1шт.

21

1545068C1

PULLEY

idler, 1550, 1560, 1570 and 1580 Spreader

1шт.

22

1544556C1

SPACER

idler pulley

2шт.

23

1544572C1

ARM

idler

1шт.

24

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

1шт.

25

832-10416

NUT,M16 x 2, Cl 8

1шт.

26

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

27

1544553C1

BUSHING

idler arm

1шт.

28

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64")

1шт.

29

892-11012

LOCK WASHER,M12

1шт.

30

829-1412

NUT,M12, Cl 10.9

1шт.

33

1544462C1

BOLT

bent anchor

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

2шт.

35

432-616

COTTER PIN,3/32" x 1"

1шт.

36

110090A1

SPRING

compression, Replaces: P/N 1544597C1

1шт.

When replacing spring 1544597C1 on spreaders prior to P.I.N. CHC0002409 with spring 110090A1 also order spacer 110091A1 and pivot 1545103C1.

1шт.

37

425-106

NUT,3/8"-16, Cl 5

2шт.

38

110091A1

SPACER

spring

1шт.

39

1545103C1

PIVOT

spring

1шт.
