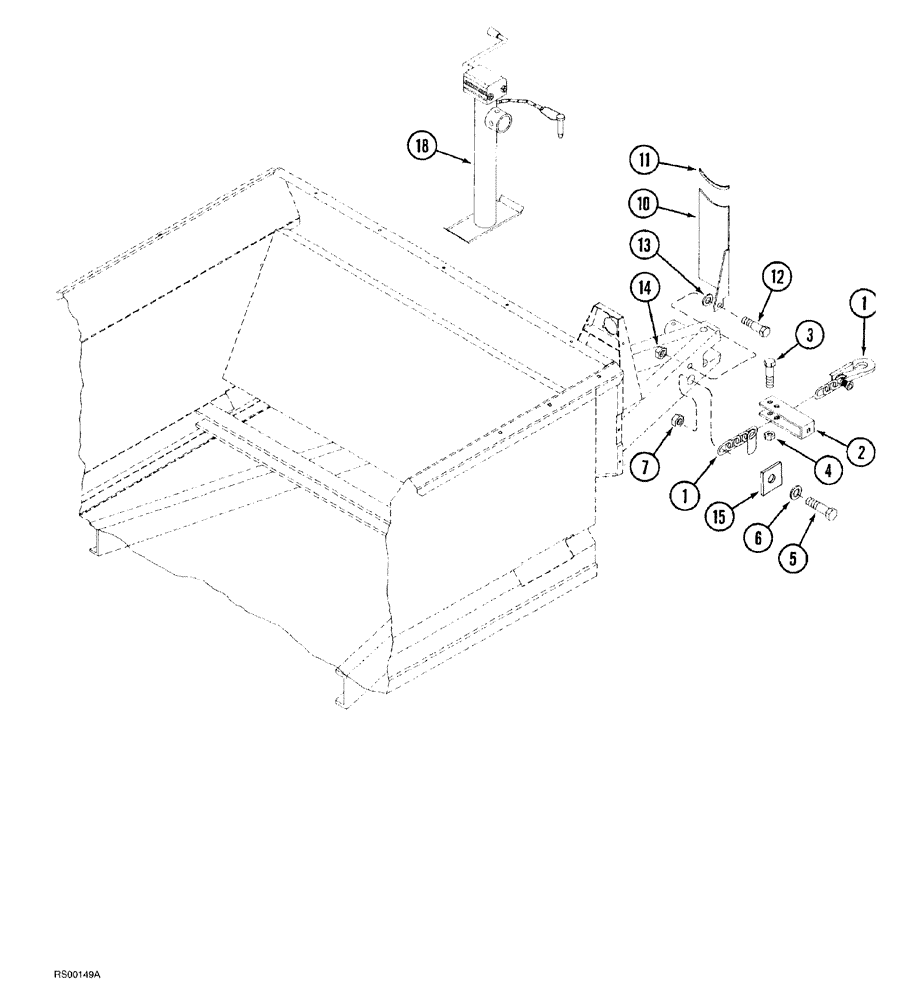

Запчасти Case IH 1500-SERIES (09-28) - TRANSPORT CHAIN AND PARKING JACK

1

700705598

CHAIN (CE)

5/16" link x 59-1/4" long, Replaces: P/N 100682C3

1шт.

2

1279163C1

CLEVIS COUPLING

chain

1шт.

3

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

1шт.

4

832-41316

NUT,M16 x 2, Cl 10

Hex

1шт.

5

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

BOLT hex, 20 - 2.5 x 70 mm

1шт.

6

495-81238

WASHER,13/16" x 3" x .238", HDN

1шт.

7

832-41320

NUT,M20 x 2.5, Cl 10

hex, self-locking, 20 mm - 2.5, class 10.9

1шт.

10

1544599C1

BRACKET

PTO storage

1шт.

11

1544937C1

GROMMET

TRIM bracket

1шт.

12

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

15

NSS

NOT SOLD SEPARAT

RETAINER chain, order Ref. 6 washer P/N 495-81238

1шт.

18

1544511C1

JACK

parking

1шт.
