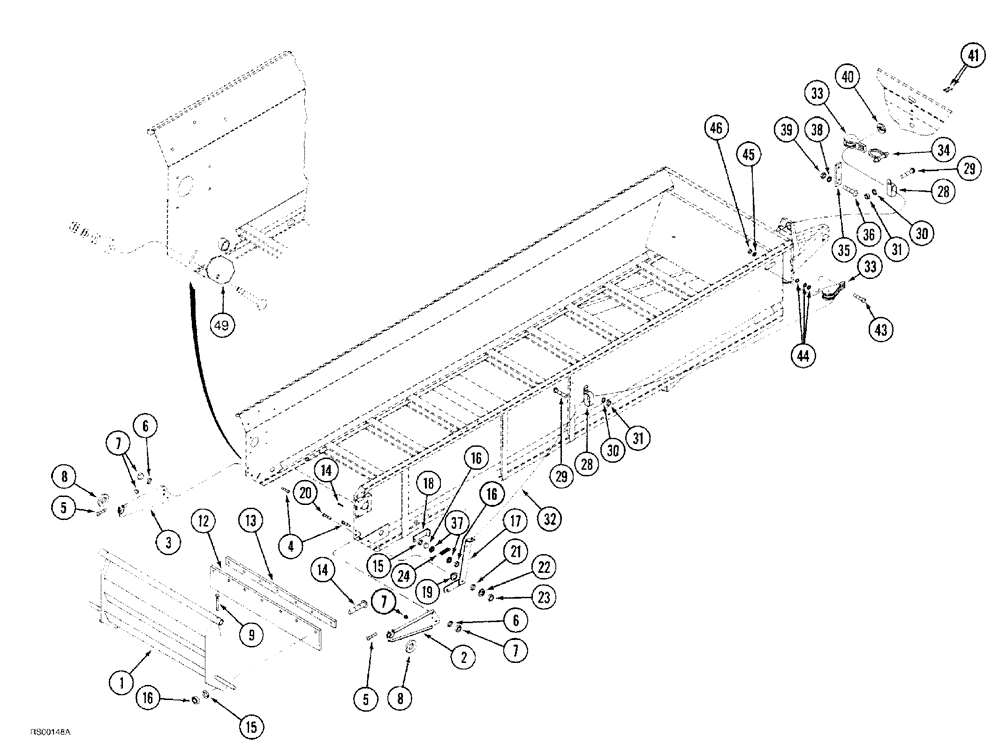

Запчасти Case IH 1500-SERIES (09-26) - SLURRY PAN

1

1545071C2

PAN

slurry, 1530 and 1540 Spreader

1шт.

1

1545072C2

PAN

slurry, 1550, 1560, 1570 and 1580 Spreader

1шт.

2

1545083C1

MOUNTING PARTS

slurry pan, right-hand

1шт.

3

1545082C1

MOUNTING PARTS

slurry pan, left-hand

1шт.

4

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

6шт.

5

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

6

892-11012

LOCK WASHER,M12

6шт.

7

829-1412

NUT,M12, Cl 10.9

8шт.

8

495-81275

WASHER,1.06" ID x 1.75" OD x 0.07" Thk

flat, 1-1/16" x 1-3/4" x 1/16"

2шт.

9

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

12

1545239C1

SEAL

end

1шт.

13

1544492C1

SEAL RETAINER

RETAINER, 1530 and 1540 Spreader

1шт.

13

1544567C1

SEAL RETAINER

RETAINER, 1550, 1560, 1570 and 1580 Spreader

1шт.

14

611-8040

CARRIAGE BOLT,M8 x 40mm, Class 4.6

carriage, 8 - 1.25 x 40 mm

7шт.

15

892-11008

LOCK WASHER,8mm ID

7шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

17

1545102C1

LATCH

slurry pan

1шт.

18

1545212C1

CLIP

latch guide

1шт.

19

1545103C1

PIVOT

latch, slurry pan

1шт.

20

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

22

892-11012

LOCK WASHER,M12

1шт.

23

829-1412

NUT,M12, Cl 10.9

1шт.

24

1545055C1

SPRING

shift control

1шт.

28

1544735C1

CLAMP

retaining

2шт.

29

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

2шт.

30

892-11008

LOCK WASHER,8mm ID

2шт.

31

825-1408

NUT,M8, Cl 8

2шт.

32

NSS

NOT SOLD SEPARAT

ROPE apron drive, procure locally

1шт.

33

1545053C2

PULLEY

ASSEMBLY rope, Includes: Ref. 43 through 46

2шт.

34

1544809C1

LINK

split, pulley retaining

2шт.

35

1544714C1

BRACKET

pulley, slurry pan, 1550, 1560, 1570 and 1580 Spreader only

1шт.

36

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

37

495-21038

WASHER,5/16"

(flat, 3/8" x 7/8" x 3/32")

1шт.

38

892-11008

LOCK WASHER,8mm ID

3шт.

39

825-1408

NUT,M8, Cl 8

3шт.

40

1544569C2

GROMMET

rope

1шт.

41

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

Break mandrel

2шт.

43

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

Part of Rope Pulley Assembly P/N 1545053C2

1шт.

44

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

Part of Rope Pulley Assembly P/N 1545053C2

1шт.

45

892-11006

LOCK WASHER,M6

1шт.

Part of Rope Pulley Assembly P/N 1545053C2

1шт.

46

825-1406

NUT,M6, Cl 8

1шт.

Part of Rope Pulley Assembly P/N 1545053C2

1шт.

49

110031A1

COVER

slot, chain tensioner

1шт.
