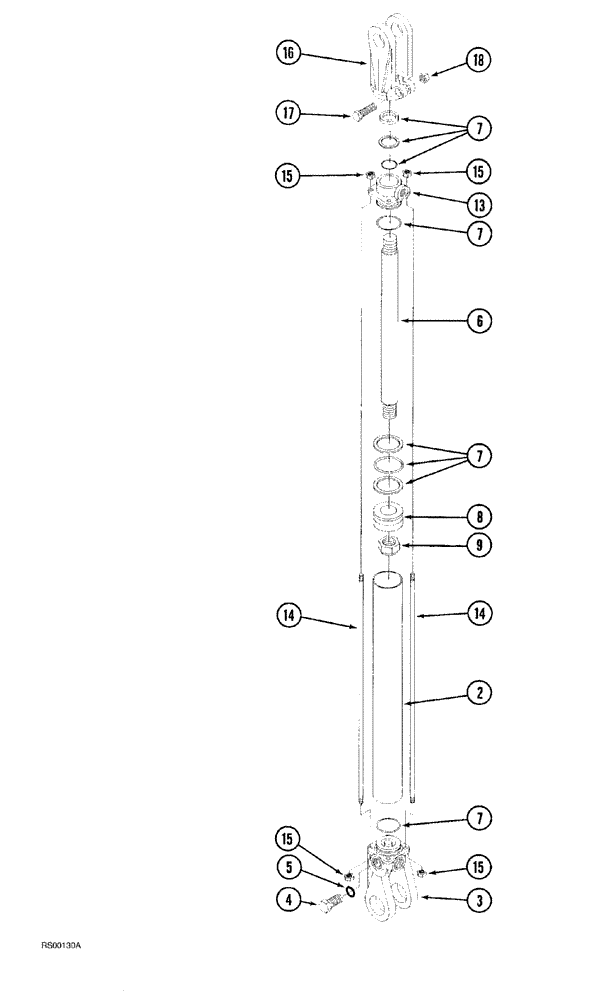

Запчасти Case IH 1500-SERIES (08-04) - HYDRAULIC CYLINDER, 2 X 16 INCH STROKE
№
Артикул
Название
Примечание
Количество
1544958C1
CYLINDER
ASSEMBLY hydraulic, 201-130-251-94 stamped on tube, order cylinder P/N 700709594, (1) plug P/N 217-435 and (2) adapters P/N 220279A1, hydro-line
1шт.
Number stamped on cylinder tube must be known so that correct service components are ordered.
1шт.
2
NSS
NOT SOLD SEPARAT
TUBE cylinder, hydro-line
1шт.
3
1545148C1
CAP
cylinder end, hydro-line
1шт.
4
76349
PLUG,9/16" - 18 ORB
Hydro-line
1шт.
6
1545151C1
ROD
cylinder, hydro-line
1шт.
7
1545152C1
SEAL KIT
repair, cylinder seal, hydro-line
1шт.
8
1545150C1
PISTON
cylinder, hydro-line
1шт.
9
231-46112
LOCK NUT,3/4"-16, GB
hex, self-locking, 3/4" NF, hydro-line
1шт.
13
1545149C1
END
CAP cylinder, rod end, hydro-line
1шт.
14
1545153C1
TIE-ROD
TIE ROD cylinder retaining, hydro-line
4шт.
15
425-106
NUT,3/8"-16, Cl 5
Hydro-line
8шт.
16
110023A1
CLEVIS
cylinder rod, Replaces: P/N 1545241C1, hydro-line
1шт.
17
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
Hydro-line
1шт.
18
425-106
NUT,3/8"-16, Cl 5
Hydro-line
1шт.
110105A1
CYLINDER
ASSEMBLY hydraulic, P/N 110103A1 or P/N 110105A1 stamped on tube, order cylinder P/N 700709594, (1) plug P/N 217-435 and (2) adapters P/N 220279A1, cross
1шт.
Number stamped on cylinder tube must be known so that correct service components are ordered.
1шт.
2
NSS
NOT SOLD SEPARAT
TUBE cylinder, cross
1шт.
3
110106A1
BASE
CAP cylinder end, cross
1шт.
4
76349
PLUG,9/16" - 18 ORB
Cross
1шт.
6
700709953
ROD
cylinder, cross
1шт.
7
700712175
SEAL KIT
KIT repair, cylinder, cross
1шт.
8
B17272
PISTON
cylinder, cross
1шт.
9
231-47112
LOCK NUT,3/4"-16, GB
hex, self-locking, 3/4" NF, cross
1шт.
13
700709933
HEAD
CAP cylinder, rod end, cross
1шт.
14
700709952
ROD
tie, cylinder retaining, cross
4шт.
15
25-106
NUT,3/8"-16, G5
hex, 3/8" NC, cross
8шт.
16
700709935
CLEVIS
cylinder rod, Replaces: P/N 1545241C1, cross
1шт.
17
61-33828
HEX SOC SCREW,3/8"-16 x 1 3/4"
BOLT hex socket, 3/8" NC x 1-3/4", cross
1шт.
18
425-106
NUT,3/8"-16, Cl 5
Cross
1шт.
5
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Hydro-line
1шт.
5
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Cross
1шт.
Выбрано товаров: 32
