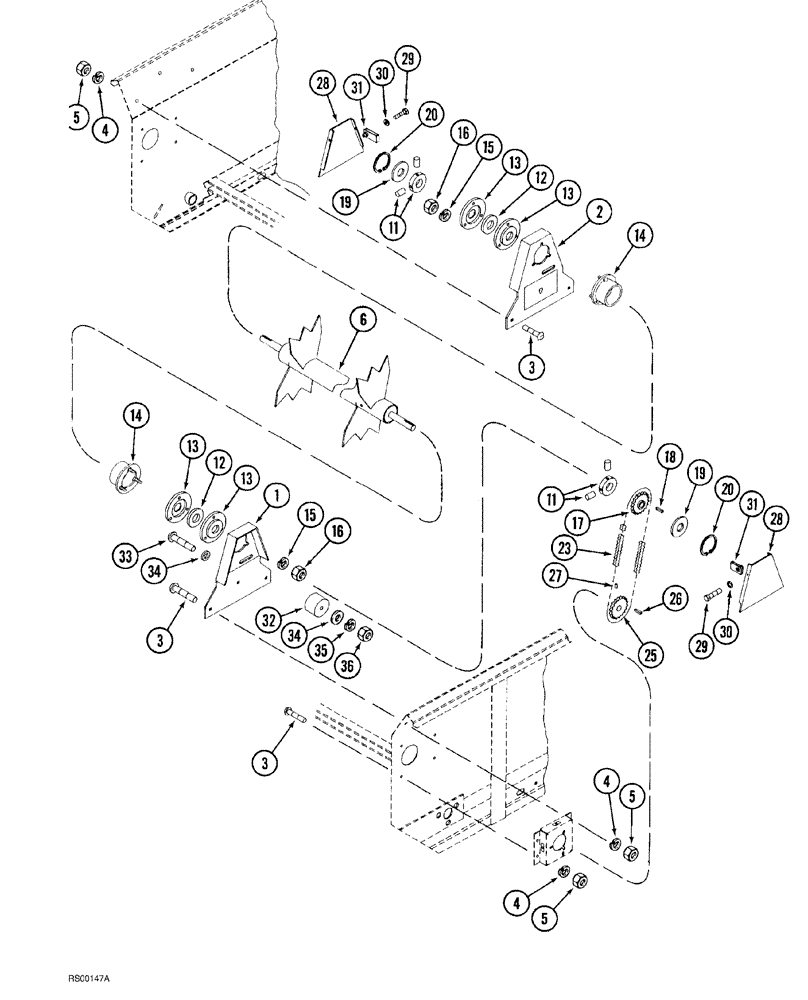

Запчасти Case IH 1500-SERIES (09-24) - UPPER BEATER

1

1545220C1

BRACKET

upper beater, right-hand, 1530 and 1540 Spreader

1шт.

1

1545222C1

BRACKET

upper beater, right-hand, 1550, 1560 and 1570 Spreader

1шт.

1

1545224C1

BRACKET

upper beater, right-hand, 1580 Spreader

1шт.

2

1545221C1

BRACKET

upper beater, left-hand, 1530 and 1540 Spreader

1шт.

2

1545223C1

BRACKET

upper beater, left-hand, 1550, 1560 and 1570 Spreader

1шт.

2

1545226C1

BRACKET

upper beater, left-hand, 1580 Spreader

1шт.

3

611-12030

CARRIAGE BOLT,M12 x 25mm, Class 4.6

carriage, 12 - 1.75 x 30 mm

6шт.

4

892-11012

LOCK WASHER,M12

6шт.

5

829-1412

NUT,M12, Cl 10.9

6шт.

6

1545218C2

BEATER

manure, upper, 1530 and 1540 Spreader

1шт.

6

1545219C1

BEATER

manure, upper, 1550, 1560, 1570 and 1580 Spreader

1шт.

11

455102R21

COLLAR

locking, bearing, includes set screws

2шт.

12

214366C91

BALL BEARING,25.40mm ID x 52mm OD

ball

2шт.

13

476766R1

FLANGED BEARING

bearing

4шт.

14

1545278C1

BEARING HOUSING

bearing

2шт.

15

892-11008

LOCK WASHER,8mm ID

6шт.

16

825-1408

NUT,M8, Cl 8

6шт.

17

1545228C1

SPROCKET ASSY.

drive, beater

1шт.

18

Q53

KEY,1/4" Sq x 1", Par

1шт.

19

495-81275

WASHER,1.06" ID x 1.75" OD x 0.07" Thk

flat, 1-1/16" x 1-3/4" x 1/16"

2шт.

20

100-11100

SNAP RING,#100, Ext

2шт.

23

NSS

NOT SOLD SEPARAT

CHAIN drive, beater, use 91 links from 10 foot roll P/N 1791D

1шт.

241-1315

LINK, CONNECTING

single pitch, No. 50, 5/8" pitch

1шт.

25

1545227C1

SPROCKET ASSY.

drive, beater

1шт.

26

457400R1

KEY,5/16" Sq x 1 3/4", Par

square, 5/16" x 1-3/4"

1шт.

27

83-13112

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

set, hex socket, cup point, 5/16" NC x 3/4"

2шт.

28

1545232C1

GUARD

drive, upper beater, 1530 and 1540 Spreader

2шт.

28

1545233C1

GUARD

drive, upper beater, 1550, 1560 and 1570 Spreader

2шт.

28

1545234C1

GUARD

drive, upper beater, 1580 Spreader

2шт.

29

1544775C1

BOLT

hex flange, 8 - 1.25 x 25 mm

4шт.

30

495-21038

WASHER,5/16"

(flat, 3/8" x 7/8" x 3/32")

4шт.

31

1545090C1

LOCK NUT

special locking, 8 mm - 1.25

4шт.

32

1544585C1

TENSIONER

chain

1шт.

33

711-12060

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

carriage, 12 - 1.75 x 60 mm

1шт.

34

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64")

1шт.

35

892-11012

LOCK WASHER,M12

1шт.

36

829-1412

NUT,M12, Cl 10.9

1шт.
