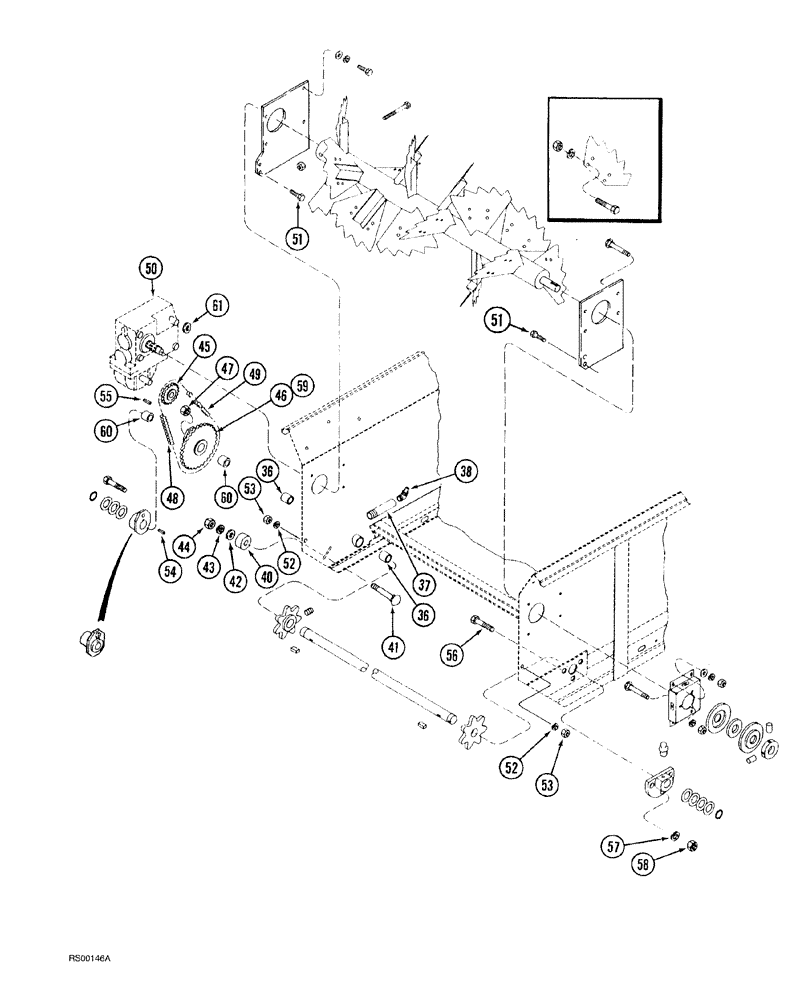

Запчасти Case IH 1500-SERIES (09-22) - LOWER BEATER

36

A13845

BUSHING

apron shaft, at side frame

2шт.

37

1545275C1

NIPPLE, LUBE

NIPPLE grease fitting, 1530 and 1540 Spreader

1шт.

37

1545237C1

NIPPLE, LUBE

NIPPLE grease fitting, 1550, 1560, 1570 and 1580 Spreader

1шт.

38

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

grease, 45°, 1/4"-28 taper x 15/16"

1шт.

40

1544585C1

TENSIONER

chain

1шт.

41

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

42

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

43

892-11012

LOCK WASHER,M12

1шт.

44

829-1412

NUT,M12, Cl 10.9

1шт.

45

1544776C1

SPROCKET ASSY.

drive, 18 tooth, 1530, 1540 and 1550 Spreader

1шт.

45

1544578C1

SPROCKET ASSY.

drive, 18 tooth, 1560, 1570 and 1580 Spreader

1шт.

45

110086A1

SPROCKET ASSY.

drive, 15 tooth super slow down, used with 48 tooth sprocket P/N 1545292C2 on 1560, 1570 and 1580 Spreader

1шт.

46

1544994C2

SPROCKET drive, 36 tooth, 1530 Spreader

1шт.

46

1544505C1

SPROCKET ASSY.

drive, 36 tooth, 1540, 1550, 1560, 1570 and 1580 Spreader

1шт.

47

832-10408

NUT,M8 x 1.25, Cl 8.8

1530 Spreader

1шт.

47

832-10412

NUT,M12 x 1.75, Cl 8

Drive shear bolt, 1540, 1550 and 1560 Spreader

1шт.

47

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, drive shear bolt, 1/2" NC, 1570 and 1580 Spreader

1шт.

48

REF

INSTRUCTION

CHAIN drive, 1530, 1540, 1550, 1560 and 1570 Spreader, order 59 links of chain P/N 1793D

1шт.

48

110077A1

CHAIN (AG)

drive, special, No. 60HH, 1580 Spreader

1шт.

49

241-4316

CHAIN LINK

connecting, single pitch, No. 60H, 3/4" pitch, 1530, 1540, 1550, 1560 and 1570 Spreader

1шт.

49

141493A1

LINK

connecting, single pitch, No. 60HH, 1580 Spreader

1шт.

50

REF

INSTRUCTION

GEARBOX drive, spreader, see Figures 09-40 through 09-56

1шт.

51

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

Used with P/N 1544546C2 and P/N 1544547C2 plates

2шт.

52

892-11012

LOCK WASHER,M12

Used with P/N 1544546C2 and P/N 1544547C2 plates

2шт.

53

829-1412

NUT,M12, Cl 10.9

Used with P/N 1544546C2 and P/N 1544547C2 plates

2шт.

54

Q74

KEY,3/8" Sq x 3", Par

square, 3/8" x 3"

1шт.

55

Q87

KEY,3/8" Sq x 1 1/2", Par

square, 3/8" x 1-1/4"

1шт.

56

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

57

892-11012

LOCK WASHER,M12

3шт.

58

829-1412

NUT,M12, Cl 10.9

3шт.

59

1545292C2

PACKAGE

KIT apron slow down, includes 48 tooth drive sprocket and installation instructions, 1550, 1560, 1570 and 1580 Spreader

1шт.

60

A13845

BUSHING

apron shaft, (1) included with P/N 1544994C1 36 tooth sprocket, (2) included with P/N 1544505C1 36 tooth sprocket and (2) included with 48 tooth apron slow down sprocket

1шт.

61

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64")

1шт.

61

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

61

95-81009

WASHER,17/32" x 7/8" x .048"

flat, 17/32" x 7/8" x 3/64"

1шт.
