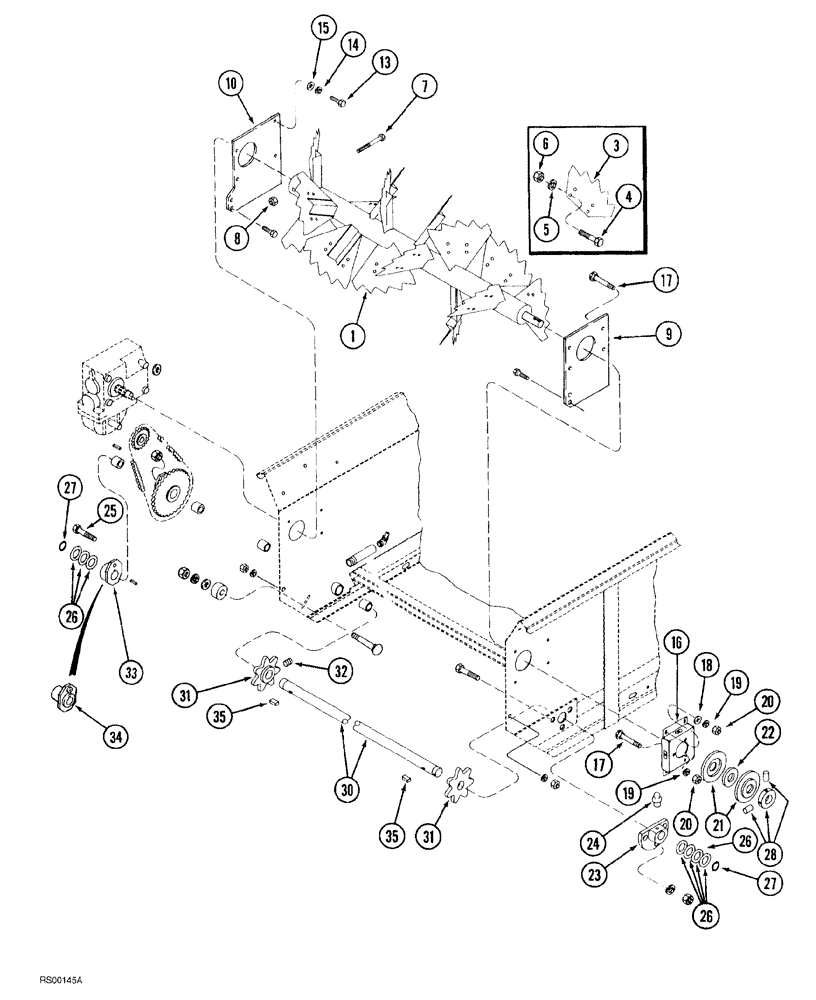

Запчасти Case IH 1500-SERIES (09-20) - LOWER BEATER

1

1544871C2

BEATER

spreader, lower, 1530 and 1540 Spreader

1шт.

1

1544712C2

BEATER

spreader, lower, 1550, 1560, 1570 and 1580 Spreader

1шт.

1

110118A1

BEATER

spreader, lower, heavy duty, 1570 and 1580 spreader

1шт.

3

1545059C1

PADDLE

beater, spreader, repairs only, 1530 and 1540 Spreader

10шт.

3

1545059C1

PADDLE

beater, spreader, repairs only, 1550, 1560, 1570 and 1580 Spreader

12шт.

4

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

829-1412

NUT,M12, Cl 10.9

1шт.

7

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

1544546C2

PLATE

beater shield, right-hand side, P.I.N. CHC0002290 and after and service replacement for P/N 1544546C1

1шт.

10

1544547C2

PLATE

beater shield, left-hand side, P.I.N. CHC0002290 and after and service replacement for P/N 1544547C1

1шт.

13

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

14

892-11012

LOCK WASHER,M12

4шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

16

1544545C1

BRACKET

bearing, beater

1шт.

17

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

7шт.

18

495-21038

WASHER,5/16"

(flat, 3/8" x 7/8" x 3/32")

4шт.

19

892-11008

LOCK WASHER,8mm ID

7шт.

20

825-1408

NUT,M8, Cl 8

7шт.

21

1544857C1

FLANGED BEARING

bearing

2шт.

22

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

ball

1шт.

23

1544515C1

FLANGED BEARING

BLOCK

1шт.

24

219-11

LUBE NIPPLE,1/4" - 28 NPTF

Straight, Taper

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Drive shear, 1530 Spreader

1шт.

25

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

Drive shear, 1540, 1550 and 1560 Spreader

1шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Drive shear, 1570 Spreader

1шт.

25

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

Drive shear, 1580 Spreader

1шт.

26

1544519C1

BUSHING

shim, 1-1/2" x 2-1/4" x 5/64"

1шт.

27

100-11150

SNAP RING,#150, Ext

2шт.

28

557995R11

COLLAR

bearing, with set screw

1шт.

30

1544869C1

SHAFT

apron, 1530 Spreader

1шт.

30

1545194C1

SHAFT

apron, 1540 Spreader

1шт.

30

1544502C1

SHAFT

apron, 1550, 1560, 1570 and 1580 Spreader

1шт.

31

1545178C1

SPROCKET ASSY.

apron, 6 tooth, 1530 Spreader

2шт.

31

1544507C1

SPROCKET ASSY.

apron, 7 tooth, 1540, 1550, 1560, 1570 and 1580 Spreader

2шт.

32

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

Cup point

2шт.

33

1544990C1

HUB

PLATE drive shear, 1530 Spreader

1шт.

34

1544503C1

HUB

PLATE drive shear 1540, 1550, 1560, 1570 and 1580 Spreader

1шт.

35

Q459

KEY,3/8" Sq x 2 1/4", Par

square, 3/8" x 2-1/4"

2шт.
