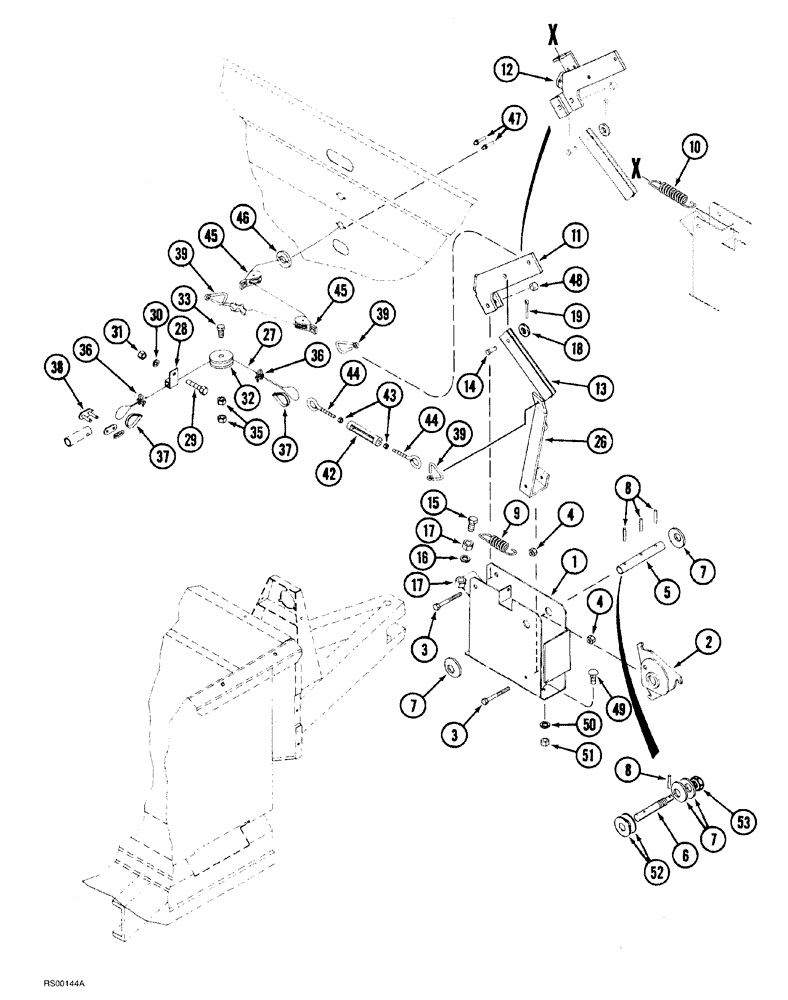

Запчасти Case IH 1500-SERIES (09-18) - SHIFT CONTROL

1

1545013C1

HOUSING

shift

1шт.

2

1545017C1

CAM

shifting

1шт.

3

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

4

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

5

1545012C1

SHAFT

shift pivot, prior to P.I.N. CHC0001985

1шт.

When replacing P/N 1545012C1 shaft with P/N 1545012C2 shaft, (2) P/N 495-21081 washers, (1) P/N 1544450C1 washer and (1) P/N 230-42112 lock nut, Ref. 7, 52 and 53, must be ordered.

1шт.

6

1545012C2

SHAFT

shift pivot, P.I.N. CHC0001985 and after

1шт.

When replacing P/N 1545012C1 shaft with P/N 1545012C2 shaft, (2) P/N 495-21081 washers, (1) P/N 1544450C1 washer and (1) P/N 230-42112 lock nut, Ref. 7, 52 and 53, must be ordered.

1шт.

7

1544450C1

BELLEVILLE WASHER

pivot shaft

1шт.

When replacing P/N 1545012C1 shaft with P/N 1545012C2 shaft, (2) P/N 495-21081 washers, (1) P/N 1544450C1 washer and (1) P/N 230-42112 lock nut, Ref. 7, 52 and 53, must be ordered.

1шт.

8

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

1/4" x 1 3/4", Slotted

1шт.

9

1545055C1

SPRING

shift control, prior to P.I.N. CHC0002290

1шт.

When replacing P/N 1545015C1 lever with P/N 110057A1 lever, (1) P/N 110059A1 spring, Ref. 9A, must be ordered.

1шт.

9a

110059A1

SPRING

shift control, P.I.N. CHC0002290 and after

1шт.

When replacing P/N 1545015C1 lever with P/N 110057A1 lever, (1) P/N 110059A1 spring, Ref. 9A, must be ordered.

1шт.

12

1545015C1

LEVER

shift, prior to P.I.N. CHC0002290

1шт.

When replacing P/N 1545015C1 lever with P/N 110057A1 lever, (1) P/N 110059A1 spring, Ref. 9A, must be ordered.

1шт.

12a

110057A1

LEVER ASSY.

shift, P.I.N. CHC0002290 and after

1шт.

When replacing P/N 1545015C1 lever with P/N 110057A1 lever, (1) P/N 110059A1 spring, Ref. 9A, must be ordered.

1шт.

13

1545007C1

PULLER

shift control

1шт.

14

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

15

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

16

892-11012

LOCK WASHER,M12

1шт.

17

829-1412

NUT,M12, Cl 10.9

2шт.

18

495-21038

WASHER,5/16"

(flat, 3/8" x 7/8" x 3/32")

1шт.

19

432-616

COTTER PIN,3/32" x 1"

1шт.

26

1545016C1

GUIDE

FOLLOWER shift control

1шт.

27

1545023C1

CABLE

shift

1шт.

28

1544735C1

CLAMP

retaining

1шт.

29

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

1шт.

30

892-11008

LOCK WASHER,8mm ID

1шт.

31

825-1408

NUT,M8, Cl 8

1шт.

32

1545056C1

PULLEY

shift cable

1шт.

33

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

35

829-1412

NUT,M12, Cl 10.9

2шт.

36

1544611C1

CLAMP

retaining

2шт.

37

1545204C1

CUP

THIMBLE cable

2шт.

38

241-1316

LINK,19.05mm Pitch

connecting, single pitch, No. 60, 3/4" pitch

1шт.

39

1544809C1

LINK

split, pulley retaining

3шт.

1544608C1

TURNBUCKLE

ASSEMBLY cable retaining

1шт.

42

NSS

NOT SOLD SEPARAT

TURNBUCKLE cable retaining

1шт.

43

NSS

NOT SOLD SEPARAT

NUT hex, special

2шт.

44

NSS

NOT SOLD SEPARAT

EYELET turnbuckle

2шт.

45

1545053C2

PULLEY

ASSEMBLY rope

2шт.

46

1544569C2

GROMMET

rope

1шт.

47

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

Break mandrel

2шт.

48

1545010C1

SPACER

shift lever

1шт.

49

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

2шт.

50

892-11008

LOCK WASHER,8mm ID

2шт.

51

825-1408

NUT,M8, Cl 8

2шт.

52

495-21081

WASHER,3/4"

flat, 13/16" x 2" x 9/64", P.I.N. CHC0001985 and after

2шт.

When replacing P/N 1545012C1 shaft with P/N 1545012C2 shaft, (2) P/N 495-21081 washers, (1) P/N 1544450C1 washer and (1) P/N 230-42112 lock nut, Ref. 7, 52 and 53, must be ordered.

1шт.

53

230-42112

LOCK NUT,3/4"-10, GA

hex, 3/4" NC, P.I.N. CHC0001985 and after

1шт.

When replacing P/N 1545012C1 shaft with P/N 1545012C2 shaft, (2) P/N 495-21081 washers, (1) P/N 1544450C1 washer and (1) P/N 230-42112 lock nut, Ref. 7, 52 and 53, must be ordered.

1шт.

REF

INSTRUCTION

ROPE shift control, procure locally

1шт.
