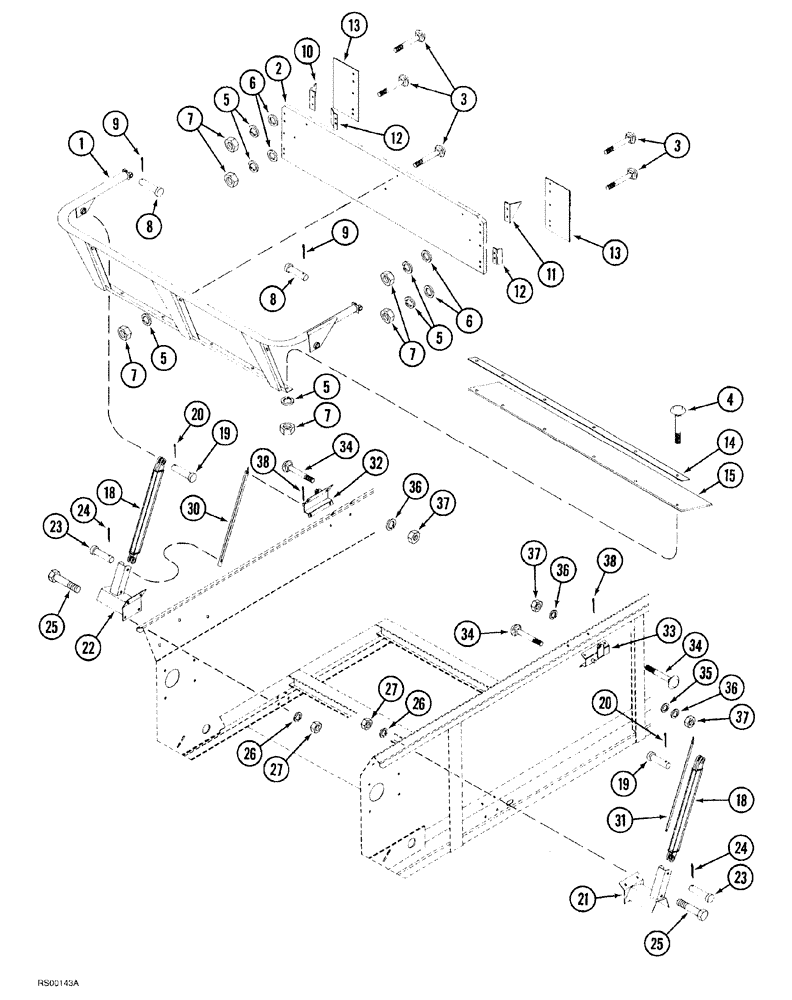

Запчасти Case IH 1500-SERIES (09-16) - HYDRAULIC ENDGATE

1

1544977C1

FRAME

endgate, 1530 and 1540 Spreader

1шт.

1

1544783C1

FRAME

endgate, 1550, 1560 and 1570 Spreader

1шт.

1

1544948C1

FRAME

endgate, 1580 Spreader

1шт.

2

1544976C1

PANEL

endgate, 1530 and 1540 Spreader

1шт.

2

1544789C1

PANEL

endgate, 1550, 1560 and 1570 Spreader

1шт.

2

1544962C1

PANEL

endgate, 1580 Spreader

1шт.

3

611-8040

CARRIAGE BOLT,M8 x 40mm, Class 4.6

carriage, 8 - 1.25 x 40 mm

18шт.

4

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

6шт.

5

892-11008

LOCK WASHER,8mm ID

24шт.

6

495-21038

WASHER,5/16"

(flat, 3/8" x 7/8" x 3/32")

6шт.

7

825-1408

NUT,M8, Cl 8

24шт.

8

27-12300

CLEVIS PIN,3/4" x 3"

hardened, 3/4" x 3"

2шт.

9

432-824

COTTER PIN,1/8" x 1 1/2"

2шт.

10

1544790C1

PANEL

corner, endgate, left-hand

1шт.

11

1544637C1

PANEL

corner, endgate, right-hand

1шт.

12

1544791C1

PANEL

BRACKET lower, endgate

2шт.

13

1545239C1

SEAL

end

2шт.

14

1544492C1

SEAL RETAINER

RETAINER, 1530 and 1540 Spreader

1шт.

14

1544567C1

SEAL RETAINER

RETAINER, 1550, 1560, 1570 and 1580 Spreader

1шт.

15

1545239C1

SEAL

end, 1530 and 1540 Spreader

1шт.

15

1544571C1

SEAL

end, 1550, 1560, 1570 and 1580 Spreader

1шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY hydraulic, see Figure 08-04 or 08-06

2шт.

19

1544926C1

PIN

cylinder, upper

2шт.

20

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

21

1545182C1

MOUNTING PARTS

cylinder, lower right, 1530 and 1540 Spreader

1шт.

21

1544796C1

MOUNTING PARTS

cylinder, lower right, 1550, 1560 and 1570 Spreader

1шт.

21

1544960C1

MOUNTING PARTS

cylinder, lower right 1580 Spreader

1шт.

22

1544795C1

MOUNTING PARTS

cylinder, lower left, 1550, 1560 and 1570 Spreader

1шт.

22

1544959C1

MOUNTING PARTS

cylinder, lower left, 1580 Spreader

1шт.

23

1544927C1

PIN

retaining, cylinder

2шт.

24

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

25

611-12030

CARRIAGE BOLT,M12 x 25mm, Class 4.6

carriage, 12 - 1.75 x 30 mm

8шт.

26

892-11012

LOCK WASHER,M12

8шт.

27

829-1412

NUT,M12, Cl 10.9

8шт.

30

1545263C1

BAR

endgate tie, left-hand,1550, 1560 and 1570 Spreader

1шт.

30

1544657C1

BAR

endgate tie, left-hand, 1580 Spreader

1шт.

31

1544713C1

BAR

endgate tie, right-hand, 1530 and 1540 Spreader

1шт.

31

1545264C1

BAR

endgate tie, right-hand, 1550, 1560 and 1570 Spreader

1шт.

31

1544928C1

PLATE

BAR endgate tie, right-hand, 1580 Spreader

1шт.

32

1544563C1

MOUNTING PARTS

endgate, left-hand

1шт.

33

1544562C1

MOUNTING PARTS

endgate, right-hand

1шт.

34

611-12030

CARRIAGE BOLT,M12 x 25mm, Class 4.6

carriage, 12 - 1.75 x 30 mm

8шт.

35

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

36

892-11012

LOCK WASHER,M12

8шт.

37

829-1412

NUT,M12, Cl 10.9

8шт.

38

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.
