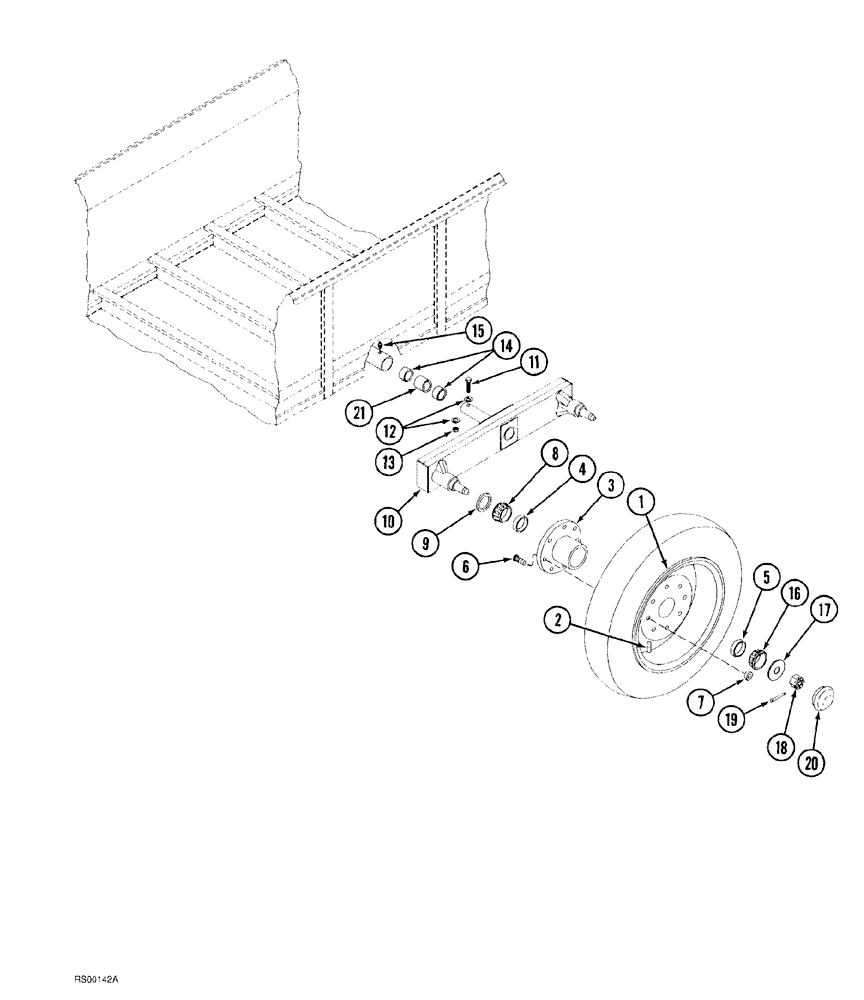

Запчасти Case IH 1500-SERIES (09-14) - AXLE AND WHEEL (1570 AND 1580 SPREADER)
№
Артикул
Название
Примечание
Количество
1
1544996C1
WHEEL
axle, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
1
1544997C1
WHEEL
axle, 16.5 x 16.1 flotation tire, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
2
387897R91
VALVE STEM
inflation, flotation tire only, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
1545165C1
HUB
ASSEMBLY wheel, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
3
NSS
NOT SOLD SEPARAT
HUB wheel, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
1шт.
4
BEARING CUP,90mm OD x 18.5mm W
roller, tapered, inner, 3-35/64" OD, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
1шт.
5
663558R1
BEARING CUP
roller, tapered, outer, 2-57/64" OD, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
1шт.
6
366021R2
BOLT,Round, 5/8" - 18 x 2 1/4"
fluted, 5/8" NF x 2-9/16", 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
8шт.
7
554480R1
WHEEL NUT
hex, special, 5/8" NF, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
32шт.
8
A61447
ROLLER BEARING,2.1651" ID x 0.9045" Thk
roller, tapered, inner, 2-1/16" ID, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
9
1545158C1
SEAL
spindle, wheel, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
10
1544508C1
ROCKER ARM
AXLE tandem spindle, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
2шт.
11
814-16140
BOLT,Hex, M16 x 2 x 140mm, Cl 8.8
BOLT hex, 16 - 2.0 x 140 mm, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
2шт.
12
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
13
832-41316
NUT,M16 x 2, Cl 10
Hex, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
2шт.
14
1544497C1
BUSHING
axle pivot, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
2шт.
15
219-11
LUBE NIPPLE,1/4" - 28 NPTF
Straight, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
2шт.
16
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
roller, tapered, outer, 1-5/8" inch ID, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
17
496-31106
WASHER,1 1/16" x 2" x .219", HDN
flat, hardened, 1-1/16" x 2" x 7/32", 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
18
25-1316
NUT,1"-14, G5
570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
19
32-1436
COTTER PIN,7/32" x 2 1/4"
1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
20
1545161C1
CAP
hub, wheel, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
4шт.
21
110098A1
SPACER
axle bushing, 1570 Spreader prior to P.I.N. CHC0002290 and 1580 Spreader
2шт.
1
1544995C1
WHEEL
axle, 1570 Spreader P.I.N. CHC0002290 and after
4шт.
1
1544997C1
WHEEL
axle, 16.5 x 16.1 flotation tire, 1570 Spreader P.I.N. CHC0002290 and after
4шт.
2
387897R91
VALVE STEM
inflation, flotation tire only, 1570 Spreader P.I.N. CHC0002290 and after
4шт.
1545164C1
HUB
ASSEMBLY wheel, 1570 Spreader P.I.N. CHC0002290 and after
4шт.
3
NSS
NOT SOLD SEPARAT
HUB wheel, 1570 Spreader P.I.N. CHC0002290 and after
1шт.
4
619387R1
BEARING CUP
roller, tapered, inner, 3-1/16" OD, 1570 Spreader P.I.N. CHC0002290 and after
1шт.
5
B12408
BEARING CUP,59.156 mm OD x 11.862 mm
roller bearing, tapered, outer, 1570 Spreader P.I.N. CHC0002290 and after
1шт.
6
T57455
WHEEL BOLT
BOLT wheel, 1570 Spreader P.I.N. CHC0002290 and after
8шт.
7
G49041
WHEEL NUT
wheel, special, 9/16" NF, 1570 Spreader P.I.N. CHC0002290 and after
32шт.
8
G15215
ROLLER BEARING
roller, tapered, inner, 1570 Spreader P.I.N. CHC0002290 and after
4шт.
9
1545157C1
SEAL
spindle, wheel, 1570 Spreader P.I.N. CHC0002290 and after
4шт.
10
110061A1
ARM ASSY.
AXLE tandem spindle rocker, 1570 Spreader P.I.N. CHC0002290 and after
2шт.
11
814-16140
BOLT,Hex, M16 x 2 x 140mm, Cl 8.8
BOLT hex, 16 - 2.0 x 140 mm, 1570 Spreader P.I.N. CHC0002290 and after
2шт.
12
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
1570 Spreader P.I.N. CHC0002290 and after
4шт.
13
832-41316
NUT,M16 x 2, Cl 10
Hex, 1570 Spreader P.I.N. CHC0002290 and after
2шт.
14
1544497C1
BUSHING
axle pivot, 1570 Spreader P.I.N. CHC0002290 and after
2шт.
15
219-11
LUBE NIPPLE,1/4" - 28 NPTF
Straight, 1570 Spreader P.I.N. CHC0002290 and after
2шт.
16
B12409
BEARING, ROLLER,31.763 mm ID x 16.84 mm
tapered, outer, 1570 Spreader P.I.N. CHC0002290 and after
4шт.
17
495-21081
WASHER,3/4"
flat, 13/16" x 2" x 9/64", 1570 Spreader P.I.N. CHC0002290 and after
4шт.
18
425-1312
SLOTTED NUT,3/4"-16, G5
hex, 3/4" NF, 1570 Spreader P.I.N. CHC0002290 and after
4шт.
19
32-1028
COTTER PIN,5/32" x 1 3/4"
1570 Spreader P.I.N. CHC0002290 and after
4шт.
20
1545160C1
CAP
hub, wheel, 1570 Spreader P.I.N. CHC0002290 and after
4шт.
21
110098A1
SPACER
axle bushing, 1570 Spreader P.I.N. CHC0002290 and after
2шт.
Выбрано товаров: 46
