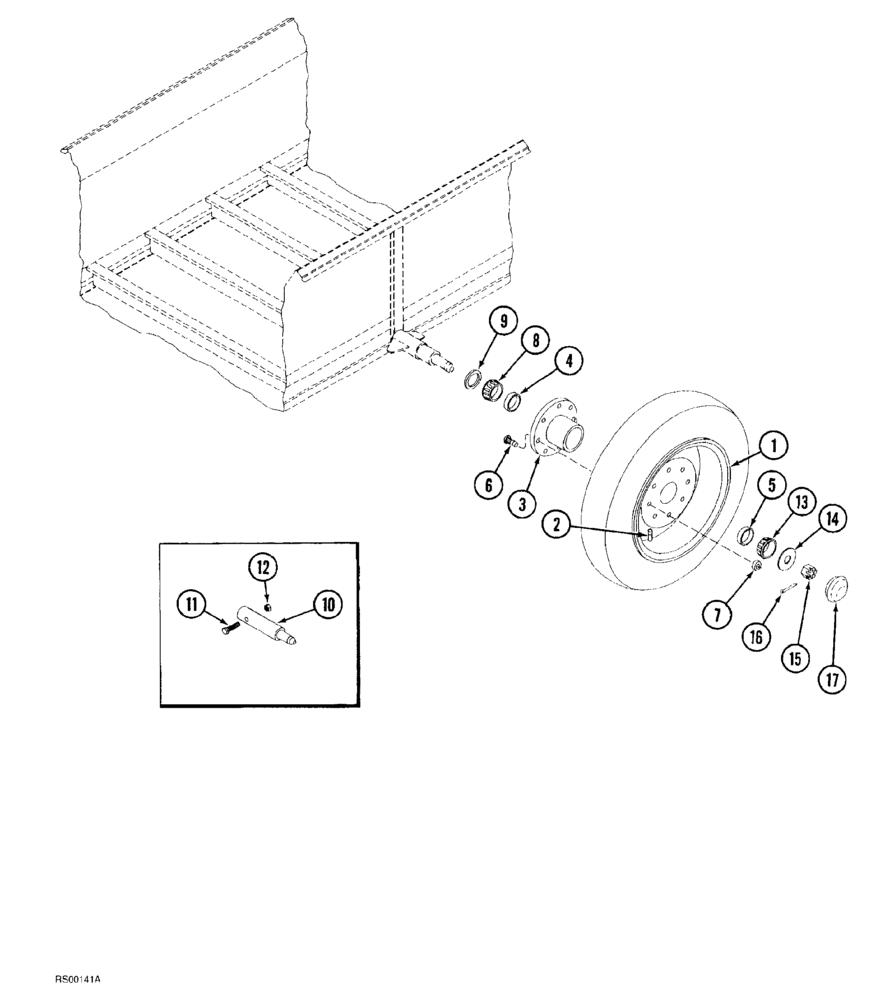

Запчасти Case IH 1500-SERIES (09-12) - AXLE AND WHEEL (1550 AND 1560 SPREADER)

1

1544995C1

WHEEL

axle, W8L-20, 1550 Spreader

2шт.

1

1544997C1

WHEEL

axle, W11C-16, 1550 Spreader

2шт.

2

387897R91

VALVE STEM

inflation, flotation tire only, 1550 Spreader

2шт.

1545164C1

HUB

ASSEMBLY wheel, 1550 Spreader

2шт.

3

NSS

NOT SOLD SEPARAT

HUB wheel, 1550 Spreader

1шт.

4

619387R1

BEARING CUP

roller, tapered, inner, 3-1/16" OD, 1550 Spreader

1шт.

5

651817R1

BEARING CUP

roller, tapered, outer, 1550 Spreader

1шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

6

T57455

WHEEL BOLT

BOLT wheel, special, 1550 Spreader

8шт.

7

G49041

WHEEL NUT

wheel, special, 9/16" NF, 1550 Spreader

16шт.

8

G15215

ROLLER BEARING

roller, tapered, inner, 1550 Spreader

2шт.

9

1545157C1

SEAL

spindle, wheel, 1550 Spreader

2шт.

10

1544732C1

SPINDLE

wheel, axle, prior to P.I.N. CHC0002860, 1550 Spreader

2шт.

11

614-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8, Full Thd

1550 Spreader

2шт.

12

832-41312

NUT,M12 x 1.75, Cl 10

1550 Spreader

2шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

roller, tapered, outer, 1550 Spreader

2шт.

14

495-21081

WASHER,3/4"

flat, 13/16" x 2" x 9/64", 1550 Spreader

2шт.

15

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4" inch NF, 1550 Spreader

2шт.

16

32-1028

COTTER PIN,5/32" x 1 3/4"

1550 Spreader

2шт.

17

1545160C1

CAP

hub, wheel, 1550 Spreader

2шт.

1

1544996C1

WHEEL

axle, W8L-20, 1560 Spreader

2шт.

1

1544997C1

WHEEL

axle, W11C-16, 1560 Spreader

2шт.

2

387897R91

VALVE STEM

inflation, flotation tire only, 1560 Spreader

2шт.

1545165C1

HUB

ASSEMBLY wheel, 1560 Spreader

2шт.

3

NSS

NOT SOLD SEPARAT

HUB wheel, 1560 Spreader

1шт.

4

625743C1

BEARING CUP,90mm OD x 18.5mm W

roller, tapered, inner, 3-35/64" OD, 1560 Spreader

1шт.

5

663558R1

BEARING CUP

roller, tapered, outer, 2-57/64" OD, 1560 Spreader

1шт.

6

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

fluted, 5/8" NF x 2-9/16", 1560 Spreader

8шт.

7

554480R1

WHEEL NUT

hex, special, 5/8" NF, 1560 Spreader

16шт.

8

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

roller, tapered, inner, 2-1/16" ID, 1560 Spreader

2шт.

9

1545158C1

SEAL

spindle, wheel, 1560 Spreader

2шт.

10

1544998C1

SPINDLE

wheel, axle, prior to P.I.N. CHC0002328, 1560 Spreader

2шт.

11

814-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

BOLT hex, 16 - 2.0 x 140 mm, 1560 Spreader

2шт.

12

832-41316

NUT,M16 x 2, Cl 10

Hex, 1560 Spreader

2шт.

13

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

roller, tapered, outer, 1-5/8" ID, 1560 Spreader

2шт.

14

496-31106

WASHER,1 1/16" x 2" x .219", HDN

flat, hardened, 1-1/16" x 2" x 7/32", 1560 Spreader

2шт.

15

25-1316

NUT,1"-14, G5

1560 Spreader

2шт.

16

32-1436

COTTER PIN,7/32" x 2 1/4"

1560 Spreader

2шт.

17

1545161C1

CAP

hub, wheel, 1560 Spreader

2шт.
