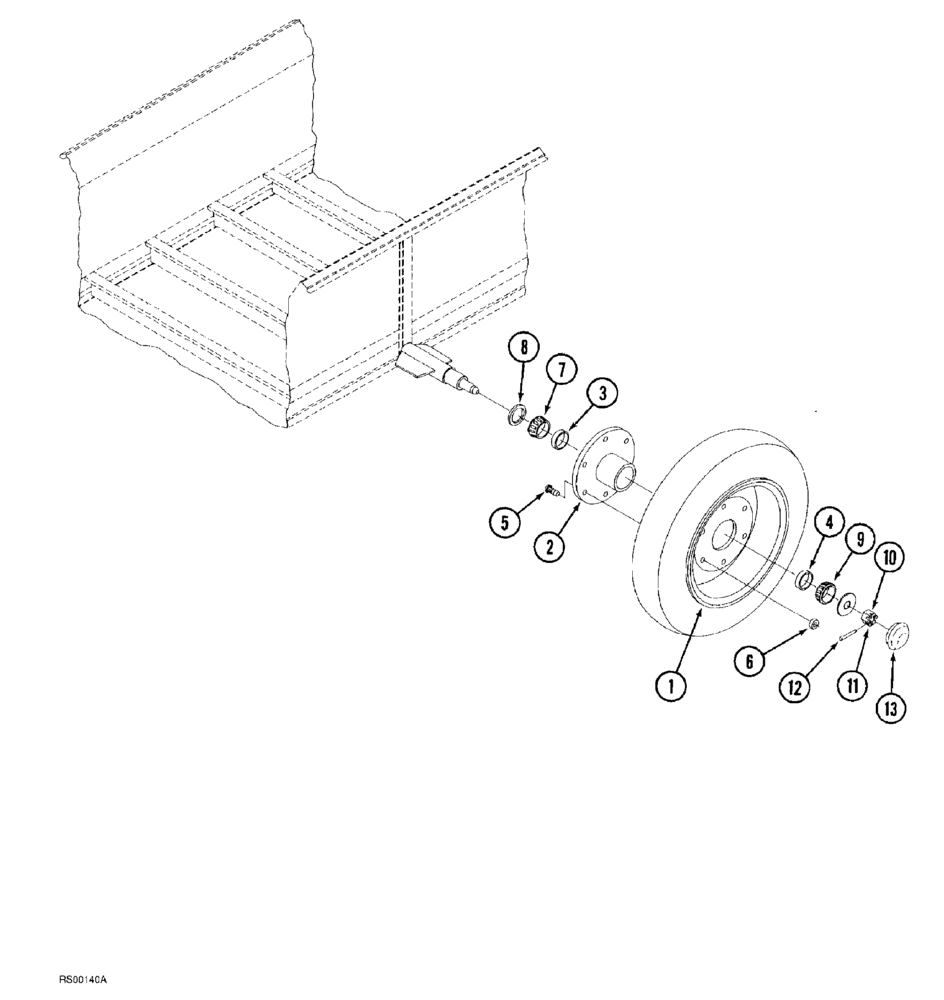

Запчасти Case IH 1500-SERIES (09-10) - AXLE AND WHEEL (1530 AND 1540 SPREADER)
№
Артикул
Название
Примечание
Количество
1
1544745C1
WHEEL
axle, 1530 Spreader
2шт.
1545162C1
HUB
ASSEMBLY wheel, 1530 Spreader
2шт.
2
NSS
NOT SOLD SEPARAT
HUB wheel, 1530 Spreader
1шт.
3
61801C1
BEARING CUP,63mm OD x 13.5mm W
roller, tapered, inner, 2-31/64" OD,1530 Spreader
1шт.
4
651817R1GV
BEARING CUP
Value, Bearing Cup
1шт.
5
E16592
WHEEL BOLT
BOLT press-in, special, 1/2" NF x 1-7/8", 1530 Spreader
6шт.
6
453770R1
WHEEL NUT
hex, 1/2" NF, 1530 Spreader
12шт.
7
61802C91
ROLLER BEARING,38mm ID x 17mm Thk
roller, tapered, inner, 1-15/32" ID, 1530 Spreader
2шт.
8
110060A1
OIL SEAL
spindle, wheel, Replaces: P/N 1545155C1, 1530 Spreader
2шт.
10
495-31094
WASHER,0.94" ID x 2" OD x 0.17" Thk
flat, 15/32" x 2" x 5/32", 1530 Spreader
2шт.
11
425-1314
SLOTTED NUT,7/8"-14, G5
1530 Spreader
2шт.
12
32-1028
COTTER PIN,5/32" x 1 3/4"
1530 Spreader
2шт.
13
1545159C1
CAP
hub, wheel, 1530 Spreader
2шт.
1
1544745C1
WHEEL
axle, 1540 Spreader
2шт.
700709830
HUB
ASSEMBLY wheel, 1540 Spreader
2шт.
2
NSS
NOT SOLD SEPARAT
HUB wheel, 1540 Spreader
1шт.
3
663558R1
BEARING CUP
roller, tapered, inner, 2-57/64" OD, 1540 Spreader
1шт.
5
T57455
WHEEL BOLT
BOLT wheel, special, 1540 Spreader
6шт.
6
G49041
WHEEL NUT
wheel, special, 9/16" NF, 1540 Spreader
12шт.
7
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
roller, tapered, inner, 1-5/8" ID, 1540 Spreader
2шт.
8
1545156C1
SEAL
spindle, wheel, 1540 Spreader
2шт.
10
495-21081
WASHER,3/4"
flat, 13/16" x 2" x 9/64", 1540 Spreader
2шт.
11
425-1312
SLOTTED NUT,3/4"-16, G5
hex, 3/4" NF, 1540 Spreader
2шт.
12
32-1028
COTTER PIN,5/32" x 1 3/4"
1540 Spreader
2шт.
13
1545160C1
CAP
hub, wheel, 1540 Spreader
2шт.
Выбрано товаров: 29
