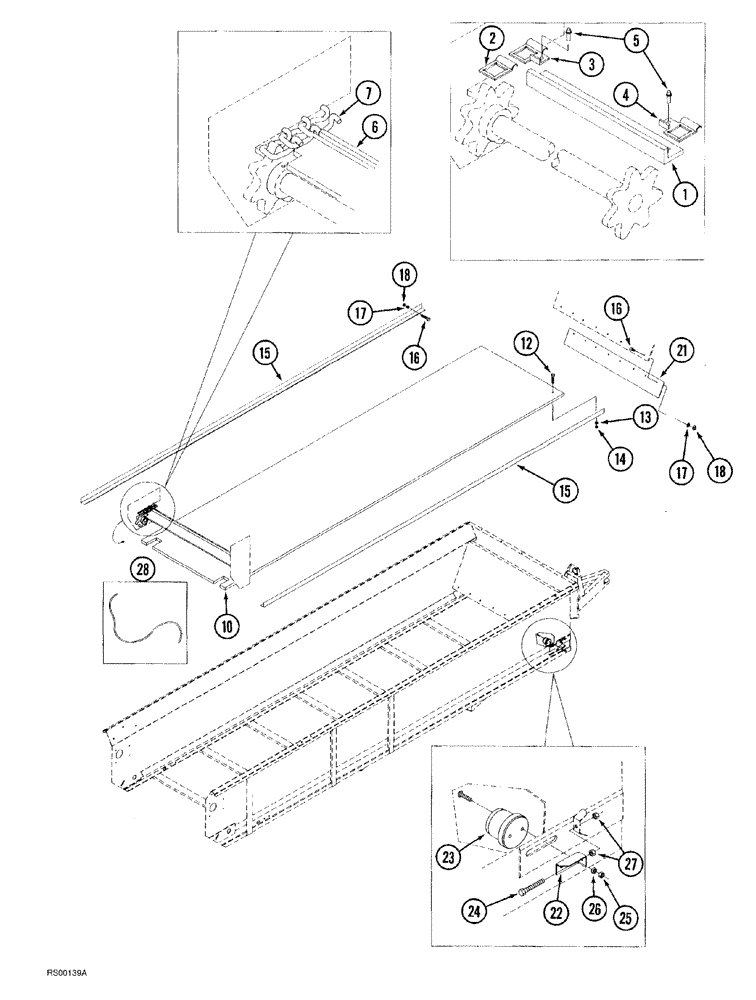

Запчасти Case IH 1500-SERIES (09-08) - CHAIN SLATS AND FLOOR

1

1545058C1

ANGLE

SLAT apron chain

11шт.

2

CS67H

CHAIN (AG)

plain link, 10 foot long

1шт.

3

820404C1

LINK

left-hand attaching

1шт.

4

820405C1

LINK

right-hand attaching

1шт.

5

106915

RIVET,Tr Hd, 5/16" x 7/8"

2шт.

6

1544870C1

SLAT

apron chain, 1540 Spreader

13шт.

6

1544582C1

SLAT

apron chain, 1550 Spreader

14шт.

6

1544582C1

SLAT

apron chain, 1560 Spreader

17шт.

6

1544582C1

SLAT

apron chain, 1570 Spreader

20шт.

6

1544582C1

SLAT

apron chain, 1580 Spreader

23шт.

7

1544581C1

LINK

apron chain, 1540 Spreader

222шт.

7

1544581C1

LINK

apron chain, 1550 Spreader

200шт.

7

1544581C1

LINK

apron chain, 1560 Spreader

234шт.

7

1544581C1

LINK

apron chain, 1570 Spreader

288шт.

7

1544581C1

LINK

apron chain, 1580 Spreader

320шт.

10

1544910C2

FLOOR

spreader, 1530 Spreader

1шт.

10

1544866C2

FLOOR

spreader, 1540 Spreader

1шт.

10

1544691C2

FLOOR

spreader, 1550 Spreader

1шт.

10

1544654C2

FLOOR

spreader, 1560 Spreader

1шт.

10

1544498C2

FLOOR

spreader, 1570 Spreader

1шт.

10

1544680C2

FLOOR

spreader, 1580 Spreader

1шт.

12

611-8040

CARRIAGE BOLT,M8 x 40mm, Class 4.6

carriage, 8 - 1.25 x 40 mm

5шт.

13

892-11008

LOCK WASHER,8mm ID

5шт.

14

825-1408

NUT,M8, Cl 8

5шт.

15

1544867C1

GUIDE

STRIP apron chain wear, 1540 Spreader

4шт.

15

1544737C1

GUIDE

STRIP apron chain wear, 1550 Spreader

4шт.

15

1544690C1

GUIDE

STRIP apron chain wear, 1560 Spreader

4шт.

15

1544766C1

GUIDE

STRIP apron chain wear, 1570 Spreader

4шт.

15

1544765C1

GUIDE

STRIP apron chain wear, 1580 Spreader

4шт.

16

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

1шт.

17

892-11008

LOCK WASHER,8mm ID

1шт.

18

825-1408

NUT,M8, Cl 8

1шт.

21

1545239C1

SEAL

end

1шт.

22

1544516C1

BRACKET

apron slide, right-hand

1шт.

22a

1544517C1

BRACKET

apron slide, left-hand, not shown

1шт.

23

1544501C2

SLIDE

apron

2шт.

24

614-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8, Full Thd

2шт.

25

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

4шт.

26

892-11012

LOCK WASHER,M12

4шт.

27

829-1412

NUT,M12, Cl 10.9

4шт.

28

REF

INSTRUCTION

ROPE adhesive, order P/N 1545287C1 and, Serial Range: cut-length

1шт.
