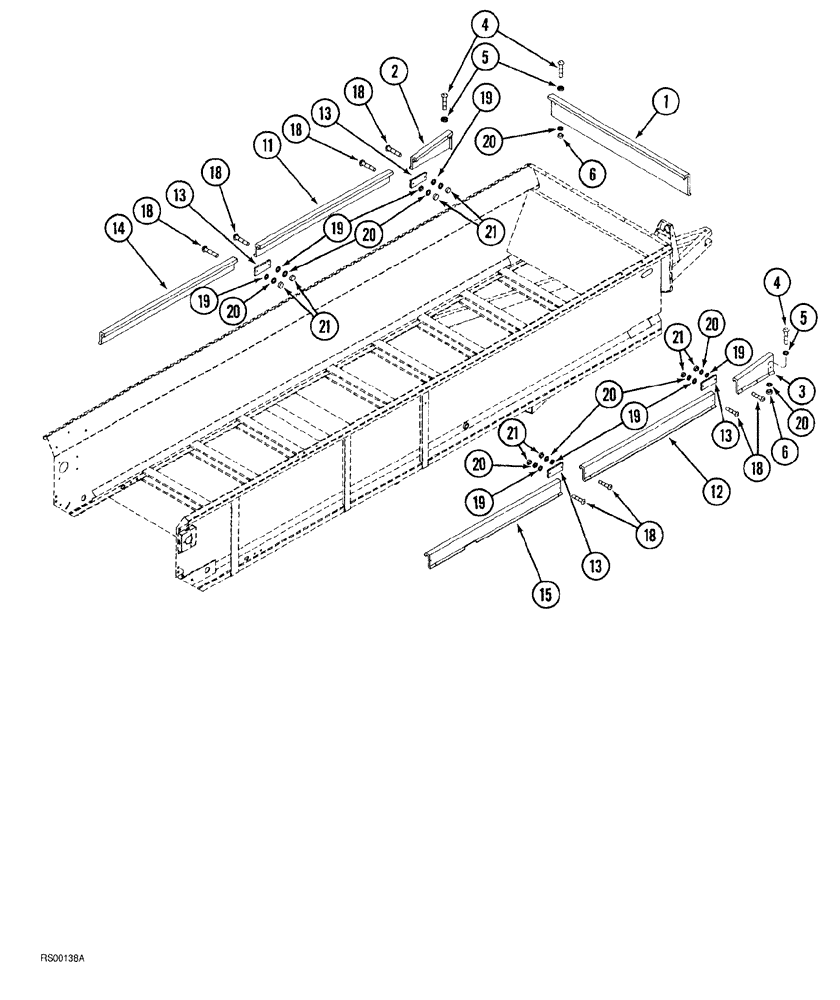

Запчасти Case IH 1500-SERIES (09-06) - SPLASH GUARD

1

1544957C1

GUARD

splash, front, 1530 and 1540 Spreader

1шт.

1

1544956C1

GUARD

splash, front, 1550, 1560, 1570 and 1580 Spreader

1шт.

2

1544944C1

GUARD

splash, left

1шт.

3

1544945C1

GUARD

splash, right

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Splash guard

1шт.

5

495-21038

WASHER,5/16"

(flat, 3/8" x 7/8" x 3/32"), Splash guard

1шт.

6

825-1408

NUT,M8, Cl 8

Splash guard

1шт.

11

1544949C1

EXTENSION

left side, 1530 Spreader

1шт.

11

1544950C1

EXTENSION

left side, 1540 Spreader

1шт.

11

1544951C1

EXTENSION

left side, 1550 Spreader

1шт.

11

1544952C1

EXTENSION

left side, 1560 Spreader

1шт.

11

1544966C1

EXTENSION

left side, 1570 Spreader

1шт.

11

1544968C1

EXTENSION

left side, 1580 Spreader

1шт.

12

1545087C1

EXTENSION

right side, 1530 Spreader

1шт.

12

1545086C1

EXTENSION

right side, 1540 Spreader

1шт.

12

1545085C1

EXTENSION

right side, 1550 Spreader

1шт.

12

1545084C1

EXTENSION

right side, 1560 Spreader

1шт.

12

1544966C1

EXTENSION

right side, 1570 Spreader

1шт.

12

1544968C1

EXTENSION

right side, 1580 Spreader

1шт.

13

1544955C1

CONNECTOR, ELEC

CONNECTOR BRACKET side extension, 1530, 1540, 1550 and 1560 Spreader

2шт.

13

1544955C1

CONNECTOR, ELEC

CONNECTOR BRACKET side extension, 1570 and 1580 Spreader

4шт.

14

1544953C1

EXTENSION

side, left rear, 1570 Spreader

1шт.

14

1544954C1

EXTENSION

side, left rear, 1580 Spreader

1шт.

15

1544938C1

EXTENSION

side, right rear, 1570 Spreader

1шт.

15

1544936C1

EXTENSION

side, right rear, 1580 Spreader

1шт.

18

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm, side extension

1шт.

19

495-21038

WASHER,5/16"

(flat, 3/8" x 7/8" x 3/32"), Side extension

1шт.

20

892-11008

LOCK WASHER,8mm ID

Side extension

1шт.

21

825-1408

NUT,M8, Cl 8

Side extension

1шт.
