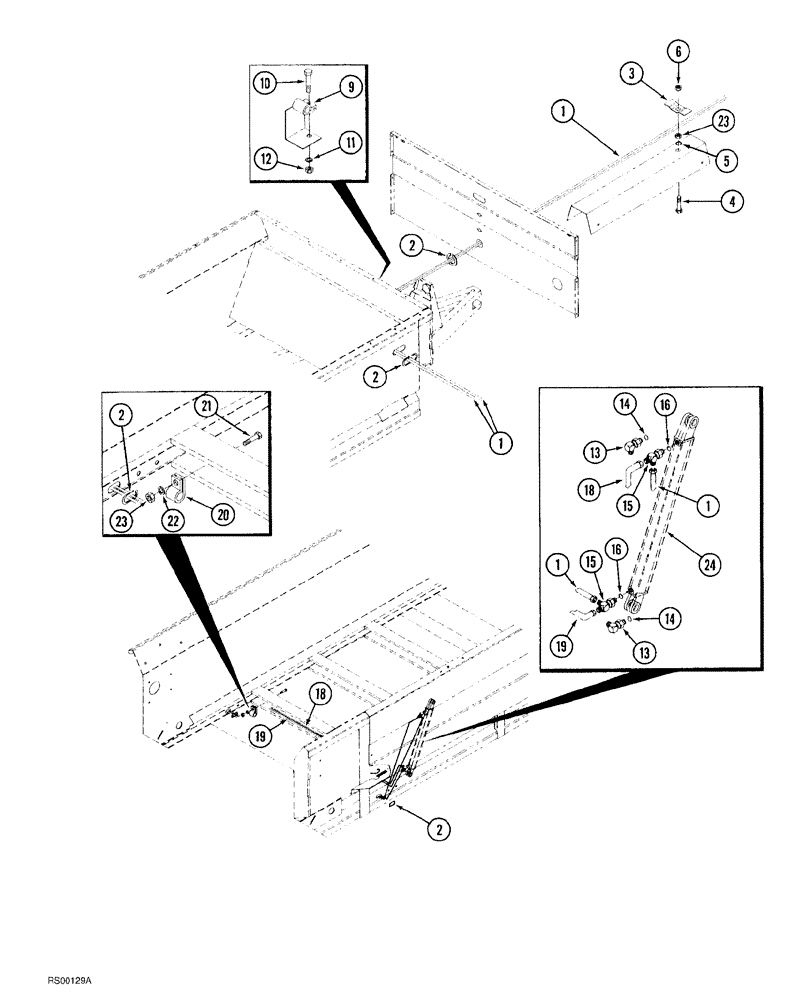

Запчасти Case IH 1500-SERIES (08-02) - ENDGATE HYDRAULIC SYSTEM

1

1284330C1

HOSE

240 inch/6096 mm long, to endgate cylinder, 1530 Spreader

2шт.

1

129673C2

HOSE

280 inch/7112 mm long, to endgate cylinder, 1540 Spreader

2шт.

1

1284260C1

HYDRAULIC HOSE

265 inch/6731 mm long, to endgate cylinder, 1550 Spreader

2шт.

1

1284264C1

HYDRAULIC HOSE

290 inch/7365 mm long, to endgate cylinder, 1560 Spreader

2шт.

1

1284302C1

HYDRAULIC HOSE

330 inch/8382 mm long, to endgate cylinder, 1570 Spreader

2шт.

1

1284299C1

HYDRAULIC HOSE

350 inch/8890 mm long, to endgate cylinder, 1580 Spreader

2шт.

2

1544937C1

GROMMET

TRIM hydraulic hose

1шт.

3

451641

CLAMP

retaining, hose

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

892-11008

LOCK WASHER,8mm ID

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

9

1544735C1

CLAMP

retaining

1шт.

10

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

1шт.

11

892-11008

LOCK WASHER,8mm ID

1шт.

12

825-1408

NUT,M8, Cl 8

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, used with single cylinder system

2шт.

15

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Used on right hand cylinder on dual cylinder system only

2шт.

18

1544879C1

HOSE

endgate cross, top, 126"/3200 mm long, 1550, 1560 and 1570 Spreader

1шт.

18

1544877C1

HOSE

endgate cross, top, 134"/3403 mm long, 1580 Spreader

1шт.

19

1544880C1

HOSE

endgate cross, bottom, 97"/2464 mm long, 1550, 1560 and 1570 Spreader

1шт.

19

1544878C1

HOSE

endgate cross, bottom, 104"/2642 mm long, 1580 Spreader

1шт.

20

1544735C1

CLAMP

retaining

2шт.

21

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT carriage, 8 - 1.25 x 25 mm

2шт.

22

892-11008

LOCK WASHER,8mm ID

2шт.

23

825-1408

NUT,M8, Cl 8

3шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY hydraulic, see Figure 08-04 or 08-06

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
