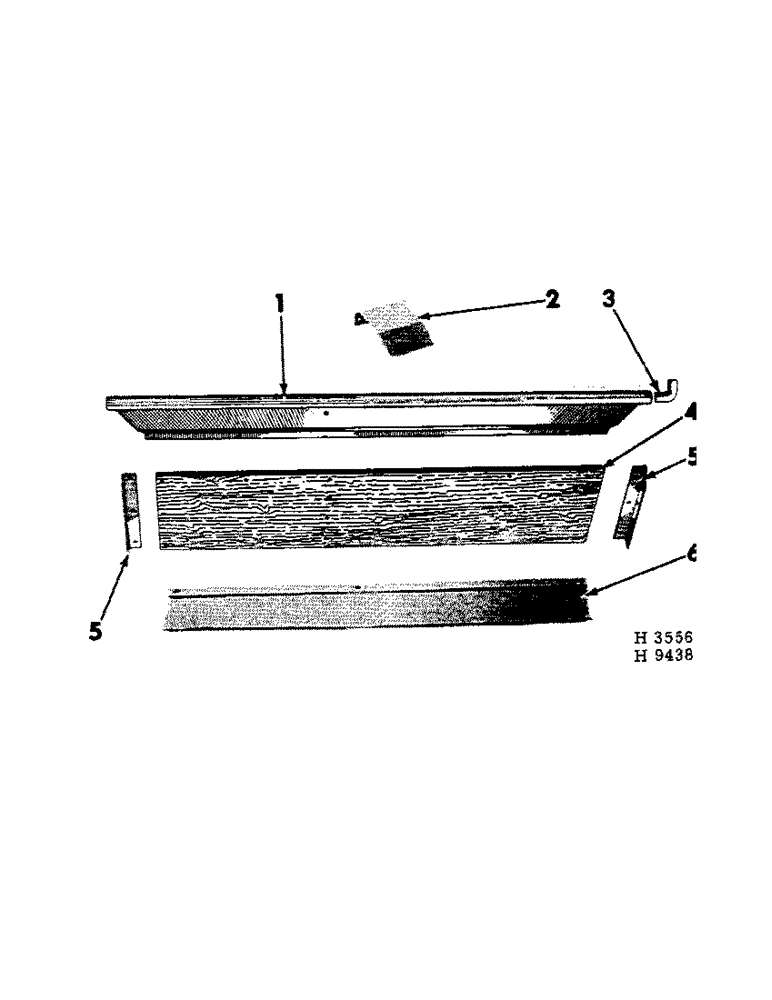

Запчасти Case IH 125 (D-04) - FRONT ENDGATE

1

613733R2

ROLL, front endgate top

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" cd-pltd crg

2шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg

3шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" crg

2шт.

Q1505

WASHER

WASH., 13/32 x 1 x 16 ga

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

2

609269R1

SHIELD, rope control trip lever

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

612963R1

FILLER, top roll corner

2шт.

4

613732R1

BOARD, front endgate

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" crg

2шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

619621R1

ANGLE, endgate support LH

1шт.

5

619622R1

ANGLE, endgate support RH

1шт.

19480R1

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg

6шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

W/NUT, 3/8 x 1-1/2" 1-1/2" cd-pltd mach (RH)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (6-LH; 7-RH) 3/8"

1шт.

6

612957R11

CANVAS, front endgate

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

W/NUT, 3/8 x 1-1/4" cd-pltd crg

1шт.

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd crg

2шт.

619856R1

WASHER

WASH., 13/32 x 1 x 16 ga cd-pltd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
