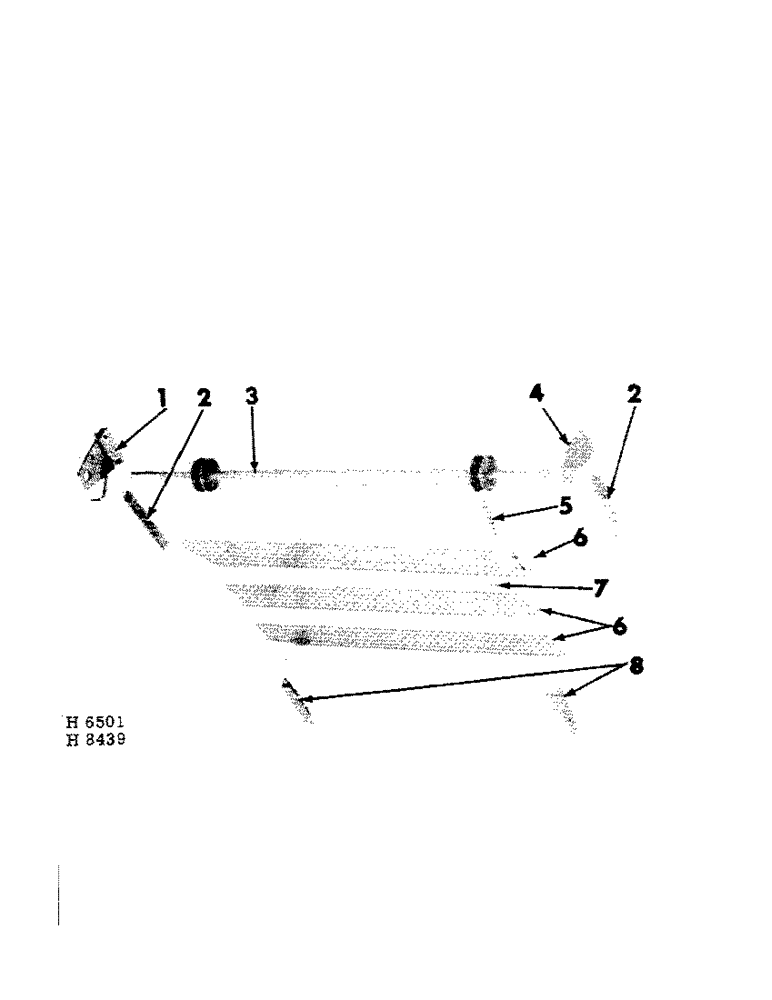

Запчасти Case IH 125 (D-04[A]) - REAR ENDGATE, LIQUID MANURE

1

612954R92

BRACKET, endgate support RH, Serial Range: (prior-1964)

1шт.

1

608411R91

BRACKET, endgate support RH (1964 & since)

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT W/NUT, 7/16 x 1" crg

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

2

612935R1

STRAP, endgate support

2шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg

2шт.

19480R1

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

612933R21

SHAFT, endgate

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

2шт.

Q3482

WASHER

WASH., 1-5/32 x 1-3/4 x 11 ga

1шт.

4

612937R2

BRACKET, endgate shaft LH

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT W/NUT, 7/16 x 1" crg

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

CHAIN, endgate lift (order 1-CS-34, 10 ft chain reduce to 23 links)

1шт.

Q3516

PIN

1/4 x 2" std-hd dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

6

612953R91

CROSSMEMBER, endgate support

1шт.

6

612944R1

CROSSMEMBER, endgate centre

2шт.

6

612945R1

CROSSMEMBER, endgate bottom

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

7

612938R1

SPACER, endgate chain

8шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

8

612947R1

ANGLE, endgate stop LH

1шт.

8

612948R1

ANGLE, endgate stop RH

1шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16 x 1-1/8" crg (RH)

1шт.

19577R1

BOLT

W/NUT, 5/16 x 1-1/8" cd-pltd crg

2шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg (LH)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
